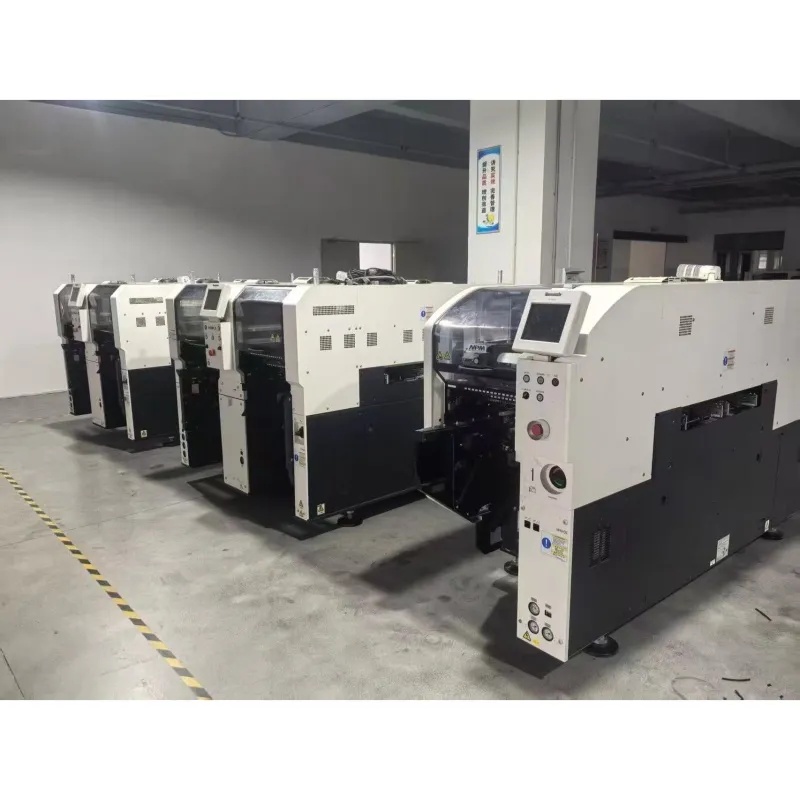

Panasonic Modular Chip Mounter NPM-DX NM-EJM8D

Panasonic Modular Chip Mounter NPM-DX NM-EJM8D

Feature

Maximum Speed : 184.800 cph
16-nozzle Head X 4 : 46.200 + 46.200 + 46.200 + 46.200 cph
8-nozzle Head X 4 : 24.000 + : 24.000 +: 24.000 + : 24.000 cph
4-nozzle Head X 4 : 8.500 + 8.500 + 8.500 + 8.500 cph
Component dimensions
16-nozzle Head : 03015 /0402 chip to L 6 × W 6 × T 3
8-nozzle Head : 0402 chip to L 45 x W 45 or L 100 x W 40 x T 12
4-nozzle Head : 0603 chip to L 120 x W 90 or L 150 x W 25 x T 30
Placement Accuracy
16-nozzle Head : ±25μm / chip
8-nozzle Head : ±25μm / chip
4-nozzle Head : ±20 μm / chip
PCB Dimensions
Dual-lane mode : L 510 mm × W 300 mm
Single-lane mode : L 510 × W 590 mm
Feeder Capacity
Max. 136（4-8 mm tape reel）

Add to Inquiry Cart

Our Services

We go beyond delivering powerful machinery to provide a complete partnership built on expertise and unwavering support. Our service ecosystem is designed to ensure maximum uptime, productivity, and return on your investment.

1.Pre-Sales Technical Support

1.1 Technical consultation & line layout planning 1.2 Demo machine testing with customer materials 1.3 Pre-sales training for technical team

2. Delivery & Commissioning

2.1 Professional installation & calibration 2.2 Parameter optimization for specific PCBs 2.3 Trial production validation 2.4 Operator training (SOP, maintenance, troubleshooting) 2.5 Acceptance test with performance verification

3. After-Sales Support

3.1 1-year standard warranty (extendable) 3.2 7×24 hotline, 4-hour emergency response 3.3Scheduled preventive maintenance (quarterly/half-yearly) 3.4 Genuine spare parts supply 3.5 Remote diagnosis & software updates

4. Value-Added Services (Optional)

4.1 Performance upgrades (software/hardware) 4.2 Production efficiency optimization analysis 4.3 Advanced technical training programs 4.4 Extended warranty (2-3 years) 4.5 Equipment relocation service

Our Promise

We are dedicated to being a true partner in your success, providing the tools, knowledge, and continuous support necessary to keep your projects moving forward efficiently and profitably.
