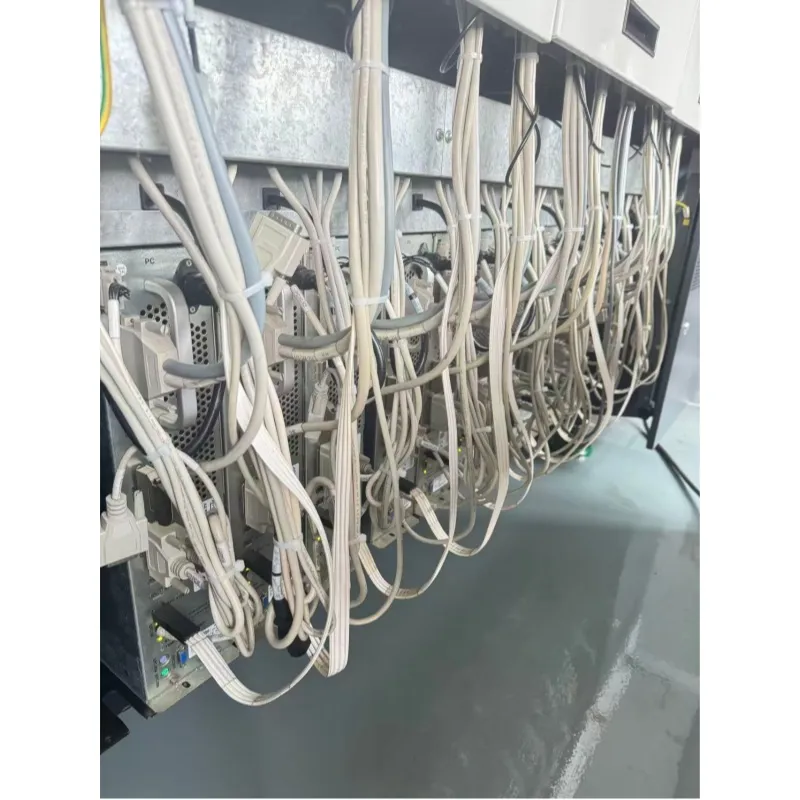

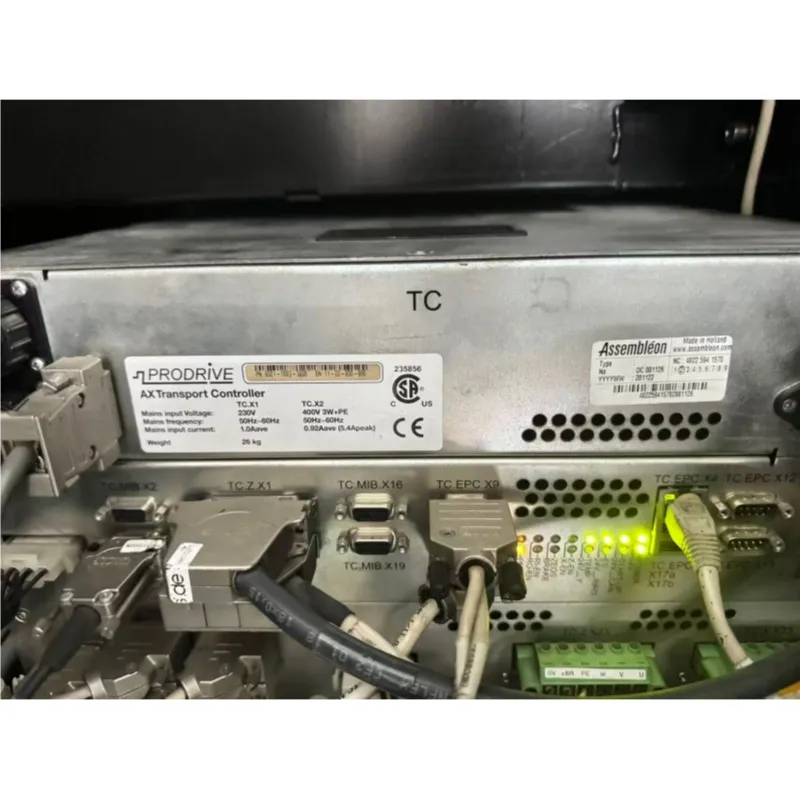

Assembleon SMT Machine AX301
Assembléon AX-Series Modular Placement Platform
The Assembléon AX-Series pick and placement platform comprises three advanced modular models: the AX-301, AX-501, and AX-201. Designed for ultimate flexibility, these fully modular machines ensure a seamless, high-efficiency fit when combined in a complete SMT production line.
High-Speed & High-Precision Models: AX-301 & AX-501
- Scalable Output: Delivers scalable placement rates up to 110,000 components/hour (IPC9850).
- Exceptional Accuracy: Maintains an outstanding accuracy of 40µm @ CpK > 1.0 even at maximum speeds.
- Wide Component Range: Handles everything from ultra-miniature 01005 chips at full speed up to 45mm square components.
- Flexible Feeding Capacity: Equipped with feeder trolleys providing up to 260 x 8mm pick positions, plus tray trolley support for an additional 47 trays.
Odd-Form & Fine-Pitch Specialist: AX-201
The AX platform is fully expandable with the modular AX-201, engineered specifically for odd-form ICs and fine-pitch components, including ceramic BGAs and high-reflection connectors.
- Placement speed up to 11,000 components/hour (IPC9850).
- High-precision placement accuracy of 20µm @ CpK > 1.0.
- Achieves ultra-low defects at single-digit DpM (Defects per Million).
Advanced Insertion & Force Control
Both odd-form and through-hole components—up to 165mm in length and 40mm in height—can be placed with precise programmable force control ranging from 0.9N to 40N for challenging snap-in parts. Comprehensive feeding options include stack tube, radial, bowl feeder, direct die, waffle-pack, GPAX, and custom solutions.
Assembléon AX-301 SMT Machine Testing Video
The AX Platform Features
Modular Platform
- Allows the platform to be configured for the required output while maintaining full feeder availability.
- Expandable output (5K), depending on line solution.
- Enables product changeovers in minutes for known boards.
- No accuracy calibration required.
Component Capability
- Covers 0.4 x 0.2mm (01005) up to 45 x 45mm or even 165mm long and 40mm tall.
- A range of placement heads and component alignment methods can be used for optimized component placement.
- Laser alignment can be used for small components at the highest speed and accuracy.
- Delivers placement accuracy down to 20 micron (CpK > 1.00).
Placement Heads
- Multiple heads available for optimal pick and place performance.
- Programmable placement force available from 0.9 to 40 N.
- Automatic correction for component thickness variation.
- Automatic correction for board height variation (e.g., warpage).
- Placement quality is assured by component sensing from pick to place.
Board Transport
- Features automated width and thickness adjustment of edge clamped boards.
- Integrated run-in and run-out section.
- Is left-to-right or right-to-left.
- SMEMA or Japanese height.
Feeding Platform
- Trolleys allow fast exchange of feeders.
- Stationary feeders allow tape replenishment during production.
- Adaptive pick correction assures maximum pick performance.
- Capable of handling 13" reels, up to 22".
Software
- CAD import and best-in-class program generation for (balanced) lines.
- Zero Defect setup system.
- Traceability data generation for component tracking.
- Performance data generation for machine performance monitoring.
AX-Series Technical Specifications
| Features / Models | AX-501 | AX-301 | AX-201 |
|---|---|---|---|
| Max output [CpM] | 150.000 | 90.000 | 18.000 |
| IPC output [CpM] | 110.000 | 70.000 | 11.500 |
| Highest accuracy class | 40µm, Cpk>1.00 | 40µm, Cpk>1.00 | 20µm, Cpk>1.00 |
| Interspacing | 80µm | 80µm | 80µm |
| Pick performance | 99,9 % *¹ | 99,9 % *¹ | 99,9 % *¹ |
| Placement quality | < 20 PPM | < 20 PPM | < 20 PPM |
| Technical Uptime | > 99.4% *² | > 99.4% *² | > 99.4% |
| Lifetime toolbit | 2-4 Mio placements (depending on type) |
2-4 Mio placements (depending on type) |
2-4 Mio placements (depending on type) |
| Component range | SMD components 0.4 x 0.2mm (01005) to 45 x 45mm |
SMD components 0.4 x 0.2mm (01005) to 45 x 45mm |
Components 0.4 x 0.2mm (01005) to 45 x 45mm or 66 x 23mm 165 x 45mm for odd form components |
| Feeding positions [# x 8mm] | 260 Using twin tape 130 Using single tape 47 Jedec trays |
156 Using twin tape 78 Using single tape 47 Jedec trays |
212 Using twin tape (PH-DV) 106 Using single tape (PH-DV) 376 Jedec trays |
| Feeding types | (Twin-) tape, (twin-) bulk, stick, tray, etc. | (Twin-) tape, (twin-) bulk, stick, tray, etc. | Tape, stick, tray, wafflepack, stack tube GPAX, radial, direct die, etc |
| Programmable placement force | 1.5N to 8N | 1.5N to 8N | 0.9 to 40N, lower forces with restrictions |
| Board range min (L x W) | 50 x 50mm 50 x 25mm optional |
50 x 50mm 50 x 25mm optional |
50 x 50mm 50 x 25mm optional |
| Board range max (L x W) | 515 x 390mm 515 x 457mm optional |
475 x 390mm 475 x 457mm optional |
515 x 457mm |
| Board transport direction | Standard left to right Optional right to left |
Standard left to right Optional right to left |
Standard left to right Optional right to left |
| Power supply | 200-480V 3-phase 47-63Hz, 7 kVA |
200-480V 3-phase 47-63Hz, 5 kVA |
200-480V 3-phase 47-63Hz, 7 kVA |
| Air supply | 6-8 bar, 230NI/min (tape feeding only) 6-8 bar, 290NI/min (Tape and bulk feeding) |
6-8 bar, 150NI/min (tape feeding only) 6-8 bar, 185NI/min (Tape and bulk feeding) |
6-8bar, 190NI/min |
| Dimensions (incl. trolleys) (L x W x H) Front side feeding |
3720x2285x1290mm Total 8.5 m² |
2760x2285x1290mm Total 6.3 m² |
1850x2240x1550mm Total 4.1 m² |
| Weight (excl trolleys) | <3200kg | <2500kg | <1900kg |
| Noise | <72 dB(A) @1m distance | <72 dB(A) @1m distance | <72 dB(A) @1m distance |
| Applicable standards |
|
||
