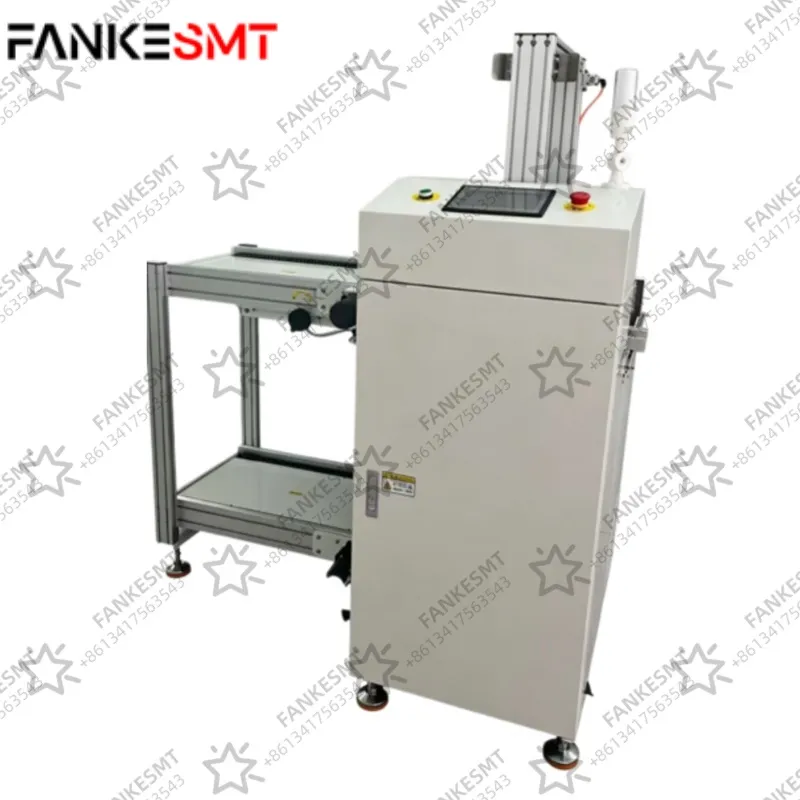

Automatic PCB Magazine Loader Overview

The Automatic PCB Loader stores PCBs/PCBAs using magazine slot intervals and systematically feeds boards out one by one via a synchronized elevating platform and pneumatic pusher mechanism, realizing fully automated board loading. We offer four standard model sizes—250, 330, 390, and 460—to match your specific product dimensions, with custom magazines and machine configurations available upon request.

Operation Workflow:

Operators manually load individual PCBs/PCBAs into the magazine, then place the loaded magazine onto the infeed conveyor:

Infeed Transfer: The loaded magazine is driven by the cable carrier (tank chain) power transmission system into the lifting platform.
Elevating & Pushing: The elevating platform steps upward to align the magazine with the pusher mechanism, which dispenses the PCBs/PCBAs one by one according to system commands.
Outfeed & Recycling: Once emptied, the empty magazine is transferred via the outfeed cable carrier system to the exit position for manual removal.
Cycle Reset: The elevating platform descends back to the infeed position to receive the next loaded magazine, seamlessly repeating the automated cycle.

Add to Inquiry Cart

Machine Features

PLC Programmable Control: Managed by an advanced PLC system for stable and reliable operation.
User-Friendly HMI: Control panel features a touchscreen with light-touch membrane switches for easier operation.
Precision Elevating Drive: Powered by a 90W brake motor driving a precision ballscrew for step-by-step magazine lifting.
Specialized Guideways & Chains: Equipped with custom aluminum extruded guide rails and dedicated "thousand-bird" type plastic chains.
Constant-Speed Conveyor Motor: The conveyor belt is driven by a reliable 15W constant-speed motor.
Pneumatic Magazine Clamping: Magazine clamping is executed via a pneumatic cylinder, ensuring a secure and firm hold.
Dual-Protection Elevator Safety: Vertical movement features working sensors and safety sensors, providing dual-layer protection for magazines.
Adjustable Pitch Settings: Pitch can be configured into 4 selectable options (10, 20, 30, 40mm).
Automatic Fault Diagnosis: Features an automatic error code display function for quick troubleshooting.
Alarm & Status Indication: Built-in automatic alarm function equipped with a 3-color tower light and buzzer for clear status monitoring.
Standard SMEMA Interface: Comes with standard communication signals for seamless online linkage with other peripheral equipment.
Standard Accessories: Includes a complete electrical control box set and a 3-color status indicator tower light.

Technical Specifications

Model / Parameters	250	330	390	460
PCB Size (L × W) Range	50×50 - 350×250 mm	50×50 - 460×330 mm	50×50 - 530×390 mm	50×50 - 530×460 mm
Machine Dimensions (L × W × H)	1200×830×1350 mm	1450×910×1350 mm	1600×970×1350 mm	1650×1040×1350 mm
Magazine Size (L × W × H)	355×320×563 mm	460×400×565 mm	535×460×565 mm	535×530×565 mm
Machine Weight	Approx. 120 Kg	Approx. 150 Kg	Approx. 170 Kg	Approx. 200 Kg
Loading Time	≤ 6 seconds
Transfer Direction	Left to Right or Right to Left (Optional, specify upon order)
Elevating Mechanism	AC Brake Motor + Gear Rack (Optional: Stepper Motor with Brake & Gearless Rack)
Magazine Changeover Time	< 30 seconds
Air Pressure & Consumption	4–6 bar, Max. 10 L/min
Min. PCB Thickness	0.4 mm
Pushing Mechanism	Pneumatic Cylinder Pusher
Transfer Height	900 ± 30 mm (or customized)
Power Supply & Load	220V AC (or customized), Single Phase, Max. 300 VA
Full-Load Storage Capacity	50 Boards
