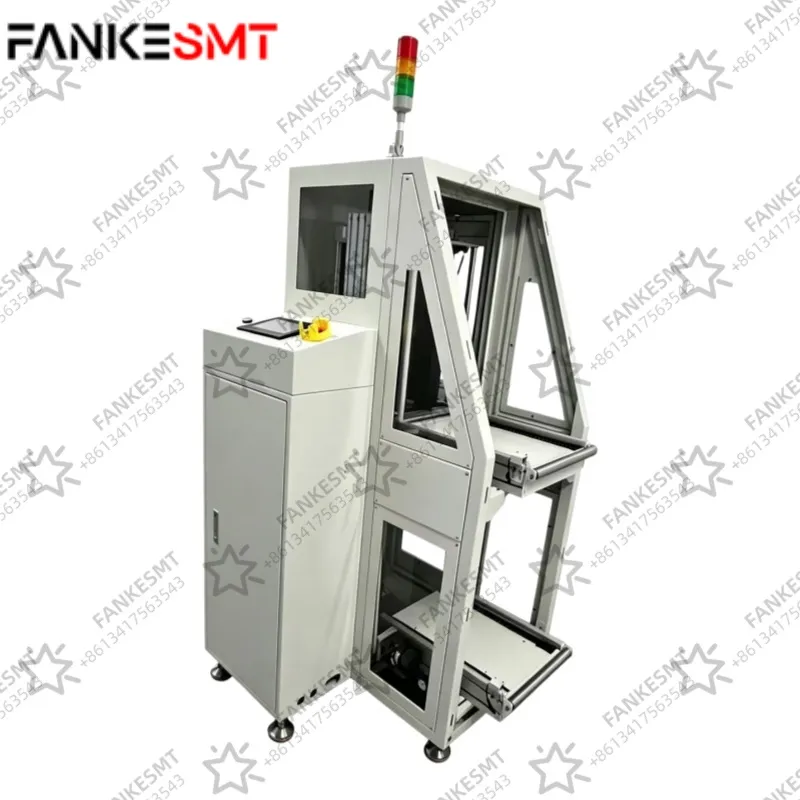

Automatic PCB Magazine Unloader With Cover Overview

The Automatic PCB Unloader stores PCBs/PCBAs using magazine slot intervals and systematically receives incoming boards one by one via a synchronized elevating platform and motorized pusher mechanism, realizing fully automated board unloading. We offer four standard model sizes—250, 330, 390, and 460—to match your specific product dimensions, with custom magazines and machine configurations available upon request.

Operation Workflow:

Operators place empty magazines (without PCBs/PCBAs) onto the infeed conveyor:

Infeed Transfer: The empty magazine is driven by the cable carrier (tank chain) power transmission system into the lifting platform for step-by-step descending.
Pushing & Storing: The motorized pusher systematically pushes incoming PCBs/PCBAs into the magazine slot by slot until it is fully filled.
Outfeed & Recycling: Once fully loaded, the magazine is transferred via the outfeed cable carrier transmission system to the exit position for manual removal.
Cycle Reset: After the loaded magazine is discharged, the elevating platform ascends back to the infeed position to receive the next empty magazine, seamlessly repeating the automated cycle.

Add to Inquiry Cart

Machine Features

PLC Programmable Control: Managed by an advanced PLC system for stable and reliable operation.
User-Friendly HMI: Control panel features a touchscreen with light-touch membrane switches for easier operation.
Precision Elevating Drive: Powered by a 90W brake motor driving a precision ballscrew for step-by-step magazine lifting.
Specialized Guideways & Chains: Equipped with custom aluminum extruded guide rails and dedicated "thousand-bird" type plastic chains.
Constant-Speed Conveyor Motor: The conveyor belt is driven by a reliable 15W constant-speed motor.
Pneumatic Magazine Clamping: Magazine clamping is executed via a pneumatic cylinder, ensuring a secure and firm hold.
Dual-Protection Elevator Safety: Vertical movement features working sensors and safety sensors, providing dual-layer protection for magazines.
Stepping Conveyor Motor: The conveyor belt motor utilizes a variable-speed stepping motor for precise control.
Integrated Pusher Conveyor: Comes complete with a 600mm–900mm long built-in pusher conveyor section.
Adjustable Pitch Settings: Pitch can be configured into 4 selectable options (10, 20, 30, 40mm).
Automatic Fault Diagnosis: Features an automatic error code display function for quick troubleshooting.
Alarm & Status Indication: Built-in automatic alarm function equipped with a 3-color tower light and buzzer for clear status monitoring.
Standard SMEMA Interface: Comes with standard communication signals for seamless online linkage with other peripheral equipment.
Standard Accessories: Includes a complete electrical control box set and a 3-color status indicator tower light.
