Automatic Nozzle Cleaning Machine Overview
The Fully Automatic Nozzle Cleaning Machine adopts a multi-nozzle spray cleaning method, utilizing fluid dynamics to atomize water into extremely fine mist. Driven by sonic speed, it generates powerful kinetic energy directed onto the nozzles, creating a continuous energy field above the components to shatter surface and internal contamination. The system requires no chemical solvents and operates entirely using industrial pure water.

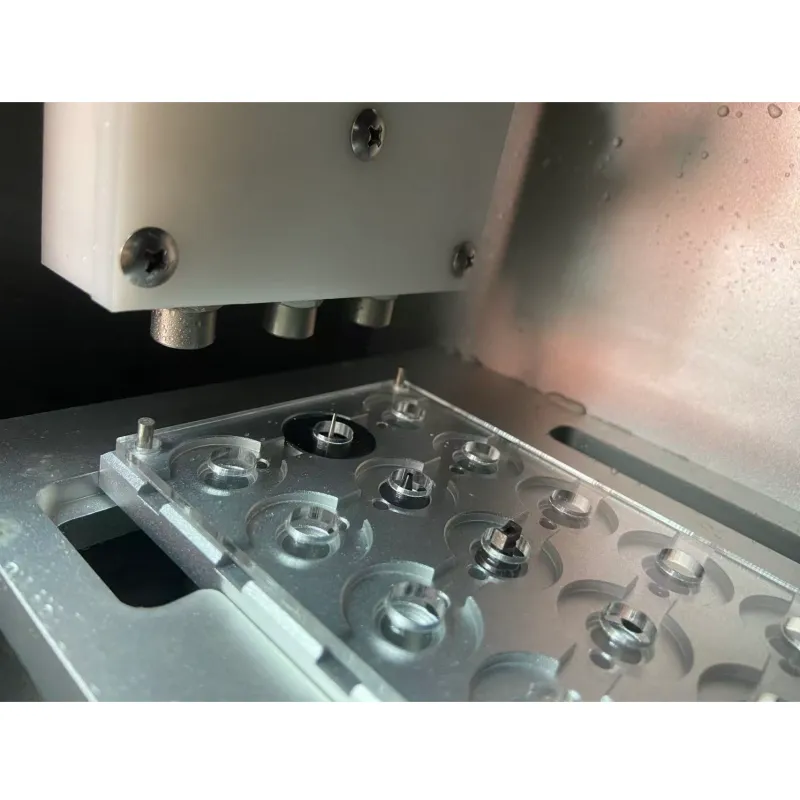

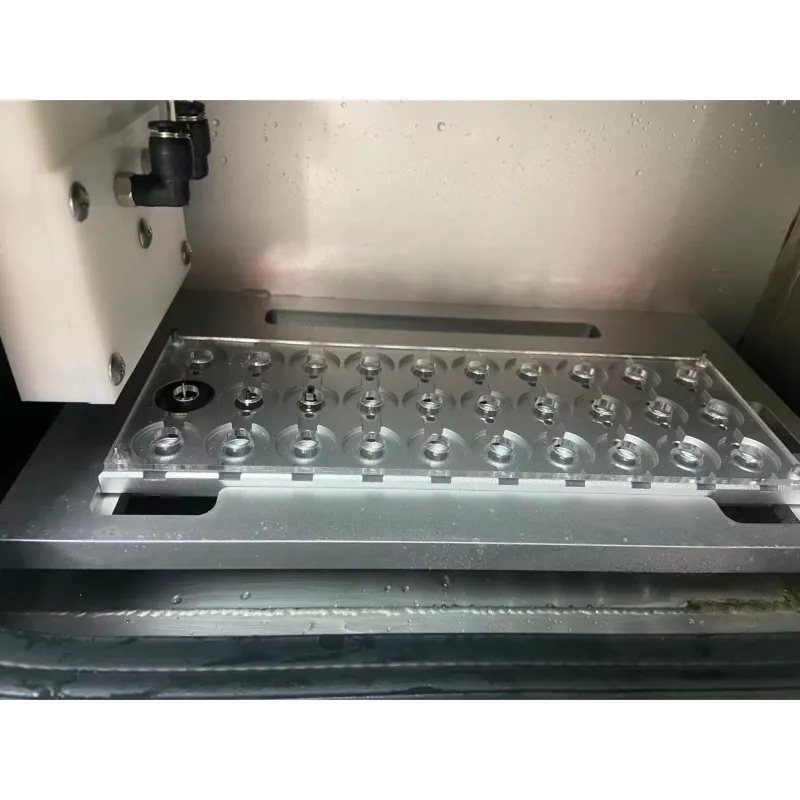

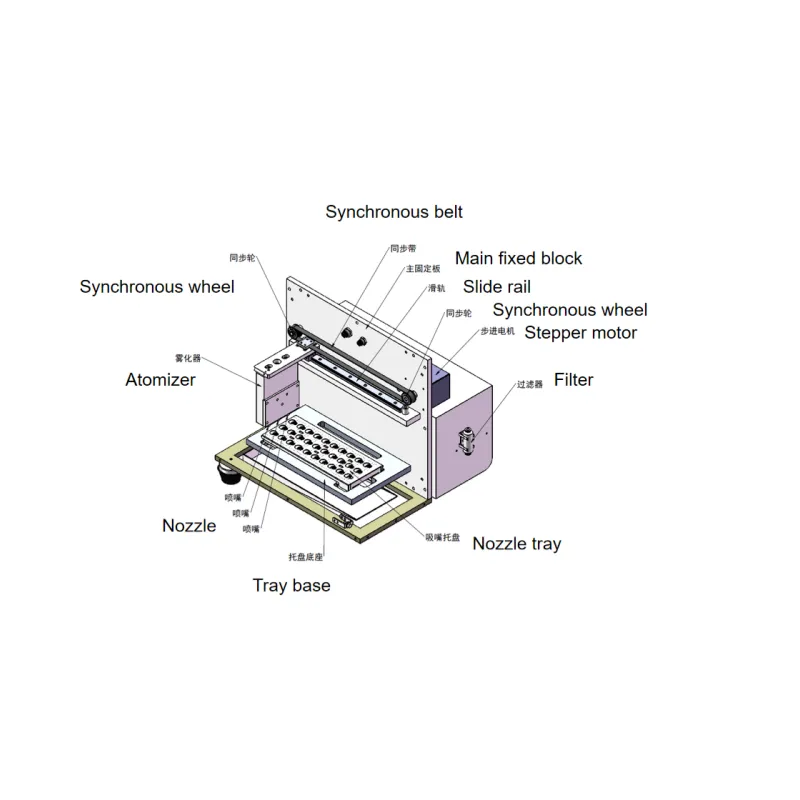

Cleaning Process: The machine operates fully automatically, cleaning up to 30 nozzles per cycle. Different fixture trays are provided to accommodate various nozzle types, ensuring compatibility with all placement machine nozzle models. After washing, the nozzles are automatically blow-dried using compressed air.
Inspection: Simply take out the fixture tray and place it onto a dedicated nozzle inspection device to observe the genuine cleanliness condition of the washed nozzles.
Working Principle
- High-Pressure Jet Technology: Continuous pressurization atomizes water into fine mist particles (3-10 um), enabling deep cleaning of stubborn dirt within tiny nozzle aperture inner walls.
- Pulsed Kinetic Power: Delivers powerful pulsed kinetic energy sprayed onto the nozzles at sonic speed (V=360 m/s) with a pulse frequency of up to 30 times per second, creating a sustained impact field above the nozzles to shatter internal and surface contamination.
Machine Features
- High Efficiency: Cleans up to 30 nozzles per cycle with short cleaning times and high throughput.
- Replaces Manual Cleaning: Overcomes traditional ultrasonic cleaning limitations and significantly reduces pick-and-place component dropping/throwing rates.
- Sonic Spray Atomization: Thoroughly dissolves and removes impurities that conventional ultrasonic cleaners cannot reach.
- Aperture Adaptation: Maintains exceptional cleaning performance even as nozzle hole diameters become increasingly smaller.
- Extended Nozzle Lifespan: Provides deeper cleaning, directly extending nozzle service life with a cleaning success rate of over 99%.
- Multi-Language Interface: User-friendly operation with convenient switching between Chinese and English.
- Eco-Friendly Operation: Requires zero chemical detergents; operates entirely using eco-friendly pure water or deionized water.
- Touch Screen Control: Equipped with an intuitive touch screen interface for simple and straightforward operation.
- Universal Compatibility: Suitable for all SMT placement machine nozzles, with especially remarkable cleaning results for cross-shaped, I-shaped, and special-shaped nozzles.
Automatic Nozzle Cleaning Machine Technical Specifications
| Item | Specifications / Parameters | Remarks |
|---|---|---|
| Machine Dimensions | L × W × H | 440 × 500 × 530 mm |
| Machine Weight | Weight | 35 KG |
| Cleaning Fluid | Fluid Type | Industrial Pure Water |
| Consumption | ≤ 100 ml/min | |
| Operating Fluid | Air Source | Compressed Air |
| Operating Pressure Range | 0.5 - 0.65 MPa (During cleaning) | |
| Spray Pressure | ≤ 0.4 MPa | |
| Air Consumption | Below 500 NL/min | |
| Power Supply | Voltage | AC 220V 50Hz |
| Rated Power Consumption | Max. 100W | |
| Nozzle Fixture Tray | Specifications | 30 Positions |
