AX7900 X-RAY Machine
The Fankesmt Industrial X-Ray Inspection System delivers high-resolution non-destructive testing (NDT) and precision defect analysis. Engineered for advanced electronics manufacturing and industrial quality control, our X-ray equipment ensures absolute structural integrity and reliable defect detection across multi-industry applications.

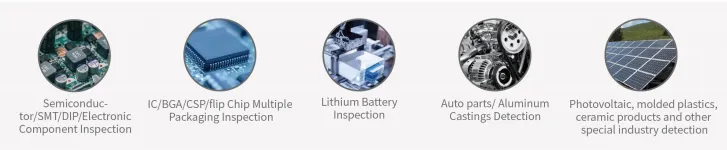

Primary Application Fields
- Semiconductor, SMT, DIP, and Electronic Component Inspection: Detects internal soldering flaws, bridging, and structural defects in complex circuit assemblies.
- IC, BGA, CSP, and Flip Chip Multiple Packaging Inspection: Delivers high-magnification sub-surface imaging to analyze hidden solder joints, micro-voids, and package integrity.
- Lithium Battery Inspection: Evaluates internal electrode alignment, tab welding quality, and separator structures for enhanced energy storage safety.
- Auto Parts and Aluminum Castings Detection: Identifies internal porosities, cracks, structural blowholes, and casting flaws in critical automotive components.
- Photovoltaic, Molded Plastics, Ceramic Products and Special Industries: Provides customized non-destructive testing solutions for specialized industrial materials and solar photovoltaic manufacturing.
💡 Looking for bulk orders or specialized SMT one-stop solutions? Contact our 24/7 technical support team today for a fast quote!
-
+
Add to Inquiry Cart
Application Fields

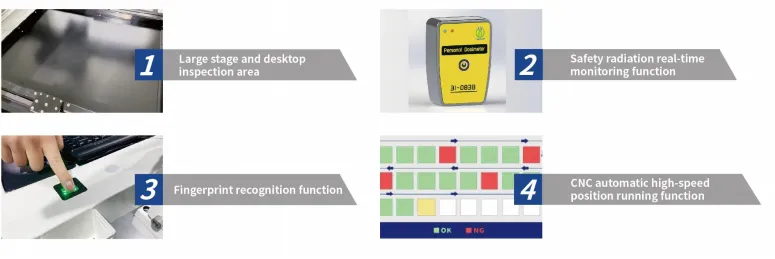

Functions and Features

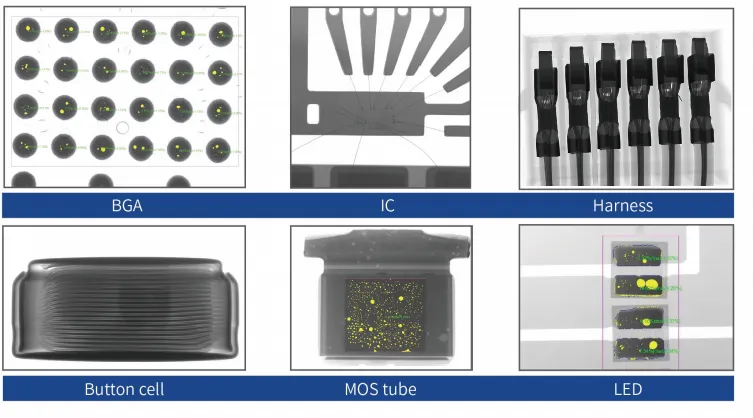

Inspection Images
Technical Parameters and Specifications
System Summary
| Dimension | ≈1220mm*1280mm*1615mm | Packing Weight | ≈1250kg |
| Machine Weight | ≈1100kg | Power Supply | AC 220V 50Hz/60Hz |
| Plywood Packing Size | ≈1700(W)*1400(D)*1800(H)mm | Power Consumption | 1.0kW |
X-Ray Tube
| Tube Type | Sealed | Max. Power | 8W |
| Voltage | 90kV | Focus Spot Size | 5μm |
Image Detector
| Detector | Flat Panel Detector (FPD) | Pixel Size | 84μm |
| Detection Area | 129*129[mm] | Frame Rates | Max 30fps |
| Pixel Matrix | 1536*1536[pixel] | System Magnification | 600X |
Software
| Navigation And Positioning | Quickly locate physical images | ||
| Automatic Calculation | Automatic bubble measurement for BGA, QFN and other packaged electronic components, support the output result report | ||
| CNC Automatic Inspection | Support single point and matrix addition, quickly generate the project, the result can be graphically | ||
| Information Display | Support real time process information of inspection | ||
| Diverse Measuring Tools | Support distance, Angle, diameter, polygon and other geometric measurements | ||
Motion Control System
| Movement Control | Mouse & Keyboard & Joystick |
| Max. Loading Area | 520*435[mm] |
| Max. Inspection Area | 460*400[mm] |
| XYZ Axis Travel (mm) | Light tube Z-axis 145, detector Z-axis 300 |
| Tilt and Rotation | Detector ±25° tilt, optional 360° rotating fixture |
Industrial PC
| Monitor | 24 "HD display |
| System OS | Windows 11 64-bit |
| Hard Disk | 1TB |
| RAM | 16G |
| CPU Model | i7 6 generation |
Other Features
| Door Open | Hand-operated door | X-Ray Safety | <1μSv/h |
| Fingerprint Recognition | Equipped with fingerprint recognition function, support password, fingerprint dual channel access | ||
| Safety Radiation Monitoring | Configure the energy monitoring system, visualize the ray energy state | ||
