AX9100 X-RAY Machine
The Fankesmt Industrial X-Ray Inspection System delivers high-resolution non-destructive testing (NDT) and precision defect analysis. Engineered for advanced electronics manufacturing and industrial quality control, our X-ray equipment ensures absolute structural integrity and reliable defect detection across multi-industry applications.
Primary Application Fields
- Semiconductor, SMT, DIP, and Electronic Component Inspection: Detects internal soldering flaws, bridging, and structural defects in complex circuit assemblies.
- IC, BGA, CSP, and Flip Chip Multiple Packaging Inspection: Delivers high-magnification sub-surface imaging to analyze hidden solder joints, micro-voids, and package integrity.
- Lithium Battery Inspection: Evaluates internal electrode alignment, tab welding quality, and separator structures for enhanced energy storage safety.
- Auto Parts and Aluminum Castings Detection: Identifies internal porosities, cracks, structural blowholes, and casting flaws in critical automotive components.
- Photovoltaic, Molded Plastics, Ceramic Products and Special Industries: Provides customized non-destructive testing solutions for specialized industrial materials and solar photovoltaic manufacturing.
💡 Looking for bulk orders or specialized SMT one-stop solutions? Contact our 24/7 technical support team today for a fast quote!
-
+
Add to Inquiry Cart
Application Fields

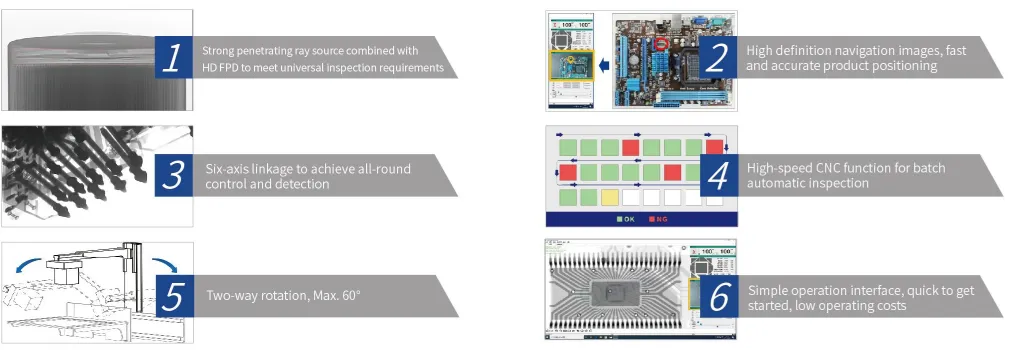

Functions and Features

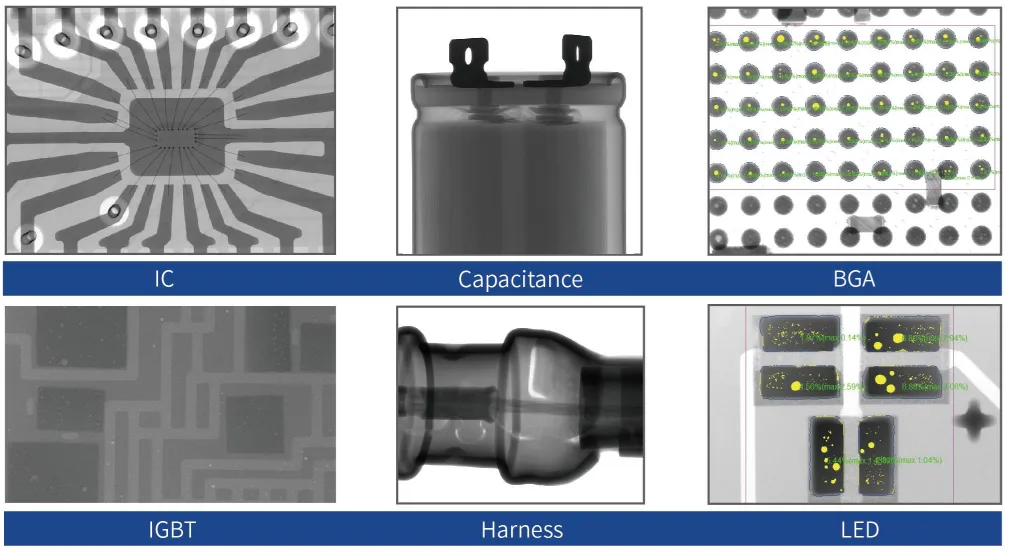

Inspection Images
Technical Parameters and Specifications
Overall condition
| Dimension | ≈1470(W)*1410(D)*1805(H)mm | Packing Weight | ≈2300kg |
| Machine Weight | ≈2100kg | Power Supply | 220AC/50Hz |
| Plywood Packing Size | ≈1650(W)*2050(D)*2050(H)mm | Power Consumption | 3.5kW |
| Tube Type | Sealed | Max. Power | 65W |
| Voltage | 130kV | Focus Spot Size | ≤7µm |
| Detector | Flat Panel Detector (FPD) | Pixel Size | ≤84µm |
| Detection Area | 129*129[mm] | Frame Rates | Max 30fps |
| Pixel Matrix | 1536*1536[pixel] | System Magnification | 1600X |
Software
| Point Tilt Follow Function | When the tilt axis is moved alone, the desktop automatically follows | ||
| Hyperdivision Algorithm | One-click Smart Upgrade the overall clarity of the image | ||
| Navigation And Positioning | Quickly locate physical images | ||
| Automatic Calculation | It can automatically measure the bubbles of BGA, QFN, IGBT and other components, and support the output result report | ||
| CNC Automatic Inspection | Support single point and matrix addition, quickly generate the project, the result can be graphically | ||
| Information Display | Support real time process information of inspection | ||
| Diverse Measuring Tools | Support distance, Angle, diameter, polygon and other geometric measurements | ||
Motion control system
| Movement Control | Mouse & Keyboard & Joystick |
| Max. Loading Area | 650*520[mm] |
| Max. Inspection Area | 500*450[mm] |
| Tilt and Rotation | Two-way rotation, Max. 60° |
| Table | 360° flat rotation (optional) |
Industrial PC
| Monitor | 24 "HD display |
| System OS | Windows 11 64-bit |
| Hard Disk | 1TB |
| RAM | 16G |
| CPU Model | i7 |
Other Features
| Door Open | Hand-operated door | X-Ray Safety | <1µSv/h |
