FK650 Pneumatic stencil cleaning machine
Key features include:
- Application Scope: Cleans diverse stencil types — SMT stainless steel mesh, copper mesh, wire mesh, microporous mesh, and wafer disks
- Energy Source: Exclusively uses compressed air, eliminating electrical components — ensuring intrinsic safety, no fire hazard, and suitability for explosive or high-ESD environments.
- Operation: Human-centered design with one-button start, enabling seamless, fully automatic execution of both cleaning and drying stages via controlled air pressure sequences.
- Fluid Management: Integrated closed-loop cleaning fluid recycling, minimizing consumption, waste, and operational cost. Low fluid loss enhances sustainability and process consistency.
- Automation Level: Fully pneumatic automation — no PLCs or electric actuators required; timing, sequencing, and pressure control are achieved via precision air logic valves and accumulators.
Cleaning Objects
Aimed at cleaning various types of stencils such as SMT steel mesh, copper mesh, wire mesh, microporous mesh, and wafer disks in the electronics industry; This equipment completely uses compressed air as energy source, does not use electricity, and does not have any fire hazards. It adopts humanized design and one-button operation to easily complete cleaning and drying work. It is a fully automatic operation from cleaning to drying process using air pressure. High-performance pneumatic fully automatic cleaning equipment; the cleaning fluid is recycled and the loss is low;
Internal Mobility Mechanism

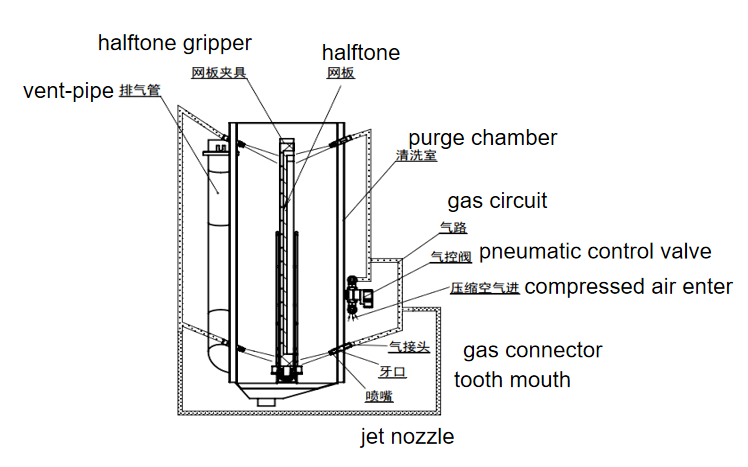

Schematic diagram of the steel mesh blow-drying principle: (side wall air intake for drying, gas-liquid path separation)
| Parameter Category | Specification |
| Applicable steel mesh size | L750 × W750 × H40 (mm) ×1PCS [Extra large sizes need to be customized] |
| Equipment dimensions | L1220×W1120×H1850 (mm) |
| Maximum volume of liquid tank | 60L×*2PCS |
| Optimum liquid usage | 40L×2PCS |
| Cleaning and rinsing method: | A set of double-sided spray bar nozzles moving left and right isobaric spray liquid for cleaning and rinsing |
| Drying method: | bilateral left and right moving compressed air knife air cutting + hot air drying |
| Cleaning fluid isolation time | 40S |
| Cleaning time | 2-5min(for reference only) |
| Rinse time | 1-3min(for reference only) |
| Drying time | 2-5min(for reference only) |
| Filtration system (first level) | First level filter: (filters impurities and labels) |
| Filtration system (secondary) | Secondary filter: (filters solder paste and rosin particles) |
| Cleaning liquid recovery filter (three-stage) | 5μm filter element (filters: solder paste, rosin, red gum and pollutants and other particles) |
| Rinsing liquid discharge filter (three-stage) | 5μm filter element (filters: solder paste, rosin, particles such as red glue and pollutants) |
| Liquid heating temperatureRoom | temperature 0~ 60℃ (temperature can be set) ) |
| Electrical external air source | 0.4～0.6 (Mpa) |
| Water source pressure | 0.2～0.3(Mpa) |
| Exhaust port size | Φ125×H25(mm) | Power supply AC380V 50HZ | AC380V 50HZ /Total power is about 25KW | Machine net weight: about | 580KG |
