FUJI SMT Part V12 Working Head
Specification Data
| Brand | FUJI |
| Part Number | UH03338 |
| Description | V12 Working Head |
| For | FUJI SMT NXT Machines |
Highlights:
Assured Quality
- Cost-Saving, Competitive Price
- Minimum Order Quantity: No Limit
- Fast Delivery: 5-7 Days
- Safety Delivery: Well protected package
- Services: 7/24 Guaranteed After-sales Service Service, Products Are Only The Beginning Of A Service, Not The End, Committed To Customer Satisfaction
- All Product Will Be Checked Carefully Before Shipment
- Providing Professional SMT One-stop Solutions
💡 Looking for bulk orders or specialized SMT one-stop solutions? Contact our 24/7 technical support team today for a fast quote!
-
+
Add to Inquiry Cart

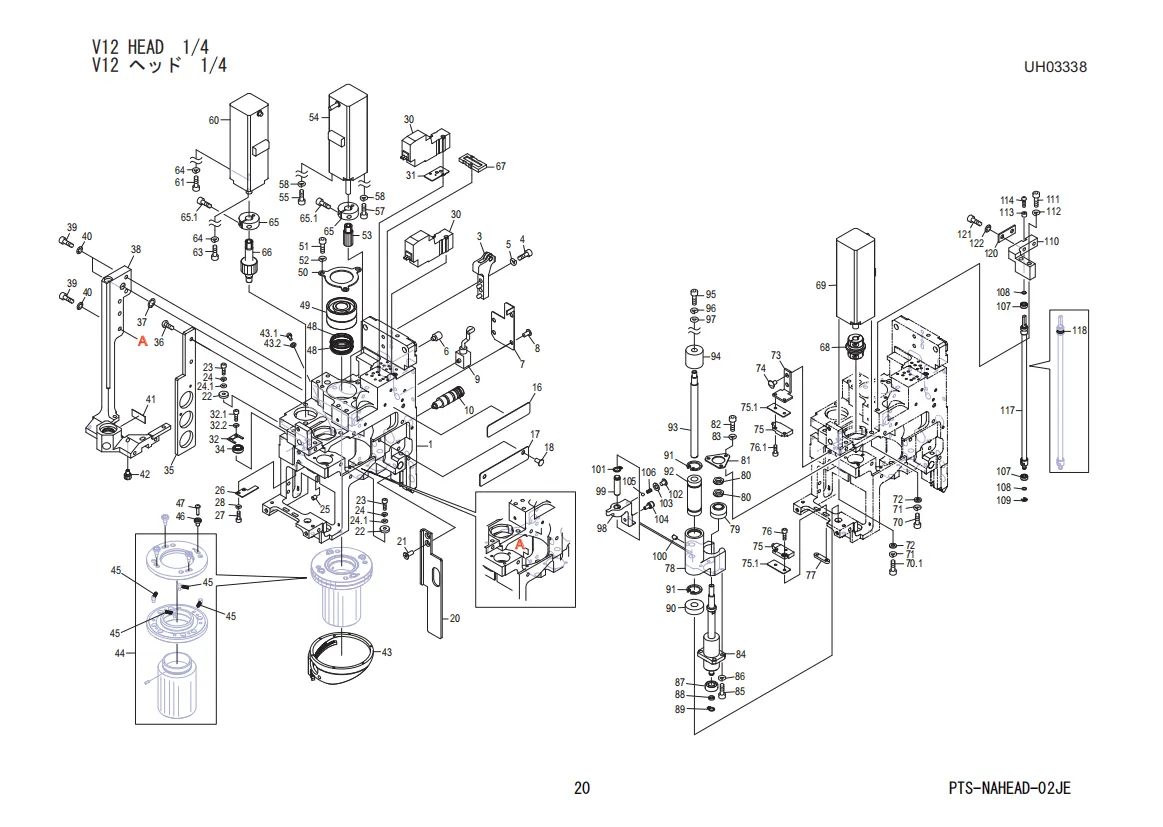

FUJI NXT V12 Head 1/4 - Spare Parts List
Complete spare parts breakdown for the V12 head assembly (Part 1/4).
×
| No. | Drg. No. & Code No. | QTY | Description |
|---|---|---|---|
| 1 | AA76E26 | 1 | BODY |
| 3 | AA06D10 | 1 | ROLLER |
| 4 | H5278A | 2 | BOLT, HEX SOCKET |
| 5 | W1021A | 2 | WASHER, LOCK |
| 6 | S1058B | 1 | SILENCER |
| 7 | PB00TE0 | 1 | COVER |
| 8 | K62149 | 4 | SCREW, C/R FLAT |
| 9 | XS00842 | 1 | SENSOR, PRESSURE |
| 10 | XB00763 | 1 | VALVE, PRESSURE REDUCING |
| 16 | PX08311 | 1 | SEAL, BAR CODE |
| 17 | PB99751 | 1 | COVER |
| 18 | K62149 | 2 | SCREW, C/R FLAT |
| 20 | PBOOWY5 | 1 | BKT |
| 21 | K5357T | 2 | SCREW, HEX SOCKET COUNTERSUNK |
| 22 | 2MGKHA008300 | 3 | WASHER |
| 23 | H5267A | 3 | BOLT, HEX SOCKET |
| 24 | W1020A | 3 | WASHER, LOCK |
| 24.1 | W1039K | 3 | WASHER, FLAT |
| 25 | PM07WHO | 1 | PIN, LOCATING |
| 26 | PBOB2G1 | 1 | RETAINER |
| 27 | H5265A | 2 | BOLT, HEX SOCKET |
| 28 | W1020A | 2 | WASHER, LOCK |
| 30 | H11352 | 2 | VALVE, SOL |
| 31 | 2MGKHA008101 | 1 | PLATE, ACRYLIC |
| 32 | 2MGKHA009500 | 1 | RETAINER, BEARING |
| 32.1 | H5265A | 2 | BOLT, HEX SOCKET |
| 32.2 | W1020A | 2 | WASHER, LOCK |
| 34 | H4900M | 1 | BEARING |
| 35 | PBOOTD4 | 1 | BKT |
| 36 | K5256A | 2 | SCREW, HEX SOCKET BUTTON |
| 37 | A51907 | 1 | O RING |
| 38 | 2MGKHA036100 | 1 | BLOCK |
| 39 | H5275A | 3 | BOLT, HEX SOCKET |
| 40 | W1010A | 3 | WASHER, CONICAL |
| 41 | PS05270 | 1 | SEAL |
| 42 | PM09NR3 | 1 | PIN, REFERENCE |
| 43 | 2MGKHA034705 | 1 | CAM, SLOT |
| 43.1 | PZ53012 | 1 | BOLT, HEX SOCKET |
| 43.2 | W1039F | 1 | WASHER, FLAT |
| 44 | PM07TM9 | 1 | GEAR |
| 45 | PZ33981 | 4 | SPRING |
| 46 | PM04893 | 4 | COLLAR |
| 47 | PZ39231 | 4 | SCREW, C/R PAN |
| 48 | H11796 | 2 | PACKING |
| 49 | H4207A | 1 | BEARING |
| 50 | PB95940 | 1 | RETAINER, BEARING |
| 51 | H5274A | 3 | BOLT, HEX SOCKET |
| 52 | W1021A | 3 | WASHER, LOCK |
| 53 | PM06FL6 | 1 | GEAR |
| 54 | XM01013 | 1 | MOTOR, AC SERVO |
| 55 | H5276A | 1 | BOLT, HEX SOCKET |
| 57 | H5277T | 1 | BOLT, HEX SOCKET |
| 58 | W1021A | 2 | WASHER, LOCK |
| 60 | XM00804 | 1 | MOTOR, AC SERVO |
| 61 | H5276A | 1 | BOLT, HEX SOCKET |
| 63 | H5277T | 1 | BOLT, HEX SOCKET |
| 64 | W1021A | 2 | WASHER, LOCK |
| 65 | PM76241 | 2 | COLLAR |
| 65.1 | H5275A | 2 | BOLT, HEX SOCKET |
| 66 | PM06FM6 | 1 | GEAR |
| 67 | H62140 | 1 | PLATE |
| 68 | XK04101 | 1 | COUPLING |
| 69 | XM00804 | 1 | MOTOR, AC SERVO |
| 70 | H5277A | 1 | BOLT, HEX SOCKET |
| 70.1 | H52626 | 1 | BOLT, HEX SOCKET |
| 71 | W1021A | 2 | WASHER, LOCK |
| 72 | S3244E | 2 | SPACER |
| 73 | PB99400 | 1 | BKT, SENSOR |
| 74 | K51710 | 2 | SCREW, C/R TRUSS |
| 75 | S61583 | 1 | SENSOR |
| 75.1 | 2MGKHE003402 | 2 | PLATE |
| 76 | H5267A | 2 | BOLT, HEX SOCKET |
| 76.1 | H5265A | 2 | BOLT, HEX SOCKET |
| 77 | PP01251 | 1 | NUT |
| 78 | 2MGKHA001401 | 1 | SLIDER |
| 79 | H4897A | 1 | BEARING |
| 80 | PM04723 | 2 | NUT |
| 81 | PB97201 | 1 | RETAINER, BEARING |
| 82 | H5265A | 3 | BOLT, HEX SOCKET |
| 83 | W1020A | 3 | WASHER, LOCK |
| 84 | XB03004 | 1 | BALL SCREW |
| 85 | H5268Z | 4 | BOLT, HEX SOCKET |
| 86 | W1020H | 4 | WASHER, LOCK |
| 87 | H4581B | 1 | BEARING, MINIATURE |
| 88 | PM04642 | 1 | COLLAR |
| 89 | S10267 | 1 | CIR-CLIP |
| 90 | PG04533 | 1 | STOPPER |
| 91 | S10015 | 2 | CIR-CLIP |
| 92 | H42740 | 1 | BEARING, SLIDE |
| 93 | PZ37112 | 1 | SHAFT |
| 94 | PG04522 | 1 | STOPPER |
| 95 | H5275A | 1 | BOLT, HEX SOCKET |
| 96 | W1021A | 1 | WASHER, LOCK |
| 97 | W1040R | 1 | WASHER, FLAT |
| 98 | PMOKOB2 | 1 | ARM |
| 99 | PMODCMO | 1 | PIN |
| 100 | N4019A | 1 | SCREW, HEX SOCKET SET |
| 101 | S1027A | 1 | CIR-CLIP |
| 102 | K52543 | 1 | SCREW, C/R FLAT |
| 103 | W1040R | 1 | WASHER, FLAT |
| 104 | K1089R | 1 | CAM FOLLOWER |
| 105 | H5065B | 1 | BALL, STEEL |
| 106 | PZ21491 | 1 | SPRING |
| 107 | K4228H | 2 | BEARING |
| 108 | PMOFKA1 | 2 | COLLAR |
| 109 | S1003D | 1 | CIR-CLIP |
| 110 | 2MGKHA022700 | 1 | BLOCK |
| 111 | H5280A | 2 | BOLT, HEX SOCKET |
| 112 | W1021A | 2 | WASHER, LOCK |
| 113 | PMOFKT1 | 1 | COLLAR |
| 114 | PZ53032 | 1 | SCREW, C/R PAN |
| 117 | PMOGAH2 | 1 | SHAFT |
| 118 | H1179B | 1 | PACKING |
| 120 | 2MGKHA022801 | 1 | PLATE |
| 121 | H5275A | 2 | BOLT, HEX SOCKET |
| 122 | W1010A | 2 | WASHER, CONICAL |

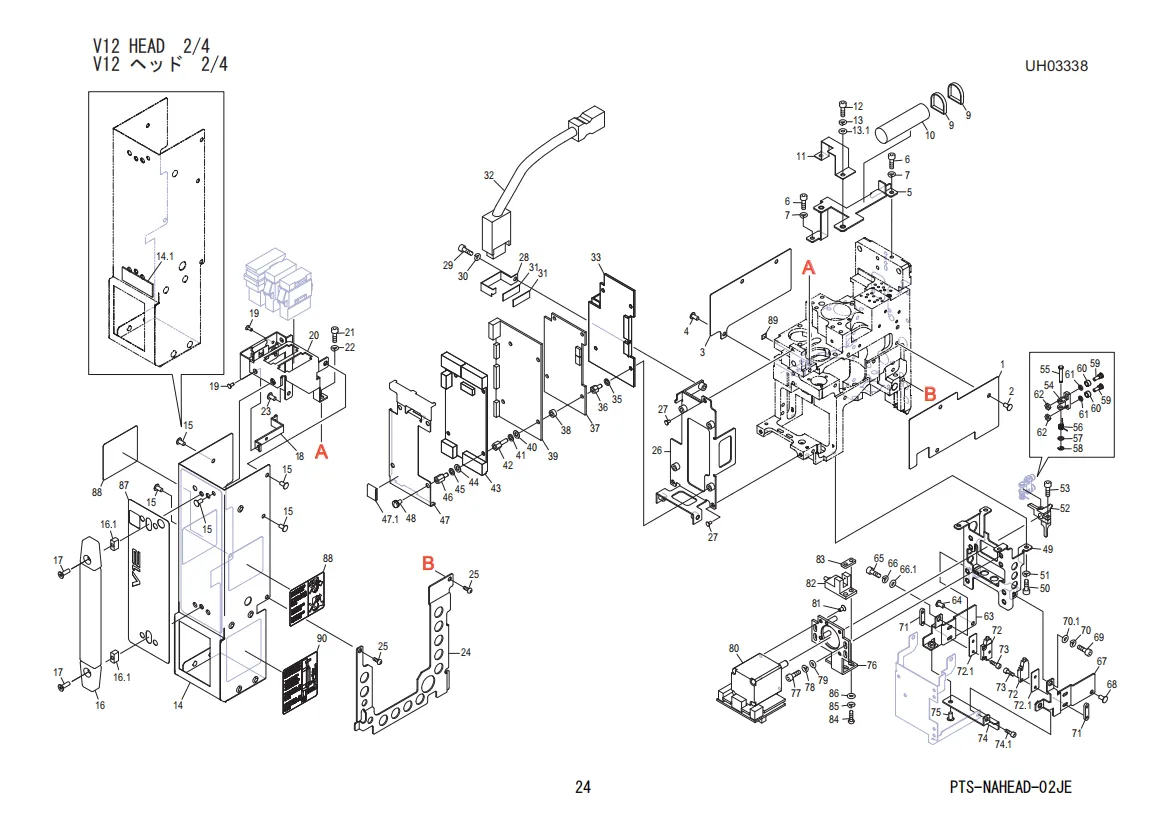

FUJI NXT V12 Head 2/4 - Spare Parts List
Complete spare parts breakdown for the V12 head assembly (Part 2/4).
×
| No. | Drg. No. & Code No. | QTY | Description |
|---|---|---|---|
| 1 | PBOOWZ5 | 1 | COVER |
| 2 | K62149 | 3 | SCREW, C/R FLAT |
| 3 | PB078H2 | 1 | COVER |
| 4 | K62149 | 3 | SCREW, C/R FLAT |
| 5 | PBOOTM4 | 1 | BKT |
| 6 | H5274A | 2 | BOLT, HEX SOCKET |
| 7 | W1021A | 2 | WASHER, LOCK |
| 9 | - | 2 | BAND, TIE |
| 10 | H1021H | 1 | BATTERY |
| 11 | PB07HL1 | 1 | RETAINER, WIRING |
| 12 | H5274A | 2 | BOLT, HEX SOCKET |
| 13 | W1021A | 2 | WASHER, LOCK |
| 13.1 | W1040R | 2 | WASHER, FLAT |
| 14 | PB073Y7 | 1 | COVER |
| 14.1 | PS03311 | 1 | SHEET |
| 15 | K62149 | 5 | SCREW, C/R FLAT |
| 16 | T50032 | 1 | HANDLE |
| 16.1 | PMOFTY1 | 2 | SPACER |
| 17 | K5358A | 2 | SCREW, HEX SOCKET COUNTERSUNK |
| 18 | PB00OW1 | 1 | BKT |
| 19 | K5169M | 2 | SCREW, C/R COUNTERSUNK |
| 20 | PBOOTK2 | 1 | COVER |
| 21 | H5274A | 1 | BOLT, HEX SOCKET |
| 22 | W1021A | 1 | WASHER, LOCK |
| 23 | K62149 | 2 | SCREW, C/R FLAT |
| 24 | 2MGKHA000103 | 1 | COVER |
| 25 | K5255T | 2 | SCREW, HEX SOCKET BUTTON |
| 26 | PB99535 | 1 | COVER, TERMINAL |
| 27 | K5169M | 3 | SCREW, C/R COUNTERSUNK |
| 28 | PBOOTC1 | 1 | RETAINER |
| 29 | H5274A | 1 | BOLT, HEX SOCKET |
| 30 | W1021A | 1 | WASHER, LOCK |
| 31 | PS03710 | 2 | SHEET |
| 32 | RH37644 | 1 | HARNESS |
| 33 | 2EGKHA000601 | 1 | BOARD, PRINTED CIRCUIT |
| 35 | W1021A | 4 | WASHER, LOCK |
| 36 | S3243Z | 4 | SPACER |
| 37 | 2AGKHA000201 | 1 | BOARD, PRINTED CIRCUIT |
| 38 | S3226G | 4 | SPACER |
| 39 | 2EGKHA000906 | 1 | BOARD, PRINTED CIRCUIT |
| 40 | W1040R | 4 | WASHER, FLAT |
| 41 | W1021A | 4 | WASHER, LOCK |
| 42 | PM094H2 | 4 | SPACER |
| 43 | 2AGKHA000401 | 1 | BOARD, PRINTED CIRCUIT |
| 44 | W1040R | 4 | WASHER, FLAT |
| 45 | W1021A | 4 | WASHER, LOCK |
| 46 | S32430 | 4 | SPACER |
| 47 | PB99554 | 1 | RETAINER |
| 47.1 | H3020C | 1 | FILTER |
| 48 | K51981 | 4 | SCREW, WASHER ASS'Y |
| 49 | 2MGKHA035700 | 1 | BKT |
| 50 | H5274A | 4 | BOLT, HEX SOCKET |
| 51 | W1021A | 4 | WASHER, LOCK |
| 52 | PM064M2 | 1 | ARM |
| 53 | H5265A | 1 | BOLT, HEX SOCKET |
| 54 | PH00907 | 1 | ARM |
| 55 | PM46182 | 1 | PIN |
| 56 | PZ04721 | 1 | SPRING, TORSION |
| 57 | W1039K | 1 | WASHER, FLAT |
| 58 | S1003D | 1 | CIR-CLIP |
| 59 | PM04565 | 2 | PIN, ROLLER |
| 60 | PM04574 | 2 | ROLLER |
| 61 | PM04552 | 2 | COLLAR |
| 62 | N1074Z | 2 | NUT, HEX |
| 63 | PBOONW4 | 1 | BKT |
| 64 | K62149 | 1 | SCREW, C/R FLAT |
| 65 | H5274A | 1 | BOLT, HEX SOCKET |
| 66 | W1021A | 1 | WASHER, LOCK |
| 66.1 | W1040R | 1 | WASHER, FLAT |
| 67 | PBOONT3 | 1 | BKT |
| 68 | K62149 | 1 | SCREW, C/R FLAT |
| 69 | H5274A | 1 | BOLT, HEX SOCKET |
| 70 | W1021A | 1 | WASHER, LOCK |
| 70.1 | W1040R | 1 | WASHER, FLAT |
| 71 | PP01251 | 2 | NUT |
| 72 | S61582 | 1 | SENSOR |
| 72.1 | 2MGKHE003402 | 2 | PLATE |
| 73 | H5266A | 4 | BOLT, HEX SOCKET |
| 74 | PB074E1 | 1 | BKT |
| 74.1 | H5273A | 1 | BOLT, HEX SOCKET |
| 75 | K62149 | 1 | SCREW, C/R FLAT |
| 76 | PBOONX2 | 1 | BKT, MOTOR |
| 77 | H5275A | 4 | BOLT, HEX SOCKET |
| 78 | W1021A | 4 | WASHER, LOCK |
| 79 | W1042A | 4 | WASHER, FLAT |
| 80 | XM01173 | 1 | MOTOR, STEPPING |
| 81 | K5169R | 4 | SCREW, C/R COUNTERSUNK |
| 82 | S4029E | 1 | SENSOR |
| 83 | PP00171 | 1 | NUT |
| 84 | K5256A | 2 | SCREW, HEX SOCKET BUTTON |
| 85 | W1021A | 2 | WASHER, LOCK |
| 86 | W1040R | 2 | WASHER, FLAT |
| 87 | PX10872 | 1 | NAMEPLATE |
| 88 | PX05132 | 2 | NAMEPLATE, CAUTION |
| 89 | PX00182 | 1 | NAMEPLATE |
| 90 | 2MGKHA009900 | 1 | NAMEPLATE, CAUTION |

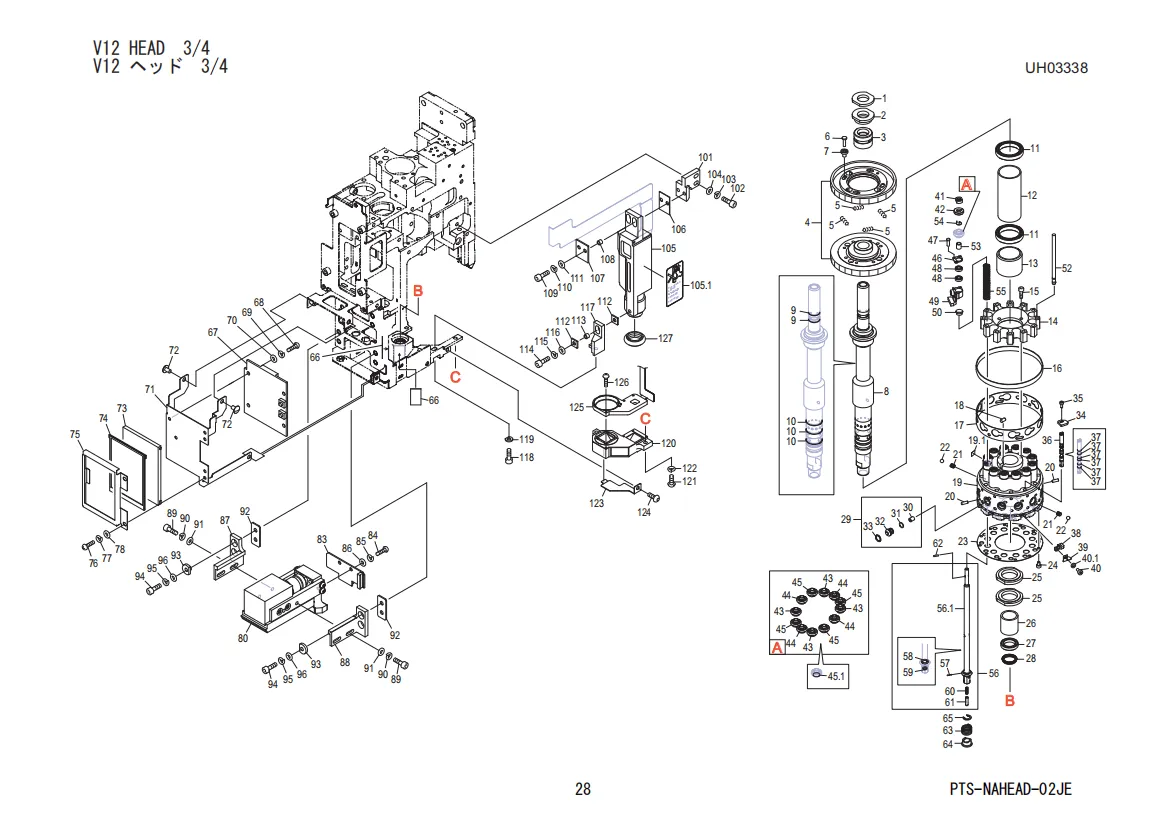

FUJI NXT V12 Head 3/4 - Spare Parts List
Complete spare parts breakdown for the V12 head assembly (Part 3/4).
×
| No. | Drg. No. & Code No. | QTY | Description |
|---|---|---|---|
| 1 | PM06DMO | 1 | RETAINER, BEARING |
| 2 | PM06GYO | 1 | RETAINER, BEARING |
| 3 | PM06DR4 | 1 | COLLAR |
| 4 | PM06DE7 | 1 | GEAR |
| 5 | PZ26042 | 4 | SPRING |
| 6 | PZ39231 | 4 | SCREW, C/R PAN |
| 7 | PM04893 | 4 | COLLAR |
| 8 | 2MGKHA010100 | 1 | SHAFT, CENTER |
| 9 | A5172X | 2 | O RING |
| 10 | A5192D | 3 | O RING |
| 11 | H4103B | 2 | BEARING |
| 12 | PM06DH4 | 1 | COLLAR, BEARING |
| 13 | PM06DK1 | 1 | COLLAR |
| 14 | PM07XK2 | 1 | HOLDER |
| 15 | H5266A | 4 | BOLT, HEX SOCKET |
| 16 | PX03741 | 1 | NAMEPLATE |
| 17 | PP02820 | 1 | RING |
| 18 | PMOK7T1 | 1 | KEY, PARALLEL |
| 19 | PMOFMB8 | 1 | HOLDER, ROTARY |
| 19.1 | PX00182 | 1 | NAMEPLATE |
| 20 | H21927 | 2 | PIN, PARALLEL |
| 21 | PZ16242 | 2 | SPRING |
| 22 | H61885 | 2 | BALL, STEEL |
| 23 | PBOO0C1 | 1 | RETAINER |
| 24 | PZ48412 | 12 | BOLT, HEX SOCKET |
| 25 | PM06DL1 | 2 | NUT |
| 26 | 2MGKHA001700 | 1 | RING |
| 27 | H4900H | 1 | BEARING |
| 28 | H11798 | 1 | PACKING |
| 29 | AA19H05 | 12 | FILTER |
| 30 | XH00801 | 12 | FILTER |
| 31 | A5188S | 12 | O RING |
| 32 | PH00575 | 12 | HOLDER |
| 33 | A51906 | 12 | O RING |
| 34 | PMOBXE2 | 12 | PUSHER |
| 35 | PZ53012 | 12 | BOLT, HEX SOCKET |
| 36 | XS03764 | 12 | SPOOL |
| 37 | A5053C | 72 | O RING |
| 38 | 2MGKHA008200 | 12 | GUIDE |
| 39 | PP03410 | 12 | COVER, LOWER |
| 40 | PZ48412 | 12 | BOLT, HEX SOCKET |
| 40.1 | W1020A | 12 | WASHER, LOCK |
| 41 | PMOKAC3 | 12 | NUT |
| 42 | PM04MK6 | 12 | GEAR |
| 43 | PM053T9 | 4 | GEAR |
| 44 | PM053S9 | 4 | GEAR |
| 45 | PM04MH9 | 4 | GEAR |
| 45.1 | A5188Z | 12 | O RING |
| 46 | PB025G3 | 12 | RETAINER, BEARING |
| 47 | PZ53021 | 36 | SCREW, C/R PAN |
| 48 | H63600 | 24 | BEARING |
| 49 | 2AGKHA001901 | 12 | ARM |
| 50 | 2MGKHA001600 | 12 | RING, HOLDER |
| 52 | PM08CC2 | 12 | SHAFT |
| 53 | PMOKWZ2 | 12 | COLLAR, BEARING |
| 54 | PZ34392 | 12 | SPRING |
| 55 | PZ38470 | 12 | SPRING |
| 56 | 2AGKHA003501 | 12 | SYRINGE |
| 56.1 | PM07RX7 | 12 | SYRINGE |
| 57 | PM59831 | 12 | ROLLER, NEEDLE |
| 58 | A5188Z | 12 | O RING |
| 59 | 2MGKHA014800 | 12 | O RING |
| 60 | PZ16856 | 12 | SPRING, COIL |
| 61 | PM19126 | 12 | PIPE |
| 62 | PM59842 | 12 | ROLLER, NEEDLE |
| 63 | PZ13362 | 12 | SPRING, COIL |
| 64 | PM074Z1 | 12 | COLLAR |
| 65 | S61451 | 12 | CIR-CLIP |
| 66 | 2MGKHA035103 | 2 | SHEET |
| 67 | 2EGKHA003900 | 1 | BOARD, PRINTED CIRCUIT |
| 68 | K51756 | 4 | SCREW, C/R PAN |
| 69 | W1020H | 4 | WASHER, LOCK |
| 70 | W11081 | 4 | WASHER, FLAT |
| 71 | 2MGKHA019101 | 1 | BKT, COVER |
| 72 | K62149 | 2 | SCREW, C/R FLAT |
| 73 | T61093 | 1 | DISPLAY, LIQUID CRYSTAL |
| 74 | 2AGKHB000200 | 1 | COVER |
| 75 | 2MGKHB001701 | 1 | RETAINER, COVER |
| 76 | K5173M | 2 | SCREW, C/R PAN |
| 77 | W1020H | 2 | WASHER, LOCK |
| 78 | W11081 | 2 | WASHER, FLAT |
| 80 | AA66W08 | 1 | CAMERA |
| 83 | 2EGKHA003800 | 1 | BOARD, PRINTED CIRCUIT |
| 84 | K5168K | 2 | SCREW |
| 85 | W1020H | 2 | WASHER, LOCK |
| 86 | W11081 | 2 | WASHER, FLAT |
| 87 | PM09TH3 | 1 | BKT |
| 88 | PM09TG3 | 1 | BKT |
| 89 | H5275A | 4 | BOLT, HEX SOCKET |
| 90 | W1021A | 4 | WASHER, LOCK |
| 91 | W1042A | 4 | WASHER, FLAT |
| 92 | 2MGKHA033300 | 2 | PLATE, INSULATING |
| 93 | PJ17392 | 4 | BUSHING |
| 94 | H5277A | 4 | BOLT, HEX SOCKET |
| 95 | W1021A | 4 | WASHER, LOCK |
| 96 | W1042A | 4 | WASHER, FLAT |
| 101 | 2MGKHA011000 | 1 | BKT, ADJUSTING |
| 102 | H5276A | 2 | BOLT, HEX SOCKET |
| 103 | W1021A | 2 | WASHER, LOCK |
| 104 | W1040R | 2 | WASHER, FLAT |
| 105 | XK05933 | 1 | CAMERA |
| 105.1 | PX11810 | 1 | NAMEPLATE, CAUTION |
| 106 | 2MGKHA033601 | 1 | PLATE, INSULATING |
| 107 | 2MGKHA033501 | 1 | PLATE, INSULATING |
| 108 | PJ24620 | 2 | COLLAR, INSULATION |
| 109 | PZ61910 | 2 | BOLT, HEX SOCKET |
| 110 | W1021A | 2 | WASHER, LOCK |
| 111 | W1040R | 2 | WASHER, FLAT |
| 112 | 2MGKHA033401 | 2 | PLATE, INSULATING |
| 113 | PJ24620 | 1 | COLLAR, INSULATION |
| 114 | H5277A | 1 | BOLT, HEX SOCKET |
| 115 | W1021A | 1 | WASHER, LOCK |
| 116 | W1040R | 1 | WASHER, FLAT |
| 117 | 2MGKHA010400 | 1 | BKT |
| 118 | H5277A | 1 | BOLT, HEX SOCKET |
| 119 | 2MGKHA010601 | 1 | WASHER |
| 120 | XB03216 | 1 | BOX, PRISM |
| 121 | K5256A | 2 | SCREW, HEX SOCKET BUTTON |
| 122 | W1021A | 2 | WASHER, LOCK |
| 123 | PB04TA1 | 1 | COVER, LOWER |
| 124 | K5255A | 1 | SCREW, HEX SOCKET BUTTON |
| 125 | AA9AS04 | 1 | BOARD |
| 126 | PZ53032 | 3 | SCREW, C/R PAN |
| 127 | 2MGKHA010000 | 1 | SEAL, RUBBER |

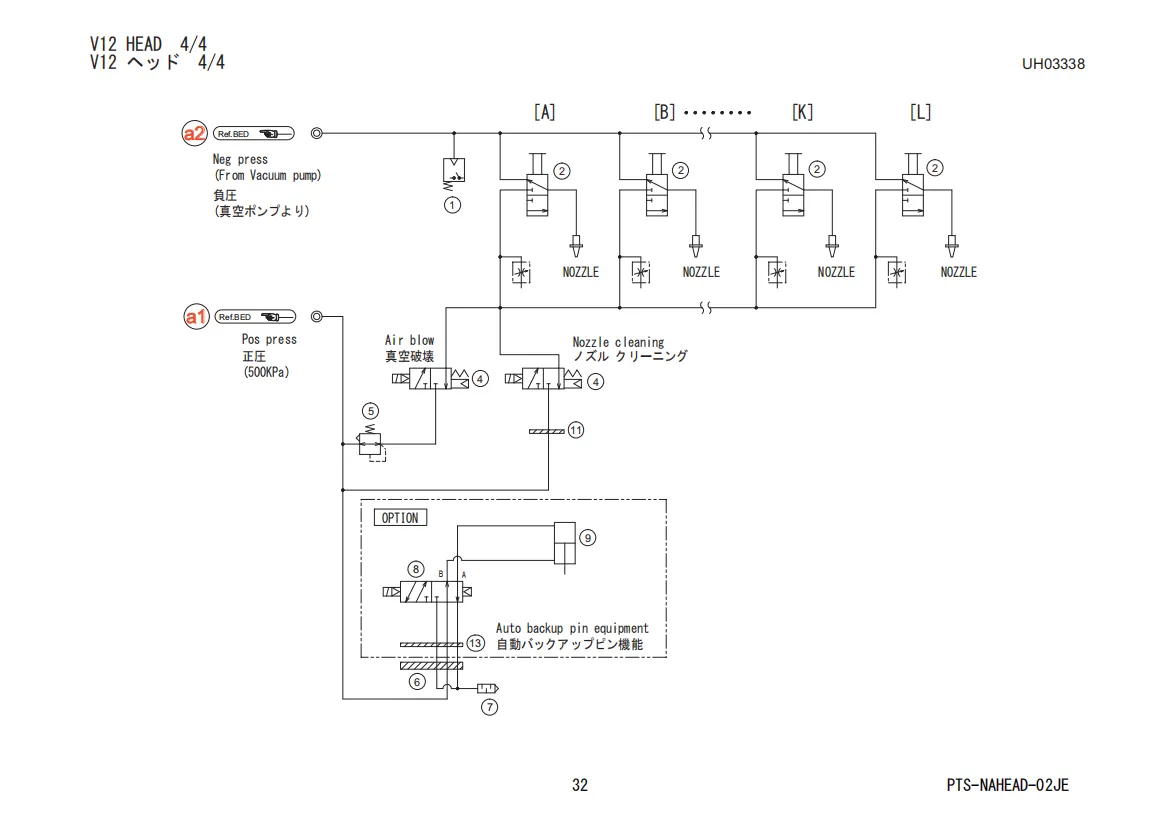

FUJI NXT V12 Head 4/4 - Pneumatic & Tube Parts List
Complete spare parts breakdown for the V12 head pneumatic and tube assembly (Part 4/4).
×
| No. | Drg. No. & Code No. | QTY | Description |
|---|---|---|---|
| 1 | XS00842 | 1 | SENSOR, PRESSURE |
| 2 | XS03764 | 12 | SPOOL |
| 4 | H11352 | 2 | VALVE, SOL |
| 5 | XB00763 | 1 | VALVE, PRESSURE REDUCING |
| 6 | H62140 | 1 | PLATE |
| 7 | S1058B | 1 | SILENCER |
| 8 | H1122D | 1 | VALVE, SOL |
| 9 | XS01844 | 1 | CYLINDER |
| 11 | 2MGKHA008101 | 1 | PLATE, ACRYLIC |
| 13 | PJ22721 | 1 | PLATE, ACRYLIC |

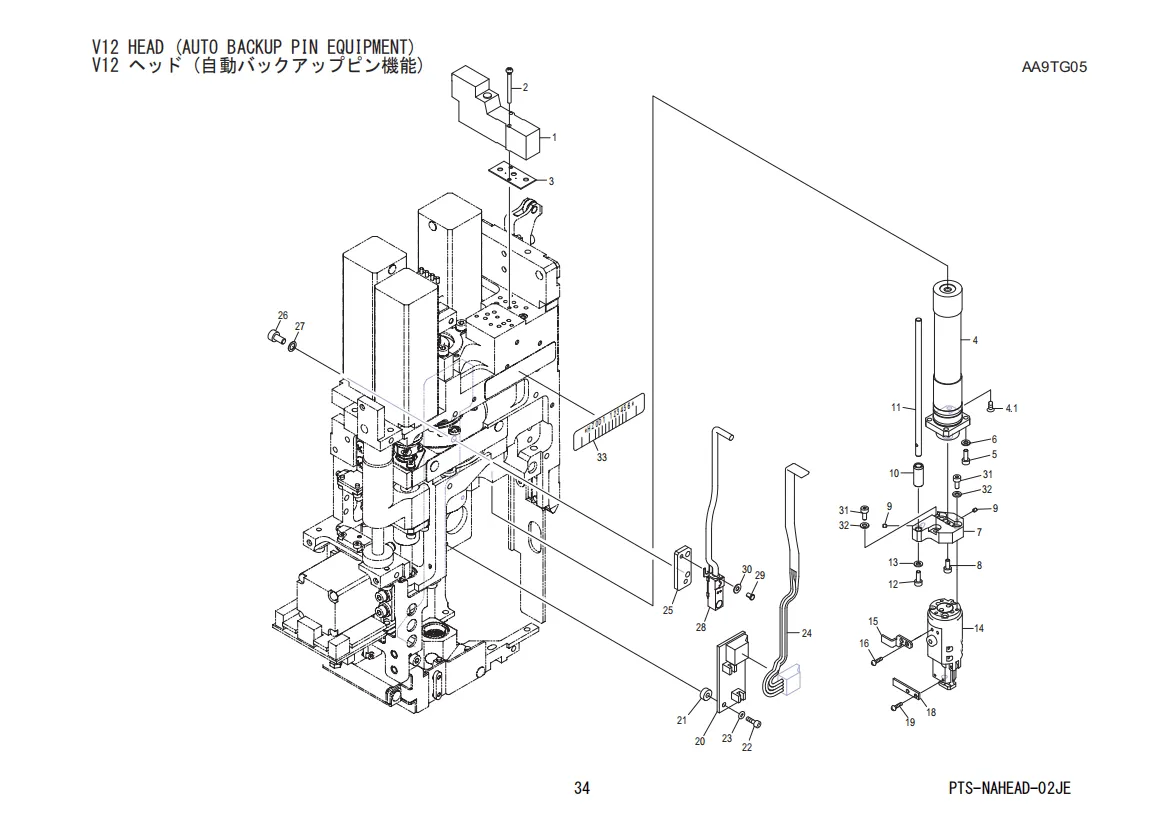

FUJI NXT V12 Head (Auto Backup Pin Equipment) - Spare Parts List
Complete spare parts breakdown for the V12 Head Auto Backup Pin functional unit.
×
| No. | Drg. No. & Code No. | QTY | Description |
|---|---|---|---|
| 1 | H1122D | 1 | VALVE, SOL |
| 2 | - | 2 | SCREW, C/R PAN |
| 3 | PJ22721 | 1 | PLATE, ACRYLIC |
| 4 | XS01844 | 1 | CYLINDER |
| 4.1 | K51684 | 1 | SCREW, C/R COUNTERSUNK |
| 5 | H5267A | 3 | BOLT, HEX SOCKET |
| 6 | W1020A | 3 | WASHER, LOCK |
| 7 | PM07YM4 | 1 | FLANGE |
| 8 | H5265A | 1 | BOLT, HEX SOCKET |
| 9 | N4087K | 2 | SCREW, HEX SOCKET SET |
| 10 | PM55002 | 1 | BUSHING, GUIDE |
| 11 | PM07YL0 | 1 | SHAFT |
| 12 | H5266A | 1 | BOLT, HEX SOCKET |
| 13 | W1020A | 1 | WASHER, LOCK |
| 14 | AA17R11 | 1 | CHUCK |
| 15 | PB002H1 | 1 | DOG, SW |
| 16 | K5180G | 2 | SCREW, C/R PAN |
| 18 | PB002K3 | 1 | DOG, SW |
| 19 | K5180C | 2 | SCREW, C/R PAN |
| 20 | XK05291 | 1 | BOARD, PRINTED CIRCUIT |
| 21 | S3227R | 2 | SPACER |
| 22 | H5267A | 2 | BOLT, HEX SOCKET |
| 23 | W11080 | 2 | WASHER, FLAT |
| 24 | 2EGKHA000800 | 1 | HARNESS |
| 25 | PB002L2 | 1 | BKT, SENSOR |
| 26 | H5274A | 2 | BOLT, HEX SOCKET |
| 27 | W1010A | 2 | WASHER, CONICAL |
| 28 | S40577 | 1 | SENSOR |
| 29 | K5180E | 1 | SCREW, C/R PAN |
| 30 | W11080 | 1 | WASHER, FLAT |
| 31 | H5265A | 3 | BOLT, HEX SOCKET |
| 32 | W1020A | 3 | WASHER, LOCK |
| 33 | PX08322 | 1 | SEAL, BAR CODE |
“Ready to Source SMT Components & Machinery?” — Explore Our Flexible Solutions
⏱️
Fast & Safety Delivery
Shipment for SMT components is arranged within 24-48 hours. Usually takes 5-7 days via DHL or UPS with full tracking to prevent production downtime.
🛡️
No MOQ Limit
Flexible purchasing with no MOQ limit. Free samples can be offered on your request for testing and quality validation.
⭐
Assured Quality
Rigorous quality control for FUJI SMT machine parts. We ensure high durability and reliability to protect your manufacturing investment.
🎧
7/24 Technical Support
Products are just the beginning. Reach out 24/7 for expert SMT technical assistance, rapid response, and dedicated after-sales service.
GET IN TOUCH
Your One-Stop SMT
Your One-Stop SMT
Solution Partner
Streamline your procurement of SMT machinery, replacement parts, and accessories with certified quality and rapid global fulfillment.
- ✔ One-stop electronic assembly line solutions
- ✔ Strict quality inspection & testing
- ✔ Rapid worldwide shipping
