FUJI SMT Part H02F Working Head
Specification Data
| Brand | FUJI |
| Part Number | UH02617 |
| Description | H02F Working Head |
| For | FUJI SMT NXT Machines |
Highlights:
Assured Quality
- Cost-Saving, Competitive Price
- Minimum Order Quantity: No Limit
- Fast Delivery: 5-7 Days
- Safety Delivery: Well protected package
- Services: 7/24 Guaranteed After-sales Service Service, Products Are Only The Beginning Of A Service, Not The End, Committed To Customer Satisfaction
- All Product Will Be Checked Carefully Before Shipment
- Providing Professional SMT One-stop Solutions
💡 Looking for bulk orders or specialized SMT one-stop solutions? Contact our 24/7 technical support team today for a fast quote!
-
+
Add to Inquiry Cart

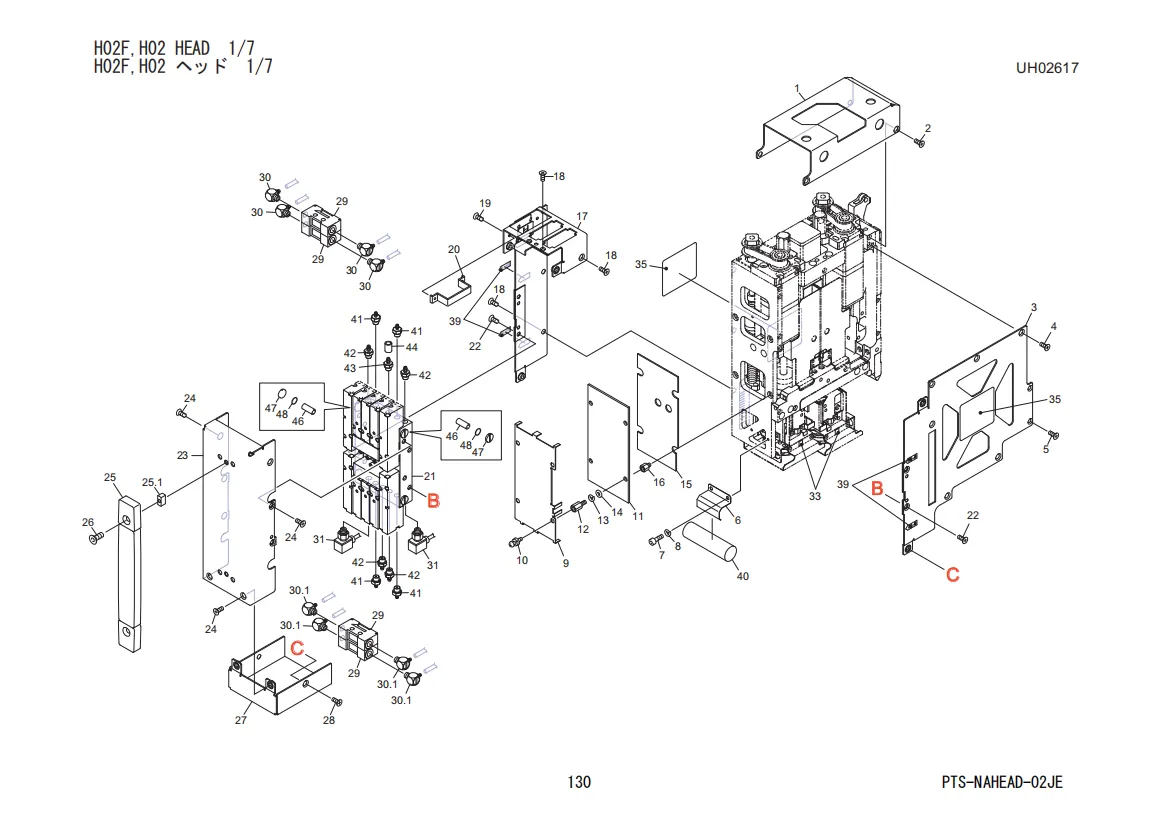

FUJI H02F, H02 Head 1/7 - Spare Parts List
Complete spare parts breakdown for the H02F/H02 head assembly (Part 1/7).
| No. | Drg. No. & Code No. | QTY | Description |
|---|---|---|---|
| 1 | PB016D3 | 1 | COVER, UPPER |
| 2 | K5186R | 4 | SCREW, C/R COUNTERSUNK |
| 3 | PB98263 | 1 | COVER, SIDE |
| 4 | K5186R | 6 | SCREW, C/R COUNTERSUNK |
| 5 | K5170X | 2 | SCREW, C/R COUNTERSUNK |
| 6 | PB98283 | 1 | BKT, RETAINER |
| 7 | H5265A | 2 | BOLT, HEX SOCKET |
| 8 | W1020A | 2 | WASHER, LOCK |
| 9 | PB94722 | 1 | COVER |
| 10 | K5199Y | 4 | SCREW, WASHER ASS'Y |
| 11 | XK04691 | 1 | BOARD, PRINTED CIRCUIT |
| 12 | S3228S | 4 | SPACER |
| 13 | W1021A | 4 | WASHER, LOCK |
| 14 | W1040R | 4 | WASHER, FLAT |
| 15 | PS03231 | 1 | SHEET |
| 16 | S3272X | 4 | SPACER |
| 17 | PB86148 | 1 | COVER, SIDE |
| 18 | K5186R | 6 | SCREW, C/R COUNTERSUNK |
| 19 | K51700 | 2 | SCREW, C/R COUNTERSUNK |
| 20 | PB83472 | 1 | BKT, RETAINER |
| 21 | XB03124 | 1 | VALVE UNIT |
| 22 | K5186R | 4 | SCREW, C/R COUNTERSUNK |
| 23 | PB98243 | 1 | COVER |
| 24 | K5186R | 8 | SCREW, C/R COUNTERSUNK |
| 25 | T50032 | 1 | HANDLE |
| 25.1 | PMOFTY1 | 2 | SPACER |
| 26 | K5358A | 2 | SCREW, HEX SOCKET COUNTERSUNK |
| 27 | PB98253 | 1 | COVER, LOWER |
| 28 | K5186R | 2 | SCREW, C/R COUNTERSUNK |
| 29 | XS01582 | 4 | SENSOR |
| 30 | A4068H | 4 | ELBOW |
| 30.1 | A4068G | 4 | ELBOW |
| 31 | S4033G | 2 | SENSOR, PRESSURE |
| 33 | PX08531 | 1 | NAMEPLATE |
| 35 | PX05132 | 2 | NAMEPLATE, CAUTION |
| 39 | PX09460 | 1 | NAMEPLATE |
| 40 | H1021H | 1 | BATTERY |
| 41 | A4067R | 4 | ELBOW |
| 42 | N2030T | 4 | NIPPLE |
| 43 | N2140D | 1 | NIPPLE |
| 44 | R2031B | 1 | RING |
| 46 | XH00940 | 4 | FILTER |
| 47 | K10577 | 4 | COVER |
| 48 | A5054Z | 4 | O RING |

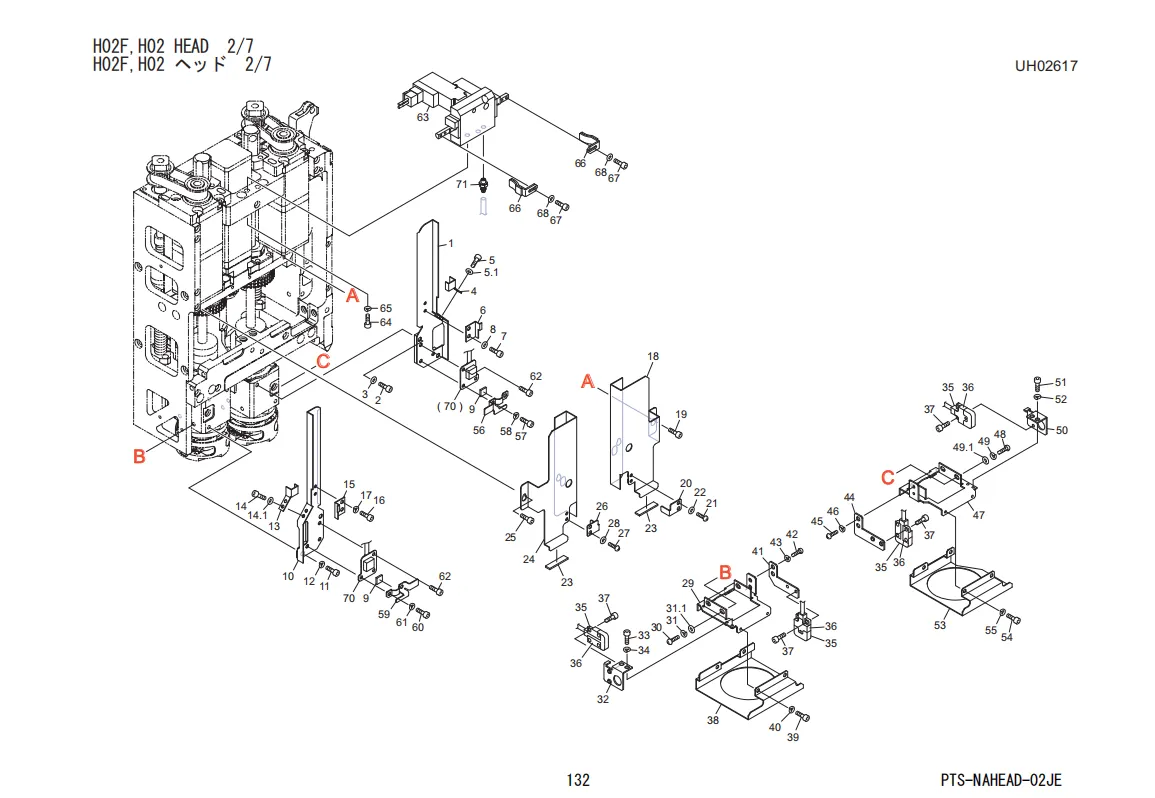

FUJI H02F, H02 Head 2/7 - Spare Parts List
Complete spare parts breakdown for the H02F/H02 head assembly (Part 2/7).
| No. | Drg. No. & Code No. | QTY | Description |
|---|---|---|---|
| 1 | 2MGKHH000201 | 1 | COVER |
| 2 | H5268T | 2 | BOLT, HEX SOCKET |
| 3 | W1020H | 2 | WASHER, LOCK |
| 4 | PB88940 | 1 | RETAINER |
| 5 | H5263M | 2 | BOLT, HEX SOCKET |
| 5.1 | W1039F | 2 | WASHER, FLAT |
| 6 | PB88923 | 1 | RETAINER, WIRING |
| 7 | H5263N | 2 | BOLT, HEX SOCKET |
| 8 | W1039F | 2 | WASHER, FLAT |
| 9 | PS03122 | 2 | SHEET |
| 10 | 2MGKHH000301 | 1 | COVER |
| 11 | H5268T | 2 | BOLT, HEX SOCKET |
| 12 | W1020H | 2 | WASHER, LOCK |
| 13 | PB88950 | 1 | RETAINER |
| 14 | H5263M | 2 | BOLT, HEX SOCKET |
| 14.1 | W1039F | 2 | WASHER, FLAT |
| 15 | PB88933 | 1 | RETAINER, WIRING |
| 16 | H5263N | 2 | BOLT, HEX SOCKET |
| 17 | W1039F | 2 | WASHER, FLAT |
| 18 | PB96283 | 1 | COVER |
| 19 | H5264A | 2 | BOLT, HEX SOCKET |
| 20 | PB005A1 | 1 | RETAINER, WIRING |
| 21 | K51749 | 2 | SCREW, C/R PAN |
| 22 | W1039F | 2 | WASHER, FLAT |
| 23 | PS03200 | 2 | SHEET |
| 24 | PB96293 | 1 | COVER |
| 25 | H5264A | 2 | BOLT, HEX SOCKET |
| 26 | PB004T1 | 1 | RETAINER, WIRING |
| 27 | K51749 | 2 | SCREW, C/R PAN |
| 28 | W1039F | 2 | WASHER, FLAT |
| 29 | PB99013 | 1 | BKT, COVER |
| 30 | K5173K | 3 | SCREW, C/R PAN |
| 31 | W1020H | 3 | WASHER, LOCK |
| 31.1 | W11081 | 3 | WASHER, FLAT |
| 32 | PB83163 | 1 | BKT, SENSOR |
| 33 | H5264A | 2 | BOLT, HEX SOCKET |
| 34 | W1020A | 2 | WASHER, LOCK |
| 35 | S40583 | 2 | SENSOR |
| 36 | S3070L | 4 | SLIT |
| 37 | PZ52230 | 8 | BOLT, HEX SOCKET |
| 38 | PB83205 | 1 | COVER |
| 39 | H5264A | 4 | BOLT, HEX SOCKET |
| 40 | W1020A | 4 | WASHER, LOCK |
| 41 | PB83152 | 1 | BKT, SENSOR |
| 42 | K5180F | 2 | SCREW, C/R PAN |
| 43 | W1020A | 2 | WASHER, LOCK |
| 44 | PB83142 | 1 | BKT, SENSOR |
| 45 | K5180F | 2 | SCREW, C/R PAN |
| 46 | W1020A | 2 | WASHER, LOCK |
| 47 | PB99003 | 1 | BKT, COVER |
| 48 | K5173K | 3 | SCREW, C/R PAN |
| 49 | W1020H | 3 | WASHER, LOCK |
| 49.1 | W11081 | 3 | WASHER, FLAT |
| 50 | PB83133 | 1 | BKT, SENSOR |
| 51 | H5264A | 2 | BOLT, HEX SOCKET |
| 52 | W1020A | 2 | WASHER, LOCK |
| 53 | PB83196 | 1 | BKT, COVER |
| 54 | H5264A | 4 | BOLT, HEX SOCKET |
| 55 | W1020A | 4 | WASHER, LOCK |
| 56 | PB98452 | 1 | RETAINER, WIRING |
| 57 | H5264A | 2 | BOLT, HEX SOCKET |
| 58 | W1020A | 2 | WASHER, LOCK |
| 59 | PB98462 | 1 | RETAINER, WIRING |
| 60 | H5264A | 2 | BOLT, HEX SOCKET |
| 61 | W1020A | 2 | WASHER, LOCK |
| 62 | H5264A | 2 | BOLT, HEX SOCKET |
| 63 | 2MGKHH000700 | 1 | CYLINDER |
| 64 | H5280A | 2 | BOLT, HEX SOCKET |
| 65 | W1021A | 2 | WASHER, LOCK |
| 66 | PB0OYB1 | 2 | PLATE, RETAINING |
| 67 | H5263N | 4 | BOLT, HEX SOCKET |
| 68 | W1039F | 4 | WASHER, FLAT |
| 70 | 2AGKHH001400 | 1 | BOARD, PRINTED CIRCUIT |
| 71 | A4067H | 1 | ELBOW |

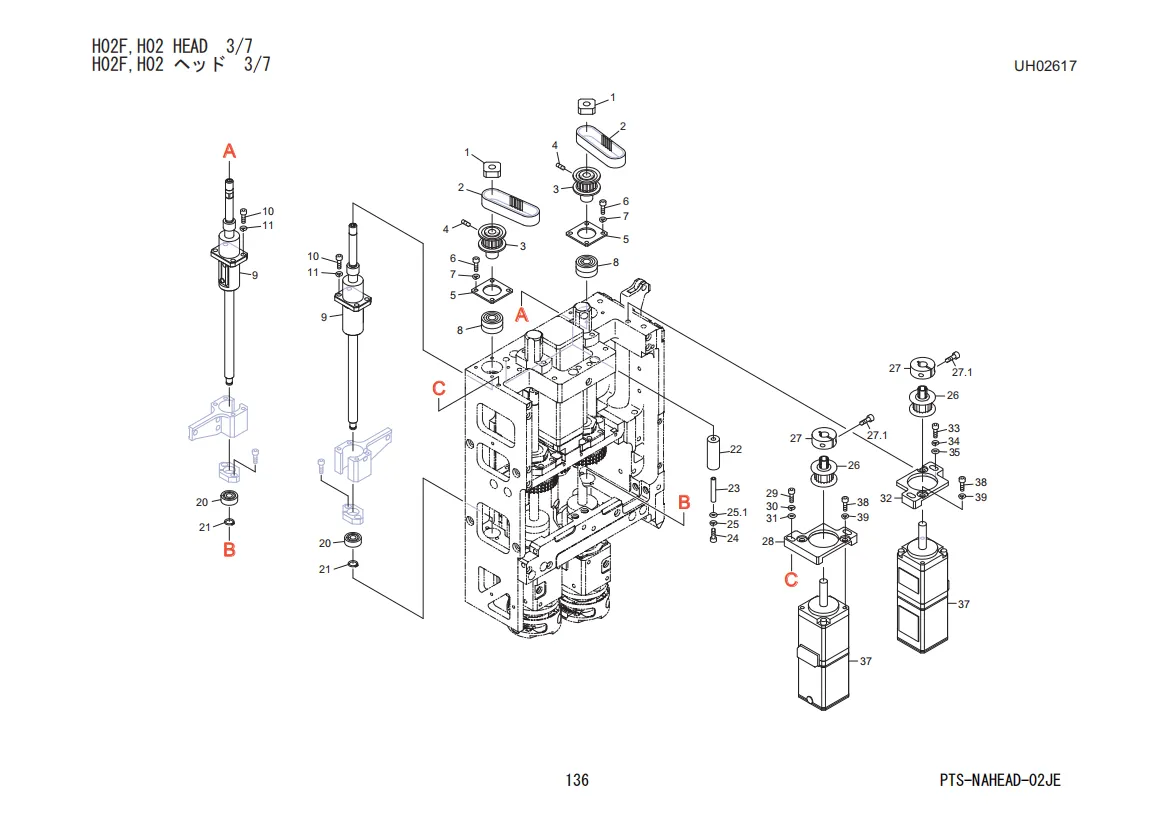

FUJI H02F, H02 Head 3/7 - Spare Parts List
Complete spare parts breakdown for the H02F/H02 head assembly (Part 3/7).
| No. | Drg. No. & Code No. | QTY | Description |
|---|---|---|---|
| 1 | N1040S | 2 | NUT, LOCK |
| 2 | H45710 | 2 | BELT, TIMING |
| 3 | XP01382 | 2 | PULLEY |
| 4 | N4018A | 4 | SCREW, HEX SOCKET SET |
| 5 | PM03LX1 | 2 | RETAINER, BEARING |
| 6 | H5265A | 8 | BOLT, HEX SOCKET |
| 7 | W1020A | 8 | WASHER, LOCK |
| 8 | H4897A | 2 | BEARING |
| 9 | XB02924 | 2 | BALL SCREW |
| 10 | H5268Z | 8 | BOLT, HEX SOCKET |
| 11 | W1020H | 8 | WASHER, LOCK |
| 20 | H4581B | 2 | BEARING, MINIATURE |
| 21 | S10267 | 2 | CIR-CLIP |
| 22 | PG03801 | 2 | STOPPER |
| 23 | PM03NB1 | 2 | COLLAR |
| 24 | H5710K | 2 | BOLT, HEX SOCKET |
| 25 | W1020A | 2 | WASHER, LOCK |
| 25.1 | W1039A | 2 | WASHER, FLAT |
| 26 | PZ05381 | 2 | PULLEY |
| 27 | PM04633 | 2 | COLLAR |
| 27.1 | H5268Z | 2 | BOLT, HEX SOCKET |
| 28 | PM03LZ3 | 1 | BKT, MOTOR |
| 29 | H5277T | 2 | BOLT, HEX SOCKET |
| 30 | W1021A | 2 | WASHER, LOCK |
| 31 | W1042A | 2 | WASHER, FLAT |
| 32 | PM03LY1 | 1 | BKT, MOTOR |
| 33 | H5277T | 2 | BOLT, HEX SOCKET |
| 34 | W1021A | 2 | WASHER, LOCK |
| 35 | W1042A | 2 | WASHER, FLAT |
| 37 | XM01181 | 2 | MOTOR, AC SERVO |
| 38 | H5274A | 4 | BOLT, HEX SOCKET |
| 39 | W1021A | 4 | WASHER, LOCK |

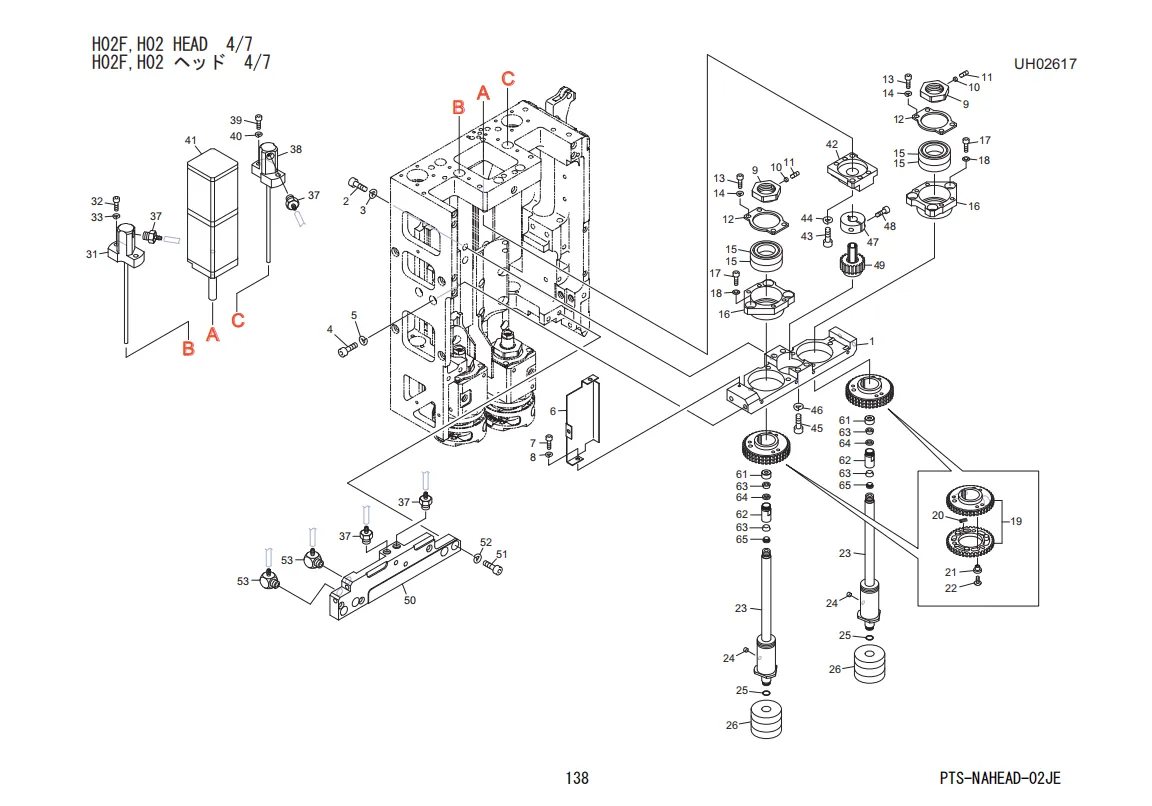

FUJI H02F, H02 Head 4/7 - Spare Parts List
Complete spare parts breakdown for the H02F/H02 head assembly (Part 4/7).
| No. | Drg. No. & Code No. | QTY | Description |
|---|---|---|---|
| 1 | PM03LE6 | 1 | BKT, HOLDER |
| 2 | H5288A | 1 | BOLT, HEX SOCKET |
| 3 | W1022A | 1 | WASHER, LOCK |
| 4 | H5274A | 4 | BOLT, HEX SOCKET |
| 5 | W1021A | 4 | WASHER, LOCK |
| 6 | PB03WX0 | 1 | BKT, WIRING |
| 7 | H5264T | 3 | BOLT, HEX SOCKET |
| 8 | W1020A | 3 | WASHER, LOCK |
| 9 | PM03MS3 | 2 | NUT |
| 10 | S3272Y | 2 | SPACER |
| 11 | N40172 | 2 | SCREW, HEX SOCKET SET |
| 12 | PM03LK0 | 2 | RETAINER, BEARING |
| 13 | H5268T | 8 | BOLT, HEX SOCKET |
| 14 | W1020H | 8 | WASHER, LOCK |
| 15 | H4044L | 4 | BEARING |
| 16 | PM03LF5 | 2 | HOLDER, BEARING |
| 17 | H5275A | 6 | BOLT, HEX SOCKET |
| 18 | W1010A | 6 | WASHER, CONICAL |
| 19 | PM03KR3 | 2 | GEAR |
| 20 | PZ32892 | 6 | SPRING |
| 21 | PM03RB0 | 6 | COLLAR |
| 22 | 2MGKHH001401 | 6 | SCREW, C/R PAN |
| 23 | XS02736 | 2 | SHAFT, SPLINE |
| 24 | PM03NS3 | 2 | KEY, PARALLEL |
| 25 | A60852 | 2 | O RING |
| 26 | XK05160 | 2 | COUPLING |
| 31 | AA9LB02 | 1 | PIPE, PIPING |
| 32 | H5268A | 2 | BOLT, HEX SOCKET |
| 33 | W1020A | 2 | WASHER, LOCK |
| 37 | A4067R | 4 | ELBOW |
| 38 | AA9LA02 | 1 | PIPE, PIPING |
| 39 | H5268A | 2 | BOLT, HEX SOCKET |
| 40 | W1020A | 2 | WASHER, LOCK |
| 41 | XM00473 | 1 | MOTOR, AC SERVO |
| 42 | PM03LM3 | 1 | BKT, MOTOR |
| 43 | H5275A | 2 | BOLT, HEX SOCKET |
| 44 | W1021A | 2 | WASHER, LOCK |
| 45 | H5280A | 4 | BOLT, HEX SOCKET |
| 46 | W1021A | 4 | WASHER, LOCK |
| 47 | PM04633 | 1 | COLLAR |
| 48 | H5268T | 1 | BOLT, HEX SOCKET |
| 49 | PM03KS3 | 1 | GEAR |
| 50 | PM054D4 | 1 | STAY |
| 51 | H5275A | 4 | BOLT, HEX SOCKET |
| 52 | W1021A | 4 | WASHER, LOCK |
| 53 | A4068G | 2 | ELBOW |
| 61 | 2MGKHH009100 | 2 | CAP |
| 62 | 2MGKHH009000 | 2 | HOLDER |
| 63 | XP01920 | 4 | PACKING |
| 64 | 2MGKHH004600 | 2 | COLLAR |
| 65 | PMOGBDO | 2 | COLLAR |

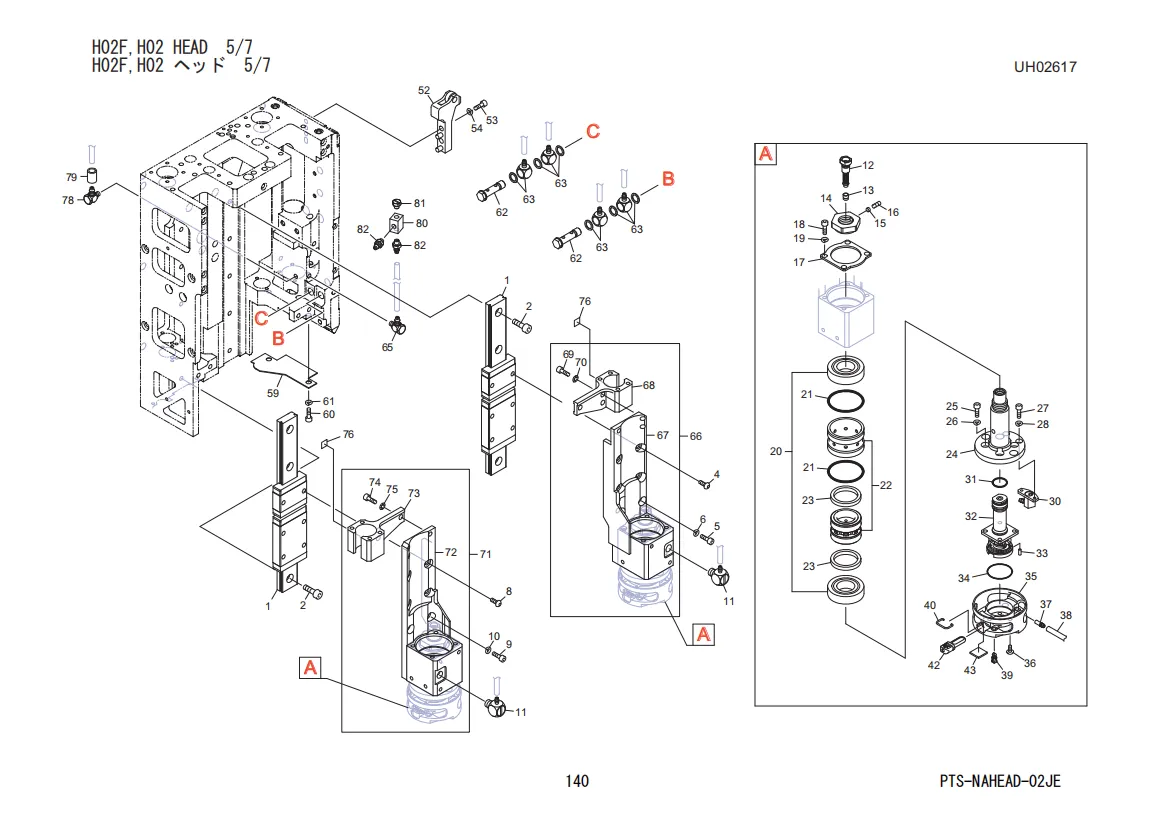

FUJI H02F, H02 Head 5/7 - Spare Parts List
Complete spare parts breakdown for the H02F/H02 head assembly (Part 5/7).
| No. | Drg. No. & Code No. | QTY | Description |
|---|---|---|---|
| 1 | XG01143 | 2 | GUIDE, RAIL |
| 2 | H5273A | 10 | BOLT, HEX SOCKET |
| 4 | K5255A | 4 | SCREW, HEX SOCKET BUTTON |
| 5 | H5273T | 2 | BOLT, HEX SOCKET |
| 6 | W1021A | 2 | WASHER, LOCK |
| 8 | K5255A | 4 | SCREW, HEX SOCKET BUTTON |
| 9 | H5273T | 2 | BOLT, HEX SOCKET |
| 10 | W1021A | 2 | WASHER, LOCK |
| 11 | A4068G | 2 | ELBOW |
| 12 | AA5CC08 | 2 | SLEEVE |
| 13 | H1339A | 2 | PAD, VACUUM |
| 14 | PM03LH5 | 2 | NUT, LOCK |
| 15 | S3272Y | 2 | SPACER |
| 16 | N40172 | 2 | SCREW, HEX SOCKET SET |
| 17 | PM03LG0 | 2 | RETAINER, BEARING |
| 18 | H5268T | 8 | BOLT, HEX SOCKET |
| 19 | W1020H | 8 | WASHER, LOCK |
| 20 | H42220 | 2 | BEARING |
| 21 | A52030 | 4 | O RING |
| 22 | 2MGKHH010000 | 2 | COLLAR, BEARING |
| 23 | H1166T | 4 | PACKING |
| 24 | PM03KT9 | 2 | SHAFT |
| 25 | H5268M | 8 | BOLT, HEX SOCKET |
| 26 | W1020H | 8 | WASHER, LOCK |
| 27 | H5264A | 4 | BOLT, HEX SOCKET |
| 28 | W1020A | 4 | WASHER, LOCK |
| 30 | AA5CM05 | 2 | NIPPLE |
| 31 | A5203A | 2 | O RING |
| 32 | AA63NO2 | 2 | SHAFT, SPLINE |
| 33 | H2168A | 2 | PIN, PARALLEL |
| 34 | A5193E | 2 | O RING |
| 35 | AA5CA01 | 2 | FLANGE |
| 36 | PZ11901 | 8 | SCREW, C/R PAN |
| 37 | PM11721 | 2 | PLUG |
| 38 | PZ09531 | 2 | HOSE, AIR |
| 39 | PH00274 | 4 | PIN, CLAMP |
| 40 | 2MGKHG000102 | 2 | HOOK |
| 42 | AA8BD02 | 2 | FILTER |
| 43 | PS03190 | 2 | SHEET |
| 52 | AA06D10 | 1 | ROLLER |
| 53 | H5277A | 2 | BOLT, HEX SOCKET |
| 54 | W1021A | 2 | WASHER, LOCK |
| 59 | PB99230 | 1 | PLATE |
| 60 | H5273T | 2 | BOLT, HEX SOCKET |
| 61 | W1021A | 2 | WASHER, LOCK |
| 62 | PMOCHB2 | 2 | BOLT, JOINT |
| 63 | A4067T | 4 | ELBOW |
| 65 | A4067A | 1 | ELBOW |
| 66 | AA7AX03 | 1 | SLIDER |
| 67 | PM04HH6 | 1 | SLIDER |
| 68 | PM03KA3 | 1 | BKT, SLIDE |
| 69 | H5274A | 3 | BOLT, HEX SOCKET |
| 70 | W1010A | 3 | WASHER, CONICAL |
| 71 | AA7AY03 | 1 | SLIDER |
| 72 | PM04HK6 | 1 | SLIDER |
| 73 | PM03HZ3 | 1 | BKT, SLIDE |
| 74 | H5274A | 3 | BOLT, HEX SOCKET |
| 75 | W1010A | 3 | WASHER, CONICAL |
| 76 | PX08531 | 1 | NAMEPLATE |
| 78 | Y3044Z | 1 | UNION, ELBOW |
| 79 | R2031B | 1 | RING |
| 80 | PM096S1 | 1 | JOINT, HOSE |
| 81 | H3145H | 1 | PLUG |
| 82 | A4067H | 2 | ELBOW |

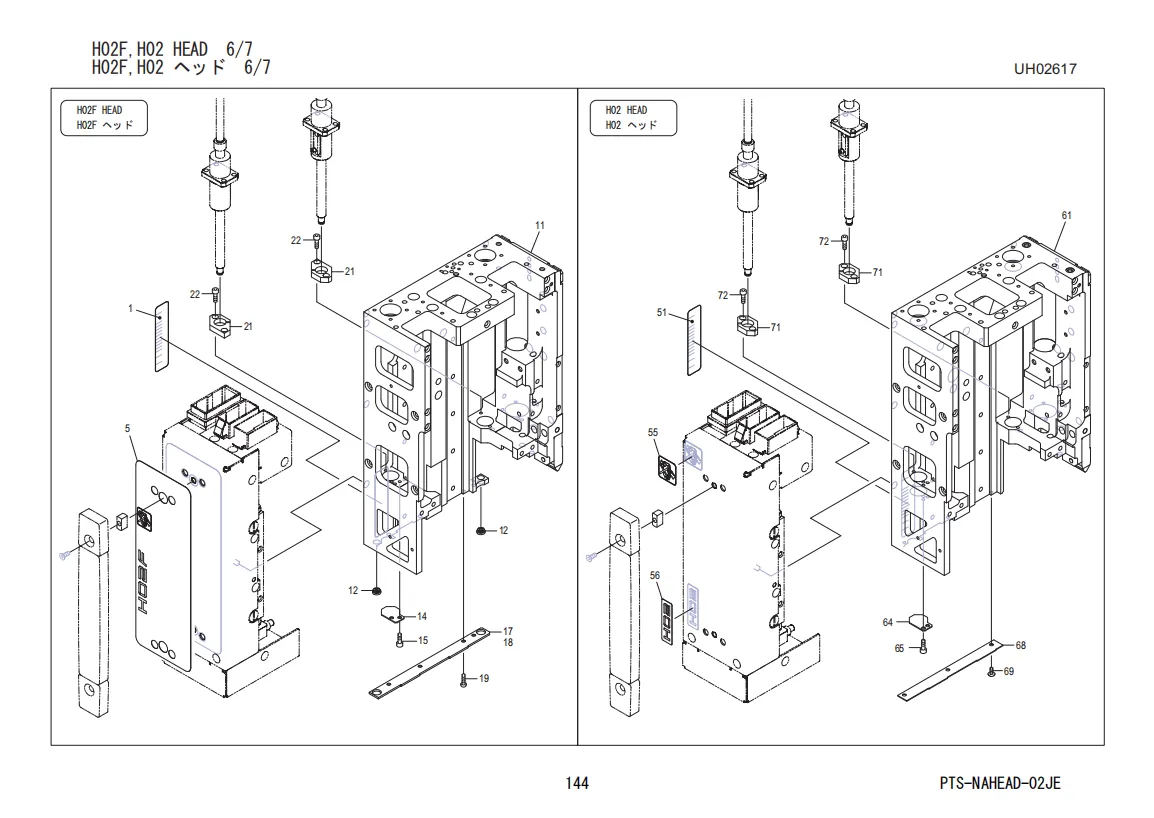

FUJI H02F, H02 Head 6/7 - Spare Parts List
Complete spare parts breakdown for the H02F/H02 head assembly (Part 6/7).
| No. | Drg. No. & Code No. | QTY | Description |
|---|---|---|---|
| 1 | 2MGTHH001101 | 1 | SEAL, BAR CODE |
| 5 | 2MGTHH001401 | 1 | NAMEPLATE |
| 11 | 2AGTHH000104 | 1 | BODY |
| 12 | 2AGTHG000201 | 2 | PIN, REFERENCE |
| 14 | 2MGTHH000800 | 1 | COVER, LOWER |
| 15 | H5264T | 2 | BOLT, HEX SOCKET |
| 17 | 2MGTHH000401 | 1 | PLATE |
| 18 | 2MGTHH001701 | 1 | PLATE |
| 19 | 2MGTHH002100 | 4 | SCREW, C/R PAN |
| 21 | 2MGTHH000600 | 2 | STOPPER |
| 22 | PZ52230 | 4 | BOLT, HEX SOCKET |
| 51 | PX08491 | 1 | SEAL, BAR CODE |
| 55 | PX03302 | 1 | NAMEPLATE, CAUTION |
| 56 | 2MGKHH003501 | 1 | NAMEPLATE |
| 61 | AA5CG15 | 1 | BODY |
| 64 | PB89881 | 1 | COVER, LOWER |
| 65 | H5264T | 2 | BOLT, HEX SOCKET |
| 68 | 2MGKHH001000 | 1 | PLATE |
| 69 | PZ11901 | 3 | SCREW, C/R PAN |
| 71 | PG05992 | 2 | STOPPER |
| 72 | PZ52230 | 4 | BOLT, HEX SOCKET |

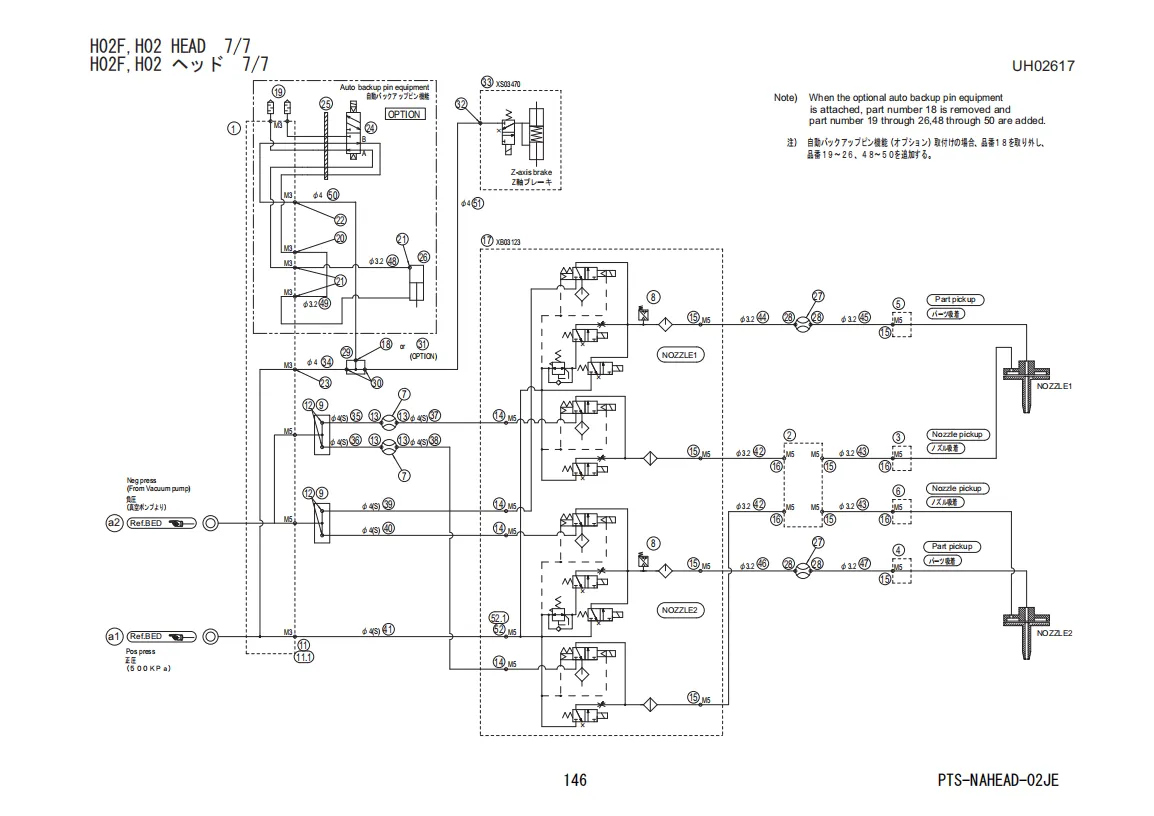

FUJI H02F, H02 Head 7/7 - Pneumatic & Tube Parts List
Complete spare parts breakdown for the H02F/H02 head pneumatic and tube assembly (Part 7/7).
| No. | Drg. No. & Code No. | QTY | Description |
|---|---|---|---|
| 1 | 2MGKHH003403 | 1 | BODY |
| 2 | PM054D4 | 1 | STAY |
| 3 | PM04HH6 | 1 | SLIDER |
| 4 | PM04HK6 | 1 | SLIDER |
| 5 | PM03MK5 | 1 | CAP |
| 6 | PM03ML5 | 1 | CAP |
| 7 | XS01582 | 2 | SENSOR |
| 8 | S4033G | 2 | SENSOR, PRESSURE |
| 9 | PMOCHB2 | 2 | BOLT, JOINT |
| 11 | Y3044Z | 1 | UNION, ELBOW |
| 11.1 | R2031B | 1 | RING |
| 12 | A4067T | 4 | ELBOW |
| 13 | A4068H | 4 | ELBOW |
| 14 | N2030T | 4 | NIPPLE |
| 15 | A4067R | 8 | ELBOW |
| 16 | A4068G | 4 | ELBOW |
| 17 | XB03124 | 1 | VALVE UNIT |
| 18 | H3145H | 1 | PLUG |
| 19 | S1058B | 2 | SILENCER |
| 20 | A4067G | 1 | ELBOW |
| 21 | A40669 | 3 | ELBOW |
| 22 | A4067H | 1 | ELBOW |
| 23 | A4067A | 1 | ELBOW |
| 24 | H1077W | 1 | VALVE, SOL |
| 25 | PJ15302 | 1 | PLATE, ACRYLIC |
| 26 | XS02773 | 1 | CYLINDER |
| 27 | XS01582 | 2 | SENSOR |
| 28 | A4068G | 4 | ELBOW |
| 29 | PM096S1 | 1 | JOINT, HOSE |
| 30 | A4067H | 2 | ELBOW |
| 31 | A4067H | 1 | ELBOW |
| 32 | A4067H | 1 | ELBOW |
| 33 | 2MGKHH000700 | 1 | CYLINDER |
| 34 | PZ54271 | 1 | TUBE |
| 35 | PZ42601 | 1 | TUBE |
| 36 | PZ42621 | 1 | TUBE |
| 37 | PZ42561 | 1 | TUBE |
| 38 | PZ42571 | 1 | TUBE |
| 39 | PZ42591 | 1 | TUBE |
| 40 | PZ42581 | 1 | TUBE |
| 41 | PZ42611 | 1 | TUBE |
| 42 | PZ42661 | 2 | TUBE |
| 43 | PZ15271 | 2 | TUBE |
| 44 | PZ42631 | 1 | TUBE |
| 45 | PZ42671 | 1 | TUBE |
| 46 | PZ42641 | 1 | TUBE |
| 47 | PZ42671 | 1 | TUBE |
| 48 | PZ42641 | 1 | TUBE |
| 49 | PZ42651 | 1 | TUBE |
| 50 | PZ54281 | 1 | TUBE |
| 51 | PZ54291 | 1 | TUBE |
| 52 | N2140D | 1 | NIPPLE |
| 52.1 | R2031B | 1 | RING |

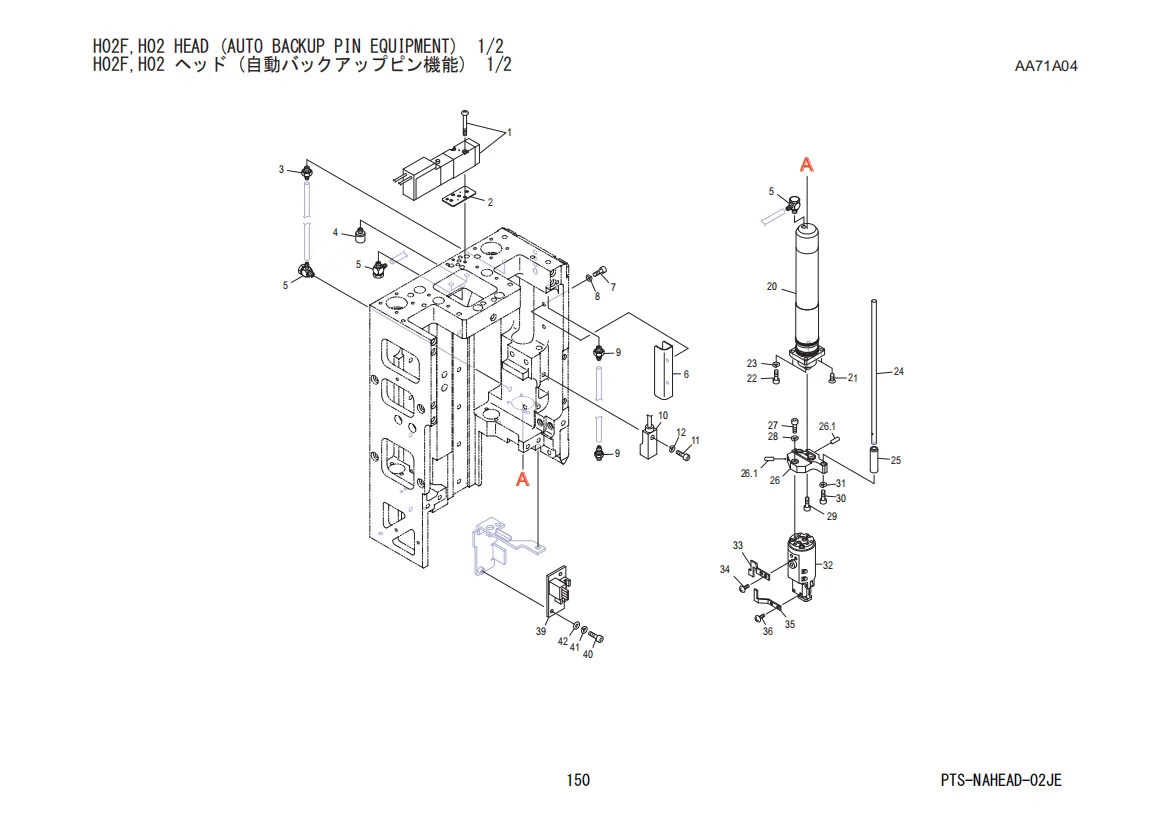

FUJI H02F, H02 Head (Auto Backup Pin Equipment) 1/2 - Spare Parts List
Complete spare parts breakdown for the H02F/H02 Head Auto Backup Pin functional unit (Part 1/2).
| No. | Drg. No. & Code No. | QTY | Description |
|---|---|---|---|
| 1 | H1077W | 1 | VALVE, SOL |
| 2 | PJ15302 | 1 | PLATE, ACRYLIC |
| 3 | A4067G | 1 | ELBOW |
| 4 | S1058B | 2 | SILENCER |
| 5 | A40669 | 3 | ELBOW |
| 6 | PB83622 | 1 | COVER |
| 7 | H5264T | 2 | BOLT, HEX SOCKET |
| 8 | W1020A | 2 | WASHER, LOCK |
| 9 | A4067H | 2 | ELBOW |
| 10 | S40590 | 1 | SENSOR |
| 11 | H5275A | 1 | BOLT, HEX SOCKET |
| 12 | W1021A | 1 | WASHER, LOCK |
| 20 | XS02773 | 1 | CYLINDER |
| 21 | K53569 | 2 | SCREW, HEX SOCKET COUNTERSUNK |
| 22 | H5267A | 2 | BOLT, HEX SOCKET |
| 23 | W1020A | 2 | WASHER, LOCK |
| 24 | PM24056 | 1 | SHAFT |
| 25 | PM55012 | 1 | BUSHING, GUIDE |
| 26 | PM08TM1 | 1 | FLANGE |
| 26.1 | N4087K | 2 | SCREW, HEX SOCKET SET |
| 27 | H5265A | 3 | BOLT, HEX SOCKET |
| 28 | W1020A | 3 | WASHER, LOCK |
| 29 | H5265A | 1 | BOLT, HEX SOCKET |
| 30 | H5265A | 1 | BOLT, HEX SOCKET |
| 31 | W1020A | 1 | WASHER, LOCK |
| 32 | AA17R11 | 1 | CHUCK |
| 33 | PB83613 | 1 | DOG, SW |
| 34 | K5180G | 2 | SCREW, C/R PAN |
| 35 | PB83603 | 1 | DOG, SW |
| 36 | K5180C | 2 | SCREW, C/R PAN |
| 39 | XK05531 | 1 | BOARD, PRINTED CIRCUIT |
| 40 | H5266A | 2 | BOLT, HEX SOCKET |
| 41 | W1020A | 2 | WASHER, LOCK |
| 42 | W1039A | 2 | WASHER, FLAT |

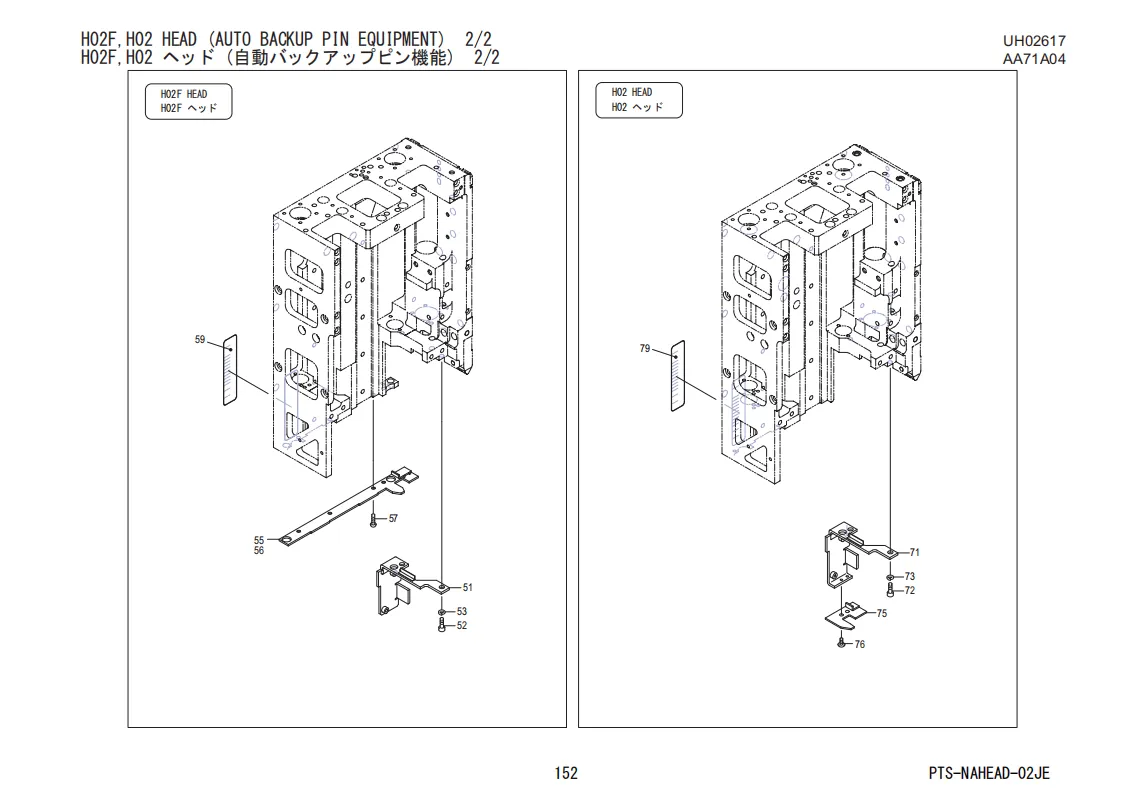

FUJI H02F, H02 Head (Auto Backup Pin Equipment) 2/2 - Spare Parts List
Complete spare parts breakdown for the H02F/H02 Head Auto Backup Pin functional unit (Part 2/2).
| No. | Drg. No. & Code No. | QTY | Description |
|---|---|---|---|
| 51 | 2MGTHH000900 | 1 | BKT |
| 52 | H5274A | 2 | BOLT, HEX SOCKET |
| 53 | W1021A | 2 | WASHER, LOCK |
| 55 | 2MGTHH001001 | 1 | PLATE |
| 56 | 2MGTHH002200 | 1 | PLATE |
| 57 | 2MGTHH002100 | 4 | SCREW, C/R PAN |
| 59 | 2MGTHH001201 | 1 | SEAL, BAR CODE |
| 71 | PB00ZKO | 1 | BKT |
| 72 | H5274A | 2 | BOLT, HEX SOCKET |
| 73 | W1021A | 2 | WASHER, LOCK |
| 75 | PB83646 | 1 | COVER, LOWER |
| 76 | PZ11901 | 2 | SCREW, C/R PAN |
| 79 | PX08500 | 1 | SEAL, BAR CODE |
“Ready to Source SMT Components & Machinery?” — Explore Our Flexible Solutions
⏱️
Fast & Safety Delivery
Shipment for SMT components is arranged within 24-48 hours. Usually takes 5-7 days via DHL or UPS with full tracking to prevent production downtime.
🛡️
No MOQ Limit
Flexible purchasing with no MOQ limit. Free samples can be offered on your request for testing and quality validation.
⭐
Assured Quality
Rigorous quality control for FUJI SMT machine parts. We ensure high durability and reliability to protect your manufacturing investment.
🎧
7/24 Technical Support
Products are just the beginning. Reach out 24/7 for expert SMT technical assistance, rapid response, and dedicated after-sales service.
GET IN TOUCH
Your One-Stop SMT
Your One-Stop SMT
Solution Partner
Streamline your procurement of SMT machinery, replacement parts, and accessories with certified quality and rapid global fulfillment.
- ✔ One-stop electronic assembly line solutions
- ✔ Strict quality inspection & testing
- ✔ Rapid worldwide shipping
