FUJI SMT Part H08M Working Head
Specification Data
| Brand | FUJI |
| Part Number | 2UGKHF000130 |
| Description | H08M Working Head |
| For | FUJI SMT NXT Machines |
Highlights:
Assured Quality
- Cost-Saving, Competitive Price
- Minimum Order Quantity: No Limit
- Fast Delivery: 5-7 Days
- Safety Delivery: Well protected package
- Services: 7/24 Guaranteed After-sales Service Service, Products Are Only The Beginning Of A Service, Not The End, Committed To Customer Satisfaction
- All Product Will Be Checked Carefully Before Shipment
- Providing Professional SMT One-stop Solutions
💡 Looking for bulk orders or specialized SMT one-stop solutions? Contact our 24/7 technical support team today for a fast quote!
-
+
Add to Inquiry Cart

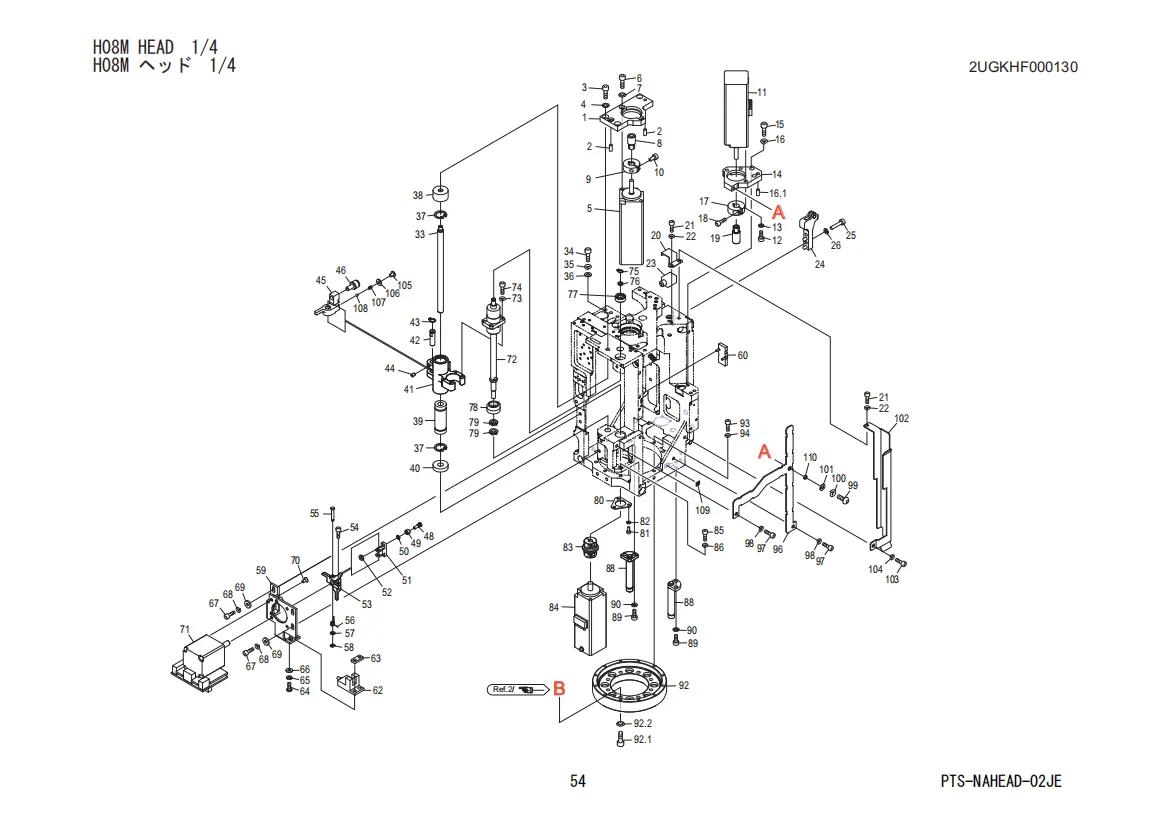

FUJI H08M Head - Spare Parts List & Diagram
Find corresponding part numbers, descriptions, and quantities. Use the search box below for quick lookup.
| No. (序号) | Drg. No. & Code No. (料号) | QTY (数量) | Description (描述) |
|---|---|---|---|
| 1 | 2MGKHF005001 | 1 | PLATE |
| 2 | R50035 | 2 | ROLLER, NEEDLE |
| 3 | H5275A | 3 | BOLT, HEX SOCKET |
| 4 | W1010A | 3 | WASHER, CONICAL |
| 5 | XM01231 | 1 | MOTOR, AC SERVO |
| 6 | H5275A | 2 | BOLT, HEX SOCKET |
| 7 | W1010A | 2 | WASHER, CONICAL |
| 8 | PMOCMZ4 | 1 | GEAR |
| 9 | PM76241 | 1 | COLLAR |
| 10 | H5275A | 1 | BOLT, HEX SOCKET |
| 11 | XM01013 | 1 | MOTOR, AC SERVO |
| 12 | H5275A | 2 | BOLT, HEX SOCKET |
| 13 | W1010A | 2 | WASHER, CONICAL |
| 14 | 2MGKHF004900 | 1 | PLATE |
| 15 | H5289N | 2 | BOLT, HEX SOCKET |
| 16 | W1022A | 2 | WASHER, LOCK |
| 16.1 | R50035 | 2 | ROLLER, NEEDLE |
| 17 | PM76241 | 1 | COLLAR |
| 18 | H5275A | 1 | BOLT, HEX SOCKET |
| 19 | PM06FL6 | 1 | GEAR |
| 20 | PB04BN0 | 1 | BKT, RETAINER |
| 21 | H52683 | 2 | BOLT, HEX SOCKET |
| 22 | W1020H | 2 | WASHER, LOCK |
| 23 | XS00842 | 1 | SENSOR, PRESSURE |
| 24 | AA06D10 | 1 | ROLLER |
| 25 | H5278A | 2 | BOLT, HEX SOCKET |
| 26 | W1021A | 2 | WASHER, LOCK |
| 33 | PZ48711 | 1 | SHAFT |
| 34 | H5274A | 1 | BOLT, HEX SOCKET |
| 35 | W1021A | 1 | WASHER, LOCK |
| 36 | W1040R | 1 | WASHER, FLAT |
| 37 | S10015 | 2 | CIR-CLIP |
| 38 | PG07300 | 1 | STOPPER |
| 39 | H42740 | 1 | BEARING, SLIDE |
| 40 | PG06500 | 1 | STOPPER |
| 41 | PMOCXR1 | 1 | SLIDER |
| 42 | PM76232 | 1 | PIN |
| 43 | S1027A | 1 | CIR-CLIP |
| 44 | N4019C | 1 | SCREW, HEX SOCKET SET |
| 45 | PMOCXS2 | 1 | ARM |
| 46 | K1090B | 1 | CAM FOLLOWER |
| 48 | PM04565 | 2 | PIN, ROLLER |
| 49 | PM04574 | 2 | ROLLER |
| 50 | PM04552 | 2 | COLLAR |
| 51 | PH00907 | 1 | ARM |
| 52 | N1074Z | 2 | NUT, HEX |
| 53 | PM064M2 | 1 | ARM |
| 54 | H5265A | 1 | BOLT, HEX SOCKET |
| 55 | PM46182 | 1 | PIN |
| 56 | PZ04721 | 1 | SPRING, TORSION |
| 57 | W1039K | 1 | WASHER, FLAT |
| 58 | S1003D | 1 | CIR-CLIP |
| 59 | 2MGKHF004100 | 1 | BKT, MOTOR |
| 60 | H62140 | 1 | PLATE |
| 62 | S4029E | 1 | SENSOR |
| 63 | PP00171 | 1 | NUT |
| 64 | K5256A | 2 | SCREW, HEX SOCKET BUTTON |
| 65 | W1021A | 2 | WASHER, LOCK |
| 66 | W1040R | 2 | WASHER, FLAT |
| 67 | H5275A | 4 | BOLT, HEX SOCKET |
| 68 | W1021A | 4 | WASHER, LOCK |
| 69 | W1042A | 4 | WASHER, FLAT |
| 70 | K5169R | 4 | SCREW, C/R COUNTERSUNK |
| 71 | XM01173 | 1 | MOTOR, STEPPING |
| 72 | XB03791 | 1 | BALL SCREW |
| 73 | H5268Z | 4 | BOLT, HEX SOCKET |
| 74 | W1020H | 4 | WASHER, LOCK |
| 75 | S10267 | 1 | CIR-CLIP |
| 76 | PM04642 | 1 | COLLAR |
| 77 | H4581B | 1 | BEARING, MINIATURE |
| 78 | H4897A | 1 | BEARING |
| 79 | PM04723 | 2 | NUT |
| 80 | PB97201 | 1 | RETAINER, BEARING |
| 81 | H5265A | 3 | BOLT, HEX SOCKET |
| 82 | W1020A | 3 | WASHER, LOCK |
| 83 | XK04101 | 1 | COUPLING |
| 84 | XM00256 | 1 | MOTOR, AC SERVO |
| 85 | H5276A | 2 | BOLT, HEX SOCKET |
| 86 | W1021A | 2 | WASHER, LOCK |
| 88 | AB22102 | 2 | PIN, REFERENCE |
| 89 | H5275A | 4 | BOLT, HEX SOCKET |
| 90 | W1021A | 4 | WASHER, LOCK |
| 92 | XB03710 | 1 | BEARING |
| 92.1 | H5275A | 8 | BOLT, HEX SOCKET |
| 92.2 | W1010A | 8 | WASHER, CONICAL |
| 93 | H52680 | 12 | BOLT, HEX SOCKET |
| 94 | W1020H | 12 | WASHER, LOCK |
| 96 | PBOADC3 | 1 | BKT, WIRING |
| 97 | H5273A | 2 | BOLT, HEX SOCKET |
| 98 | W1021A | 2 | WASHER, LOCK |
| 99 | K5255T | 1 | SCREW, HEX SOCKET BUTTON |
| 100 | W1021A | 1 | WASHER, LOCK |
| 101 | W1038R | 1 | WASHER, FLAT |
| 102 | 2MGKHF009401 | 1 | COVER, WIRING |
| 103 | H5273A | 1 | BOLT, HEX SOCKET |
| 104 | W1021A | 1 | WASHER, LOCK |
| 105 | K52543 | 1 | SCREW, C/R FLAT |
| 106 | W1040R | 1 | WASHER, FLAT |
| 107 | PZ49600 | 1 | SPRING |
| 108 | H5065B | 1 | BALL, STEEL |
| 109 | PX00182 | 1 | NAMEPLATE |
| 110 | S61279 | 1 | SPACER |

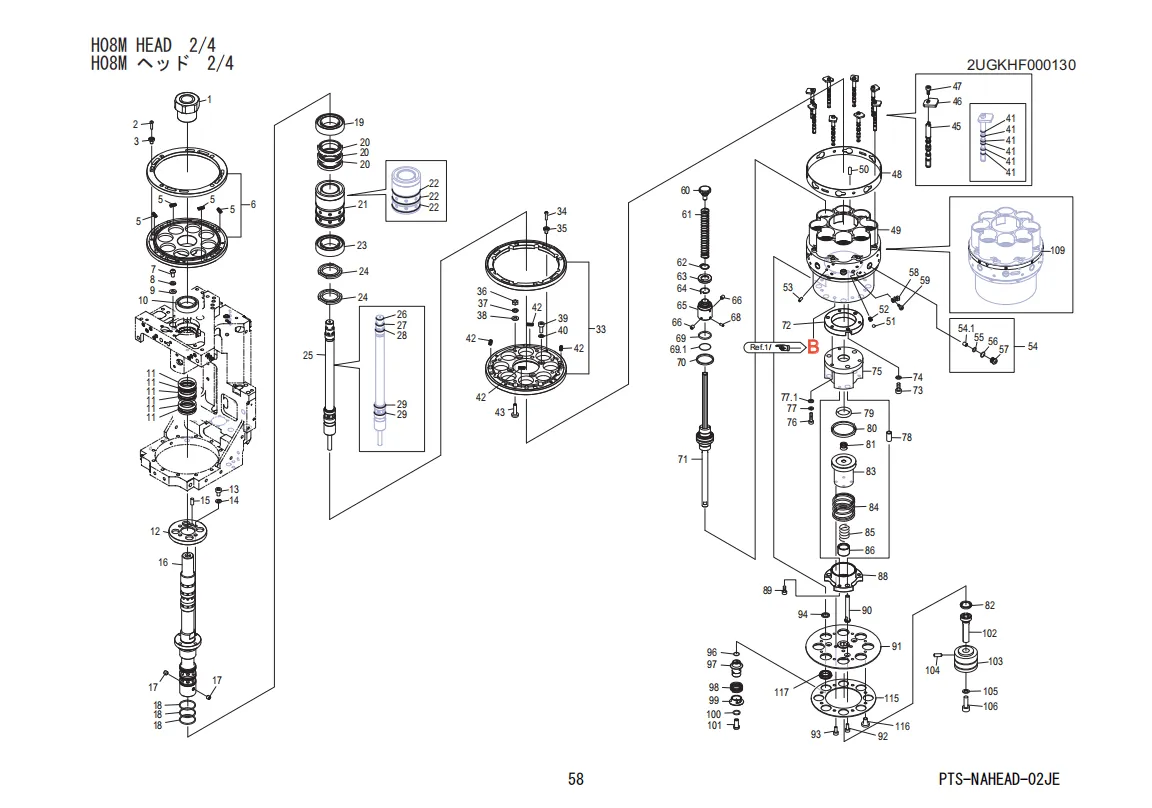

FUJI H08M Head 2/4 - Spare Parts List
Complete spare parts breakdown for the H08M head assembly (Part 2/4). Use the search box below to find specific parts.
| No. | Drg. No. & Code No. | QTY | Description |
|---|---|---|---|
| 1 | 2MGKHF002301 | 1 | RING, LOCKING |
| 2 | PZ39231 | 4 | SCREW, C/R PAN |
| 3 | PM04893 | 4 | COLLAR |
| 5 | PZ56360 | 4 | SPRING |
| 6 | PM0CMT7 | 1 | GEAR |
| 7 | K5255T | 3 | SCREW, HEX SOCKET BUTTON |
| 8 | W1021A | 3 | WASHER, LOCK |
| 9 | W1040R | 3 | WASHER, FLAT |
| 10 | H4197A | 1 | BEARING |
| 11 | H11791 | 6 | PACKING |
| 12 | PM0CMY3 | 1 | GEAR |
| 13 | H5275A | 4 | BOLT, HEX SOCKET |
| 14 | W1021A | 4 | WASHER, LOCK |
| 15 | R50035 | 1 | ROLLER, NEEDLE |
| 16 | PM0CNE5 | 1 | SHAFT, CENTER |
| 17 | N4018A | 2 | SCREW, HEX SOCKET SET |
| 18 | A5055C | 3 | O RING |
| 19 | 2MGKHF001800 | 1 | BEARING |
| 20 | H11793 | 3 | PACKING |
| 21 | 2MGKHF007000 | 1 | COLLAR, BEARING |
| 22 | A60553 | 3 | O RING |
| 23 | 2MGKHF001800 | 1 | BEARING |
| 24 | PM05FB1 | 2 | RETAINER, BEARING |
| 25 | AA8EE03 | 1 | PIPE |
| 26 | A5055D | 1 | O RING |
| 27 | A5055E | 1 | O RING |
| 28 | A5055F | 1 | O RING |
| 29 | A5055B | 2 | O RING |
| 33 | PM0CMS7 | 1 | GEAR |
| 34 | PZ39231 | 4 | SCREW, C/R PAN |
| 35 | PM04893 | 4 | COLLAR |
| 36 | N10795 | 8 | NUT, HEX |
| 37 | W1021A | 8 | WASHER, LOCK |
| 38 | W1040R | 8 | WASHER, FLAT |
| 39 | H5275A | 4 | BOLT, HEX SOCKET |
| 40 | W1010A | 4 | WASHER, CONICAL |
| 41 | A5053C | 48 | O RING |
| 42 | 2MGKHF004600 | 4 | SPRING |
| 43 | PM0D2T3 | 8 | BOLT, CLAMP |
| 45 | XS03764 | 8 | SPOOL |
| 46 | PM0LKEO | 8 | PUSHER |
| 47 | PZ53012 | 8 | BOLT, HEX SOCKET |
| 48 | PB04BR4 | 1 | RING |
| 49 | 2MGKHF001407 | 1 | HOLDER, ROTARY |
| 50 | R50035 | 1 | ROLLER, NEEDLE |
| 51 | H61885 | 2 | BALL, STEEL |
| 52 | PZ16242 | 2 | SPRING |
| 53 | H21927 | 2 | PIN, PARALLEL |
| 54 | AA19H05 | 8 | FILTER |
| 54.1 | XH00801 | 8 | FILTER |
| 55 | A5188S | 8 | O RING |
| 56 | A51906 | 8 | O RING |
| 57 | PH00575 | 8 | HOLDER |
| 58 | PM59052 | 8 | GUIDE |
| 59 | H5265A | 8 | BOLT, HEX SOCKET |
| 60 | PM0K8K5 | 8 | PUSHER |
| 61 | PZ59670 | 8 | SPRING |
| 62 | PB059R0 | 8 | CIR-CLIP |
| 63 | PM0CMW6 | 8 | GEAR |
| 64 | PZ59771 | 8 | SPRING |
| 65 | 2MGKHF001705 | 8 | GEAR |
| 66 | N4087K | 16 | SCREW, HEX SOCKET SET |
| 68 | PM0D8M0 | 8 | PIN |
| 69 | A5053K | 8 | O RING |
| 69.1 | A60535 | 8 | O RING |
| 70 | PM0D2X0 | 8 | COLLAR |
| 71 | XS03743 | 8 | SHAFT, SPLINE |
| 72 | PM0D2A0 | 1 | RETAINER, BEARING |
| 73 | H5275A | 3 | BOLT, HEX SOCKET |
| 74 | W1010A | 3 | WASHER, CONICAL |
| 75 | PM0ESE1 | 1 | CYLINDER |
| 76 | H5268X | 3 | BOLT, HEX SOCKET |
| 77 | W1020H | 3 | WASHER, LOCK |
| 77.1 | W11081 | 3 | WASHER, FLAT |
| 78 | PM0D2C0 | 3 | GUIDE |
| 79 | H11790 | 1 | PACKING |
| 80 | H11799 | 1 | PACKING |
| 81 | H11792 | 2 | PACKING |
| 82 | H11797 | 1 | PACKING |
| 83 | PM0ESF1 | 1 | PISTON |
| 84 | PZ53260 | 1 | SPRING |
| 85 | 2MGKHF009200 | 1 | SPRING |
| 86 | 2MGKHF009300 | 1 | STOPPER |
| 88 | PM0GGL0 | 1 | COVER |
| 89 | H5268T | 3 | BOLT, HEX SOCKET |
| 90 | 2MGKHF005701 | 3 | SHAFT |
| 91 | 2AGKHF001601 | 1 | PLATE, LOCATING |
| 92 | 2MGKHF007500 | 3 | BOLT, HEX SOCKET |
| 93 | 2MGKHF007500 | 4 | BOLT, HEX SOCKET |
| 94 | PZ60910 | 8 | RING, FELT |
| 96 | A60569 | 8 | O RING |
| 97 | 2AGKHF001701 | 8 | SYRINGE |
| 98 | PZ39281 | 8 | SPRING |
| 99 | PM0FEC2 | 8 | COLLAR |
| 100 | 2MGKHF009700 | 8 | O RING |
| 101 | PMOFEE2 | 8 | BOLT |
| 102 | PMOL9R3 | 1 | SHAFT |
| 103 | 2MGKHF007700 | 1 | RING |
| 104 | N4012A | 1 | SCREW, HEX SOCKET SET |
| 105 | W1011A | 1 | WASHER, CONICAL |
| 106 | H5289A | 1 | BOLT, HEX SOCKET |
| 109 | 2MGKHF011500 | 1 | NAMEPLATE |
| 115 | 2MGKHF008000 | 1 | PLATE, RETAINING |
| 116 | H63859 | 8 | BOLT, HEX SOCKET |
| 117 | H4447A | 8 | BEARING, MINIATURE |

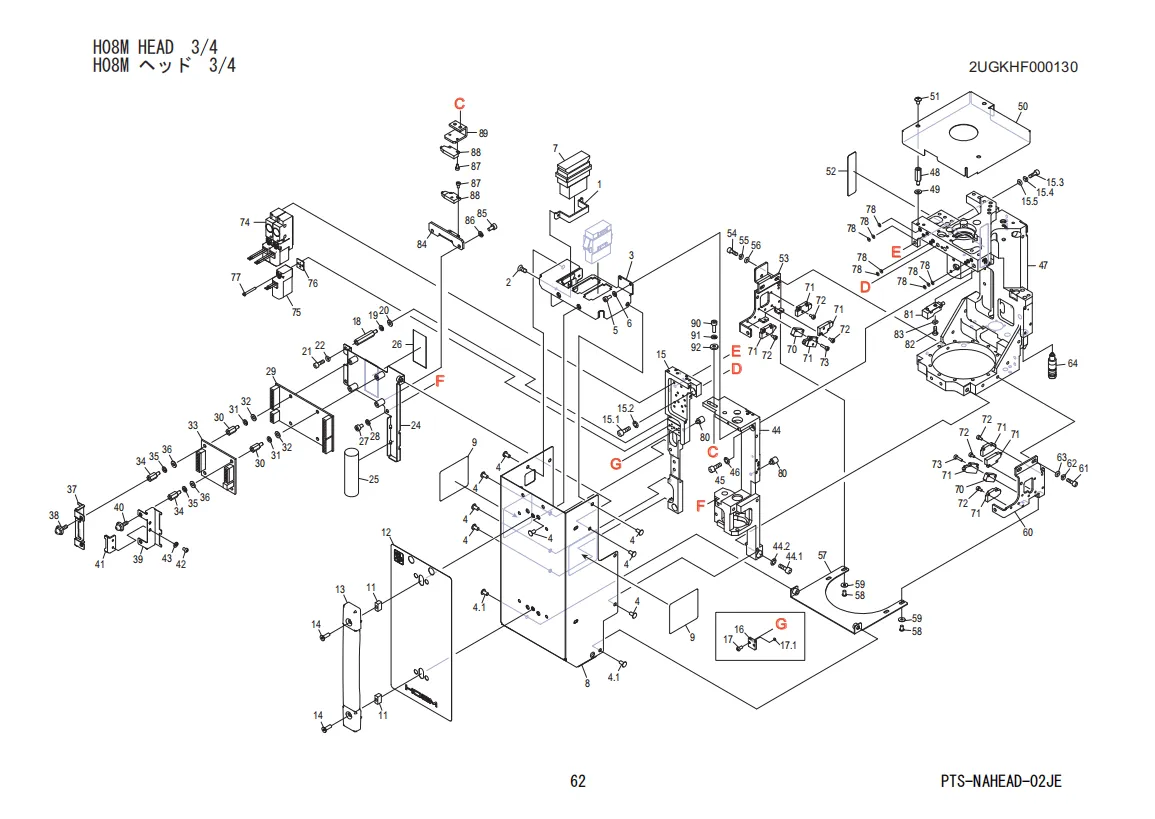

FUJI H08M Head 3/4 - Spare Parts List
Complete spare parts breakdown for the H08M head assembly (Part 3/4).
| No. | Drg. No. & Code No. | QTY | Description |
|---|---|---|---|
| 1 | PB32071 | 1 | RETAINER |
| 2 | K5169M | 2 | SCREW, C/R COUNTERSUNK |
| 3 | PB06ZS1 | 1 | COVER |
| 4 | K62149 | 11 | SCREW, C/R FLAT |
| 4.1 | K62149 | 2 | SCREW, C/R FLAT |
| 5 | H5265A | 2 | BOLT, HEX SOCKET |
| 6 | W1020A | 2 | WASHER, LOCK |
| 7 | K55286 | 1 | CONNECTOR |
| 8 | 2MGKHF003202 | 1 | COVER |
| 9 | PX05132 | 2 | NAMEPLATE, CAUTION |
| 11 | PMOFTY1 | 2 | SPACER |
| 12 | 2MGKHF003301 | 1 | NAMEPLATE |
| 13 | T50032 | 1 | HANDLE |
| 14 | K5358A | 2 | SCREW, HEX SOCKET COUNTERSUNK |
| 15 | PMOFEL9 | 1 | BASE |
| 15.1 | H5288A | 2 | BOLT, HEX SOCKET |
| 15.2 | W1011A | 2 | WASHER, CONICAL |
| 15.3 | H5275A | 1 | BOLT, HEX SOCKET |
| 15.4 | W1021A | 1 | WASHER, LOCK |
| 15.5 | W1040R | 1 | WASHER, FLAT |
| 16 | 2MGKHF012101 | 1 | PLATE |
| 17 | K5175R | 2 | SCREW, C/R PAN |
| 17.1 | A50529 | 1 | O RING |
| 18 | S3057F | 2 | SPACER |
| 19 | W1021A | 2 | WASHER, LOCK |
| 20 | W1040R | 2 | WASHER, FLAT |
| 21 | H5274A | 2 | BOLT, HEX SOCKET |
| 22 | W1021A | 2 | WASHER, LOCK |
| 24 | PB0AEG2 | 1 | COVER, TERMINAL |
| 25 | H1021H | 1 | BATTERY |
| 26 | 2MGKHF004700 | 1 | TAPE |
| 27 | H5274A | 2 | BOLT, HEX SOCKET |
| 28 | W1021A | 2 | WASHER, LOCK |
| 29 | 2AGKHF000101 | 1 | BOARD, PRINTED CIRCUIT |
| 30 | S32446 | 4 | SPACER |
| 31 | W1021A | 4 | WASHER, LOCK |
| 32 | W1040R | 4 | WASHER, FLAT |
| 33 | 2AGKHF000200 | 1 | BOARD, PRINTED CIRCUIT |
| 34 | S32446 | 4 | SPACER |
| 35 | W1021A | 4 | WASHER, LOCK |
| 36 | W1040R | 4 | WASHER, FLAT |
| 37 | 2MGKHF010700 | 1 | RETAINER, WIRING |
| 38 | K51981 | 2 | SCREW, WASHER ASS'Y |
| 39 | 2MGKHF010800 | 1 | RETAINER, WIRING |
| 40 | K51981 | 2 | SCREW, WASHER ASS'Y |
| 41 | PB04WT0 | 1 | RETAINER, WIRING |
| 42 | K5175N | 2 | SCREW, C/R PAN |
| 43 | W1020A | 2 | WASHER, LOCK |
| 44 | 2MGKHF004500 | 1 | BASE |
| 44.1 | H5290A | 1 | BOLT, HEX SOCKET |
| 44.2 | W1011A | 1 | WASHER, CONICAL |
| 45 | H5288A | 2 | BOLT, HEX SOCKET |
| 46 | W1011A | 2 | WASHER, CONICAL |
| 47 | 2AGKHF001003 | 1 | BODY |
| 48 | S3062N | 3 | SPACER |
| 49 | W1040R | 3 | WASHER, FLAT |
| 50 | 2MGKHF010500 | 1 | COVER |
| 51 | K51710 | 3 | SCREW, C/R TRUSS |
| 52 | PX09950 | 1 | SEAL, BAR CODE |
| 53 | 2MGKHF004301 | 1 | BKT, SENSOR |
| 54 | H5275A | 2 | BOLT, HEX SOCKET |
| 55 | W1021A | 2 | WASHER, LOCK |
| 56 | W1042A | 2 | WASHER, FLAT |
| 57 | PB080N2 | 1 | COVER, LOWER |
| 58 | 2MGKHF011901 | 4 | SCREW, C/R PAN |
| 59 | 2MGKHF002800 | 4 | WASHER |
| 60 | 2MGKHF004200 | 1 | BKT, SENSOR |
| 61 | H5275A | 2 | BOLT, HEX SOCKET |
| 62 | W1021A | 2 | WASHER, LOCK |
| 63 | W1042A | 2 | WASHER, FLAT |
| 64 | XB00763 | 1 | VALVE, PRESSURE REDUCING |
| 70 | PBOASZ0 | 2 | SPACER |
| 71 | S61582 | 4 | SENSOR |
| 72 | H5264T | 12 | BOLT, HEX SOCKET |
| 73 | H5267A | 4 | BOLT, HEX SOCKET |
| 74 | XB03330 | 2 | VALVE, SOL |
| 75 | H1126W | 1 | VALVE, SOL |
| 76 | PJ24640 | 1 | PLATE, ACRYLIC |
| 77 | K51753 | 2 | SCREW, C/R PAN |
| 78 | A5202A | 8 | O RING |
| 80 | S1058B | 2 | SILENCER |
| 81 | S40264 | 1 | SENSOR |
| 82 | K5256E | 1 | SCREW, HEX SOCKET BUTTON |
| 83 | W1021A | 1 | WASHER, LOCK |
| 84 | 2MGKHF004800 | 1 | BKT, SENSOR |
| 85 | H5274A | 2 | BOLT, HEX SOCKET |
| 86 | W1021A | 2 | WASHER, LOCK |
| 87 | H5265A | 4 | BOLT, HEX SOCKET |
| 88 | S61583 | 1 | SENSOR |
| 89 | PB04BM0 | 1 | BKT, SENSOR |
| 90 | H5276A | 2 | BOLT, HEX SOCKET |
| 91 | W1021A | 2 | WASHER, LOCK |
| 92 | W1042A | 2 | WASHER, FLAT |
FUJI H08M Head 4/4 - Pneumatic System Parts
Spare parts breakdown for the H08M head pneumatic and air system (Part 4/4).
| No. | Drg. No. & Code No. | QTY | Description |
|---|---|---|---|
| 1 | XB03330 | 2 | VALVE, SOL |
| 2 | XB00763 | 1 | VALVE, PRESSURE REDUCING |
| 3 | XS03764 | 8 | SPOOL |
| 5 | H1126W | 2 | VALVE, SOL |
| 6 | S1058B | 2 | SILENCER |
| 7 | H62140 | 1 | PLATE |
| 8 | XS00842 | 1 | SENSOR, PRESSURE |
| 9 | PJ06032 | 1 | PLATE, ACRYLIC |
| 10 | H1122D | 1 | VALVE, SOL |
| 11 | XS01844 | 1 | CYLINDER |
| 13 | PJ24640 | 1 | PLATE, ACRYLIC |

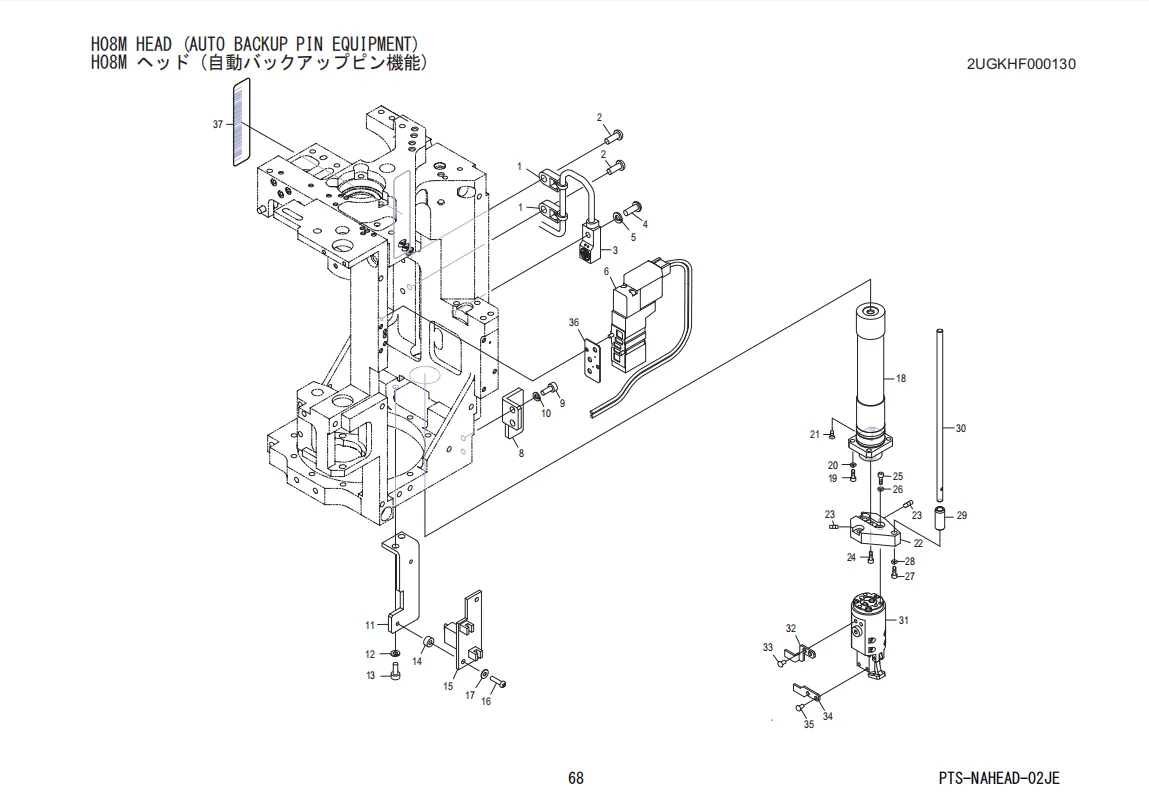

FUJI H08M Head - Auto Backup Pin Equipment
Spare parts breakdown for the H08M Head Auto Backup Pin functional unit.
| No. | Drg. No. & Code No. | QTY | Description |
|---|---|---|---|
| 1 | S2025C | 2 | SHEET |
| 2 | K5225A | 2 | SCREW, C/R PAN |
| 3 | S40590 | 1 | SENSOR |
| 4 | K5256A | 1 | SCREW, HEX SOCKET BUTTON |
| 5 | W1021A | 1 | WASHER, LOCK |
| 6 | H1122D | 1 | VALVE, SOL |
| 8 | PBOAMF0 | 1 | STOPPER |
| 9 | H5275A | 2 | BOLT, HEX SOCKET |
| 10 | W1021A | 2 | WASHER, LOCK |
| 11 | PB04HE0 | 1 | BKT |
| 12 | W1021A | 2 | WASHER, LOCK |
| 13 | H5275A | 2 | BOLT, HEX SOCKET |
| 14 | S3227R | 2 | SPACER |
| 15 | 2AGKHF000300 | 1 | BOARD, PRINTED CIRCUIT |
| 16 | K5175X | 2 | SCREW, C/R PAN |
| 17 | W1020A | 2 | WASHER, LOCK |
| 18 | XS01844 | 1 | CYLINDER |
| 19 | H5267A | 3 | BOLT, HEX SOCKET |
| 20 | W1020A | 3 | WASHER, LOCK |
| 21 | K51684 | 1 | SCREW, C/R COUNTERSUNK |
| 22 | PM08TL1 | 1 | FLANGE |
| 23 | N4087K | 2 | SCREW, HEX SOCKET SET |
| 24 | H5265A | 1 | BOLT, HEX SOCKET |
| 25 | H5265A | 3 | BOLT, HEX SOCKET |
| 26 | W1020A | 3 | WASHER, LOCK |
| 27 | H5266A | 1 | BOLT, HEX SOCKET |
| 28 | W1020A | 1 | WASHER, LOCK |
| 29 | PM55002 | 1 | BUSHING, GUIDE |
| 30 | PMODMK0 | 1 | SHAFT |
| 31 | AA17R11 | 1 | CHUCK |
| 32 | PB04HF0 | 1 | DOG |
| 33 | K5180G | 2 | SCREW, C/R PAN |
| 34 | PB04HG0 | 1 | DOG |
| 35 | K5180C | 2 | SCREW, C/R PAN |
| 36 | PJ06032 | 1 | PLATE, ACRYLIC |
| 37 | PX09960 | 1 | SEAL, BAR CODE |
“Ready to Source SMT Components & Machinery?” — Explore Our Flexible Solutions
⏱️
Fast & Safety Delivery
Shipment for SMT components is arranged within 24-48 hours. Usually takes 5-7 days via DHL or UPS with full tracking to prevent production downtime.
🛡️
No MOQ Limit
Flexible purchasing with no MOQ limit. Free samples can be offered on your request for testing and quality validation.
⭐
Assured Quality
Rigorous quality control for FUJI SMT machine parts. We ensure high durability and reliability to protect your manufacturing investment.
🎧
7/24 Technical Support
Products are just the beginning. Reach out 24/7 for expert SMT technical assistance, rapid response, and dedicated after-sales service.
GET IN TOUCH
Your One-Stop SMT
Your One-Stop SMT
Solution Partner
Streamline your procurement of SMT machinery, replacement parts, and accessories with certified quality and rapid global fulfillment.
- ✔ One-stop electronic assembly line solutions
- ✔ Strict quality inspection & testing
- ✔ Rapid worldwide shipping
