SMT Feeder Panasonic KXFW1L10A00 88MM With Sensor
Specification Data
| Brand | Panasonic |
| Part Number | KXFW1L10A00 |
| Description | 88MM Double With Sensor Depth 21mm |
| For | Panasonic CM/NPM SMT Machines |
Highlights:
Assured Quality
- Cost-Saving, Competitive Price
- Minimum Order Quantity: No Limit
- Fast Delivery: 5-7 Days
- Safety Delivery: Well protected package
- Services: 7/24 Guaranteed After-sales Service Service, Products Are Only The Beginning Of A Service, Not The End, Committed To Customer Satisfaction
- All Product Will Be Checked Carefully Before Shipment
- Providing Professional SMT One-stop Solutions
-
+
Add to Inquiry Cart

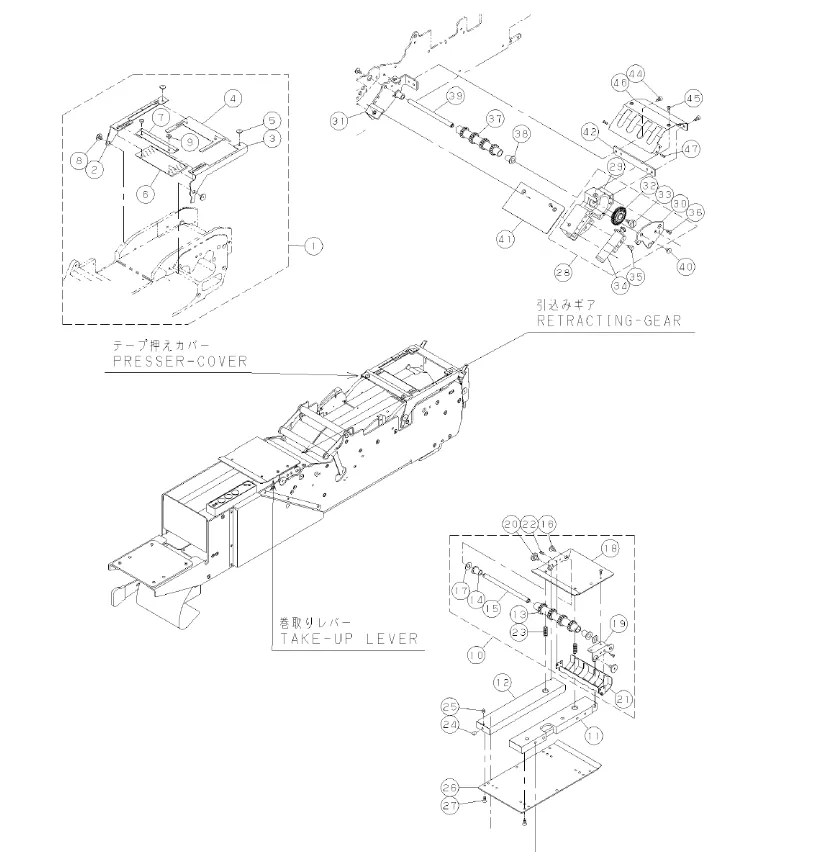

| PARTS LAYOUT | Kit No. | KXFW1L10A00 | Section No. | |
|---|---|---|---|---|
| Kit Name | Tape Feeder; 88 mm; depth 21mm; Splice sens; Type A | 1-A | ||
| Ref No | Part No. | Part Name | Remarks | Q'ty |
| 1 | N610002651AB | PRESSER-COVER | 1 | |
| 2 | KXFA1PR5B01 | COVER | 1 | |
| 3 | N210005321AA | COVER | 1 | |
| 4 | N210005323AB | GUIDE | 1 | |
| 5 | KXFA1PQ5B00 | PIN | 2 | |
| 6 | N210005324AA | GUIDE | 1 | |
| 7 | N210005325AA | GUIDE | 1 | |
| 8 | N210001880AA | PIN | 2 | |
| 9 | KXF0DYAJA00 | SCREW | S020659-200(Delivery drawing available) | 2 |
| 10 | N610002653AB | RETRACTING-LEVER | 1 | |
| 11 | N610002654AA | PLATE | 1 | |
| 12 | N610002655AA | PLATE | 1 | |
| 13 | N210151828AA | GEAR | 1 | |
| 14 | KXF0CWGAA00 | BUSH | 80F-0610 | 2 |
| 15 | N210005306AA | PIN | 1 | |
| 16 | KXFA1KAAA00 | PIN | 1 | |
| 17 | N210005307AA | WASHER | 2 | |
| 18 | N210005329AA | LEVER | 1 | |
| 19 | KXFA1NSAA00 | LEVER | 1 | |
| 20 | KXFA1KRAA00 | PIN | 2 | |
| 21 | N210154558AB | COMB | 1 | |
| 22 | XSN25+6VW | SCREW | Cross recessed Pan head machine screw M2.5X6-A2-70 | 6 |
| 23 | N210114131AA | SPRING | 2 | |
| 24 | KXF0DYAZA00 | MAGNET | NEO33 | 1 |
| 25 | XXE25C3FP | SCREW | Hexagon socket set screw Flat point M2.5X3-45H SCHP | 1 |
| 26 | N210005343AA | GUIDE | 1 | |
| 27 | XSS25+6VW | SCREW | Cross recessed Countersunk head machine screw M2.5X6-A2-70 | 6 |
| 28 | N610066541AC | RETRACTING-GEAR | 1 | |
| 29 | N610002658AB | HOUSING | 1 | |
| 30 | N610002659AA | BRACKET R | 1 | |
| 31 | N610002660AA | BRACKET L | 1 | |
| 32 | N210050452AA | GEAR | 1 | |
| 33 | KXFA1L0AA00 | PIN | 1 | |
| 34 | N510046420AA | RETRACTING-MOTOR | LA14G-371VJ | 1 |
| 35 | N510017337AA | BOLT | Hexagon socket head cap screw M3X6-10.9 A2J (Trivalent) | 2 |
| 36 | XSS3+8VW | SCREW | Cross recessed Countersunk head machine screw M3X8-A2-70 | 3 |
| 37 | N210151828AA | GEAR | 1 | |
| 38 | KXF0CWGAA00 | BUSH | 80F-0610 | 2 |
| 39 | N210005314AA | PIN | 1 | |
| 40 | KXFA1KAAA00 | PIN | 2 | |
| 41 | N210005341AA | GUIDE | 1 | |
| 42 | N210005334AA | PLATE | 1 | |
| 44 | N510017337AA | BOLT | Hexagon socket head cap screw M3X6-10.9 A2J (Trivalent) | 4 |
| 45 | XSS25+6VW | SCREW | Cross recessed Countersunk head machine screw M2.5X6-A2-70 | 4 |
| 46 | N210154559AB | COMB | 1 | |
| 47 | XSN25+6VW | SCREW | Cross recessed Pan head machine screw M2.5X6-A2-70 | 4 |

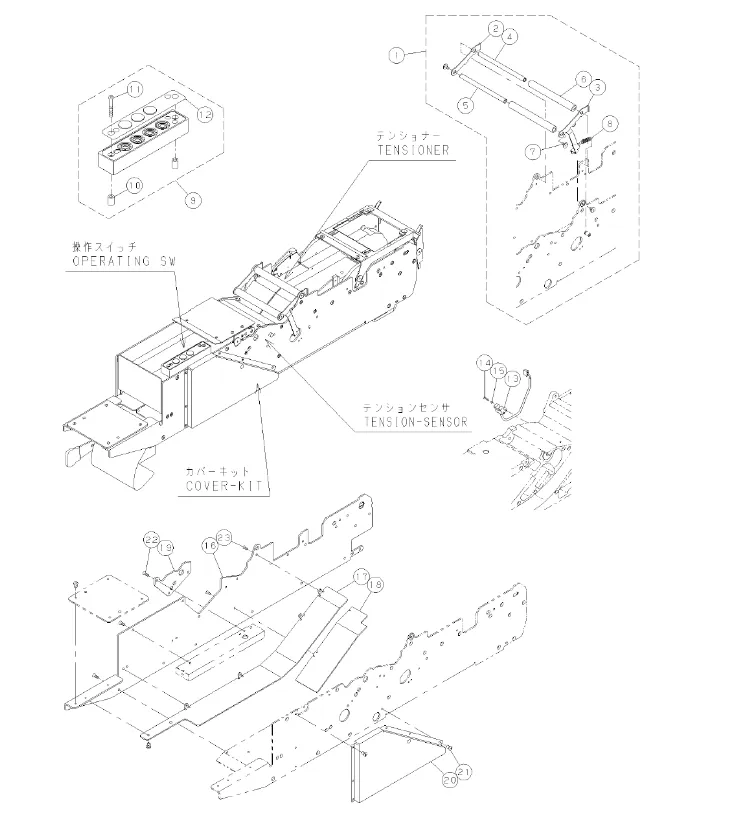

| PARTS LAYOUT | Kit No. | KXFW1L10A00 | Section No. | |
|---|---|---|---|---|
| Kit Name | Tape Feeder; 88 mm; depth 21mm; Splice sens; Type A | 1-B | ||
| Ref No | Part No. | Part Name | Remarks | Q'ty |
| 1 | N610002661AB | TENSIONER | 1 | |
| 2 | N210005328AA | LEVER(L) | 1 | |
| 3 | N210005327AA | LEVER(R) | 1 | |
| 4 | N210005303AA | PIN | 1 | |
| 5 | N210005304AA | PIN | 1 | |
| 6 | N210005302AA | ROLLER | 2 | |
| 7 | N210044529AA | PIN | 1 | |
| 8 | KXF0DK6AA00 | SPRING | SP(Drawing available KXF0DK6AA00) | 1 |
| 9 | N610033141AA | OPERATING-SW | 1 | |
| 10 | KXF08WXAA00 | SPACER | C-260 | 2 |
| 11 | N510018959AA | SCREW | Cross recessed Pan head machine screw M2.5X18-4.8 A2J (Trivalent) | 2 |
| 12 | KXF0DWTLA00 | SEAL | NP(Drawing available KXF0DWTLA00) | 1 |
| 13 | N510037013AA | SENSOR | PM-F24-M3 | 1 |
| 14 | N510002401AA | SCREW | SUS pan head M2X8+TB2430 | 1 |
| 15 | N510018477AA | WASHER | Small round-plain washer 2 10H A2J (Trivalent) | 1 |
| 16 | N210005318AA | BASE PLATE(L) | 1 | |
| 17 | N210005340AA | GUIDE(L) | 1 | |
| 18 | N210005338AA | GUIDE(L) | 1 | |
| 19 | N210005350AA | COVER | 1 | |
| 20 | N210005349AA | COVER | 1 | |
| 21 | XSN25+4VW | SCREW | Cross recessed Pan head machine screw M2.5X4-A2-70 | 9 |
| 22 | XSS3+8VW | SCREW | Cross recessed Countersunk head machine screw M3X8-A2-70 | 20 |
| 23 | XSS25+6VW | SCREW | Cross recessed Countersunk head machine screw M2.5X6-A2-70 | 8 |
