SMT Feeders Panasonic KXFW1KS5A00 8MM With Sensor
Specification Data
| Brand | Panasonic |
| Part Number | KXFW1KS5A00 |
| Description | 8MM Double With Sensor |
| For | Panasonic CM/NPM SMT Machines |
Assured Quality
- Cost-Saving, Competitive Price
- Minimum Order Quantity: No Limit
- Fast Delivery: 5-7 Days
- Safety Delivery: Well protected package
- Services: 7/24 Guaranteed After-sales Service Service, Products Are Only The Beginning Of A Service, Not The End, Committed To Customer Satisfaction
- All Product Will Be Checked Carefully Before Shipment
- Providing Professional SMT One-stop Solutions

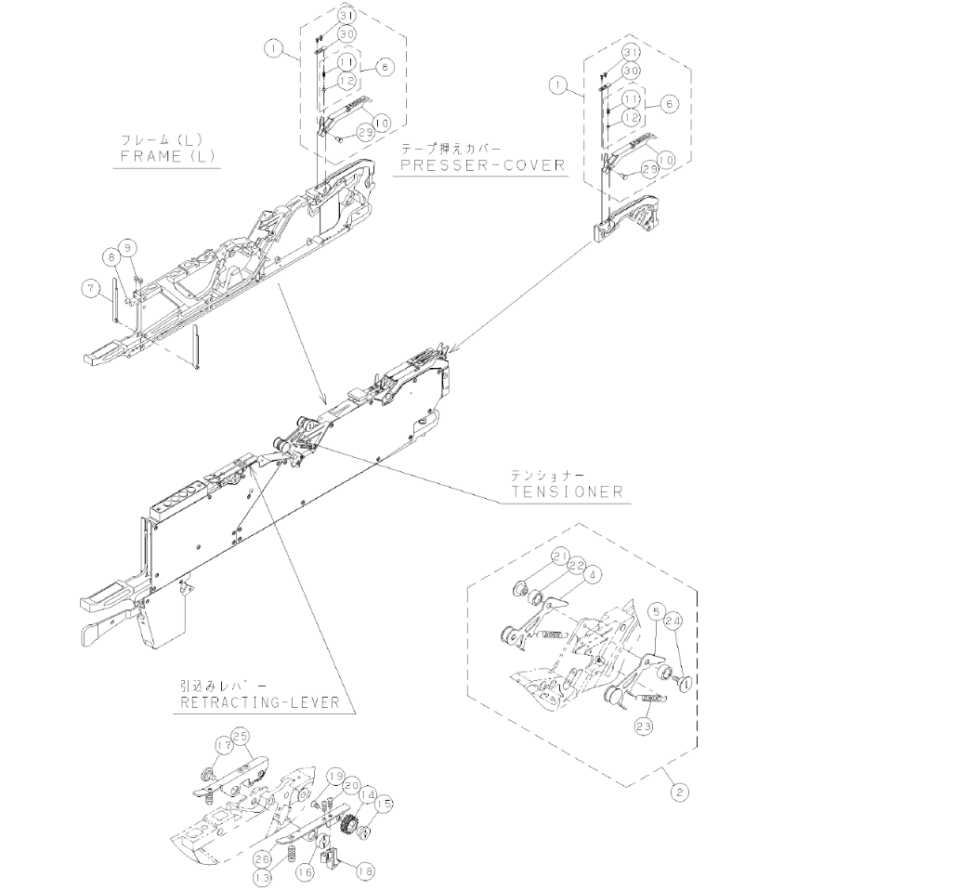

| PARTS LAYOUT | Kit No. | KXFW1KS5A00 | Section No. | |
|---|---|---|---|---|
| Kit Name | Tape Feeder; 8 mm Double; Splice sensing; Type A | 1-A | ||
| Ref No | Part No. | Part Name | Remarks | Q'ty |
| 1 | N610092834AA | PRESSER-COVER | 2 | |
| 2 | N610025477AB | TENSIONER | 1 | |
| 4 | N610025484AB | LEVER | 1 | |
| 5 | N610025485AB | LEVER | 1 | |
| 6 | N610071897AA | Fulcrum spring | 2 | |
| 7 | N210123197AA | COVER | 2 | |
| 8 | KXF0DYAZA00 | MAGNET | NEO33 | 2 |
| 9 | XXE25C3FP | SCREW | Hexagon socket set screw Flat point M2.5X3-45H SCHP | 2 |
| 10 | N210103441AA | COVER | 2 | |
| 11 | N210017141AA | SPRING | 2 | |
| 12 | N210071635AA | PIN | 2 | |
| 13 | N210114131AA | SPRING | 2 | |
| 14 | N210047118AB | GEAR | 2 | |
| 15 | KXFA1KPAA00 | PIN | 2 | |
| 16 | KXFA1KQAA00 | PIN | 1 | |
| 17 | KXFA1KRAA00 | PIN | 1 | |
| 18 | N210116209AA | COMB | 2 | |
| 19 | XSS3+6VW | SCREW | Cross recessed Countersunk head machine screw M3X6-A2-70 | 2 |
| 20 | N510002400AA | SCREW | SUSB Taptite pan head 2.6 8 | 4 |
| 21 | KXFA1KFAA00 | PIN | 1 | |
| 22 | KXFA1KHBA00 | ROLLER | 2 | |
| 23 | KXF0DK4AB00 | SPRING | DA KXF0DK4AB00 | 2 |
| 24 | N210045625AA | PIN | 1 | |
| 25 | N210120308AA | LEVER | 1 | |
| 26 | N210120309AA | LEVER | 1 | |
| 29 | N210071634AA | PIN | 2 | |
| 30 | N210124272AA | PLATE | 2 | |
| 31 | XSS25+6VW | SCREW | Cross recessed Countersunk head machine screw M2.5X6-A2-70 | 4 |

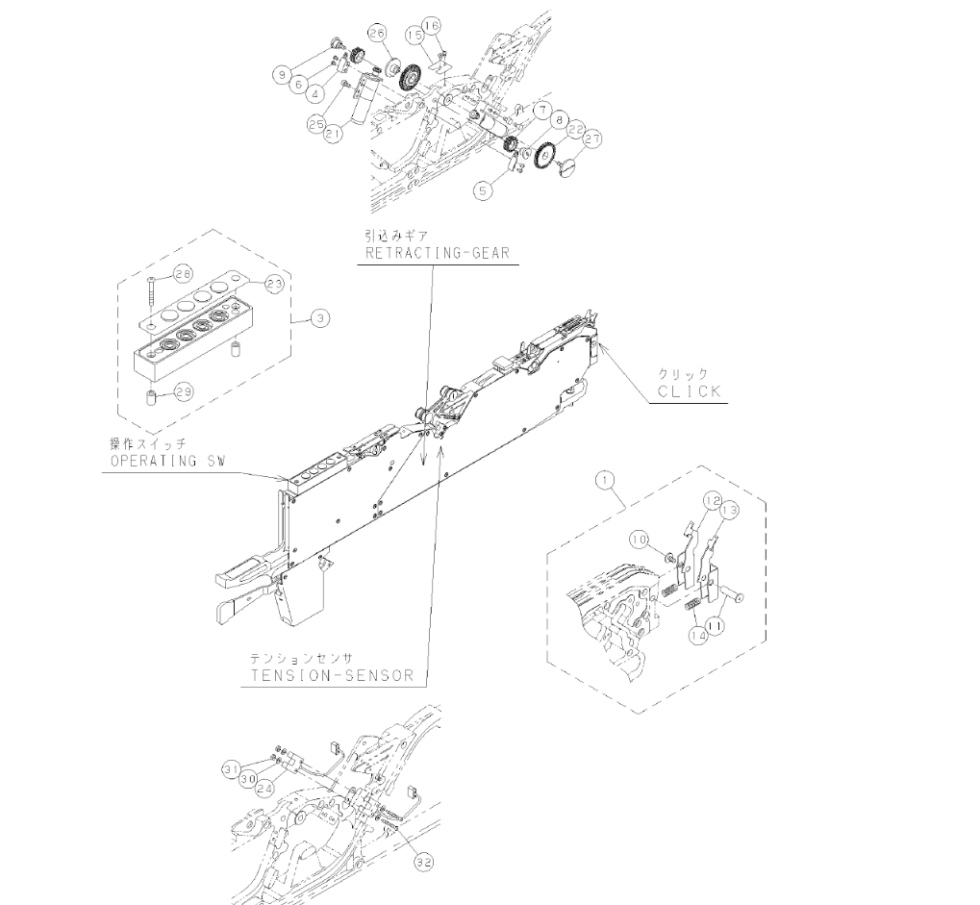

| PARTS LAYOUT | Kit No. | KXFW1KS5A00 | Section No. | |
|---|---|---|---|---|
| Kit Name | Tape Feeder; 8 mm Double; Splice sensing; Type A | 1-B | ||
| Ref No | Part No. | Part Name | Remarks | Q'ty |
| 1 | KXFW1KWA0 | CLICK | 1 | |
| 3 | N610033140AA | OPERATING-SW | 1 | |
| 4 | N210116210AA | COMB | 1 | |
| 5 | N210116211AA | COMB | 1 | |
| 6 | XSN25+3VW | SCREW | Cross recessed Pan head machine screw M2.5X3-A2-70 | 4 |
| 7 | N210047118AB | GEAR | 2 | |
| 8 | KXFA1PS9A00 | PIN | 1 | |
| 9 | KXFA1L0AA00 | PIN | 1 | |
| 10 | KXFA1KAAA00 | PIN | 1 | |
| 11 | KXFA1KBAA00 | PIN | 1 | |
| 12 | N210109639AA | CLICK | 1 | |
| 13 | N210109640AA | CLICK | 1 | |
| 14 | KXF0DRSAA00 | SPRING | (DA 0DRSA) | 2 |
| 15 | KXFA1PZHB01 | PLATE | 1 | |
| 16 | XSN25+4VW | SCREW | Cross recessed Pan head machine screw M2.5X3-A2-70 | 2 |
| 21 | N510043589AA | RETRACTING-MOTOR | 2 | |
| 22 | N210050452AA | GEAR | 2 | |
| 23 | KXF0DWTKA00 | SEAL | (DA KXF0DWTKA00) | 1 |
| 24 | N510037012AA | SENSOR | PM-U24-M4 | 2 |
| 25 | N510017337AA | BOLT | Hexagon socket head cap screw M3X6-10.9 A2J (Trivalent) | 4 |
| 26 | KXFA1KLAA00 | PIN | 1 | |
| 27 | KXFA1KEAA00 | PIN | 1 | |
| 28 | N510018959AA | SCREW | Cross recessed Pan head machine screw M2.5X18-4.8 A2J (Trivalent) | 2 |
| 29 | KXF08WXAA00 | SPACER | C-2607 | 2 |
| 30 | N510018477AA | WASHER | Small round-plain washer 2 10H A2J (Trivalent) | 4 |
| 31 | XNG2BVW | NUT | Hexagon nut Type-2 Best class M2-6H-A2-70 | 2 |
| 32 | N510002402AA | SCREW | SUS M2×16+TB2430 | 2 |

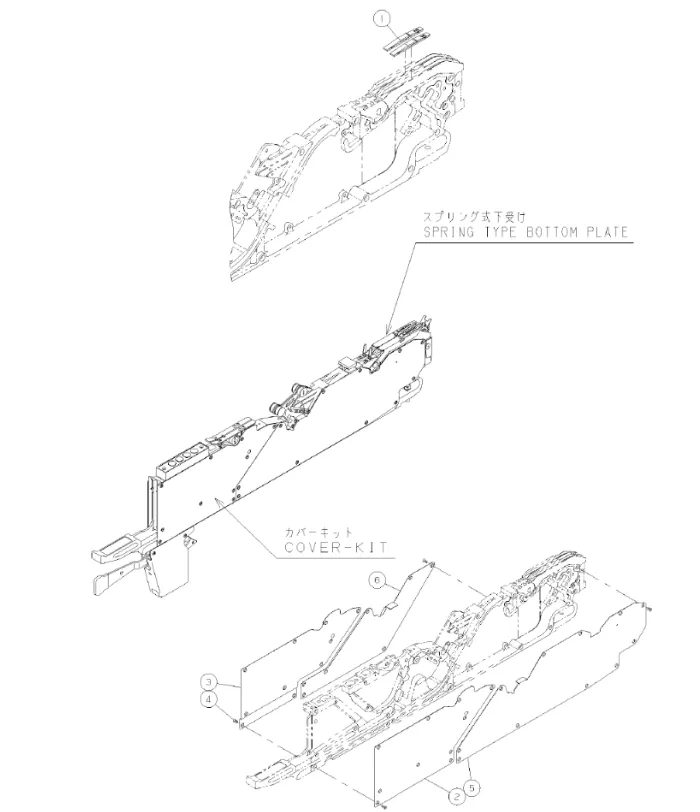

| PARTS LAYOUT | Kit No. | KXFW1KS5A00 | Section No. | |
|---|---|---|---|---|
| Kit Name | Tape Feeder; 8 mm Double; Splice sensing; Type A | 1-C | ||
| Ref No | Part No. | Part Name | Remarks | Q'ty |
| 1 | N610014970AE | Spring type bottom plate | 2 | |
| 2 | KXFA1MPBA01 | COVER | 1 | |
| 3 | N210109641AA | COVER | 1 | |
| 4 | XSS25+6VW | SCREW | Cross recessed Pan head machine screw M2.5X3-A2-70 | 38 |
| 5 | KXFA1PQ9A00 | COVER | 1 | |
| 6 | KXFA1PR0A00 | COVER | 1 | |
