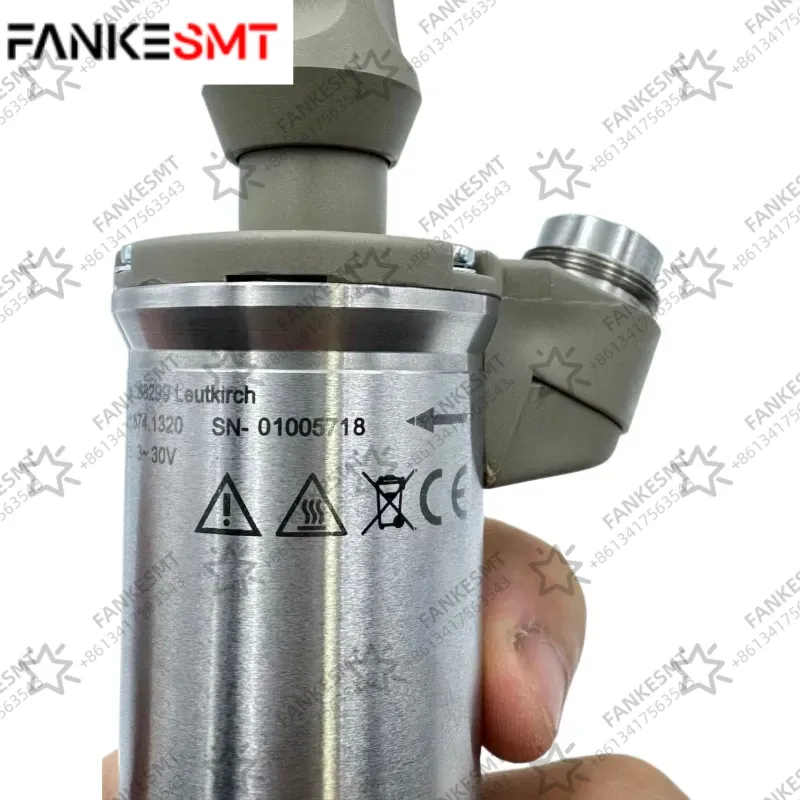

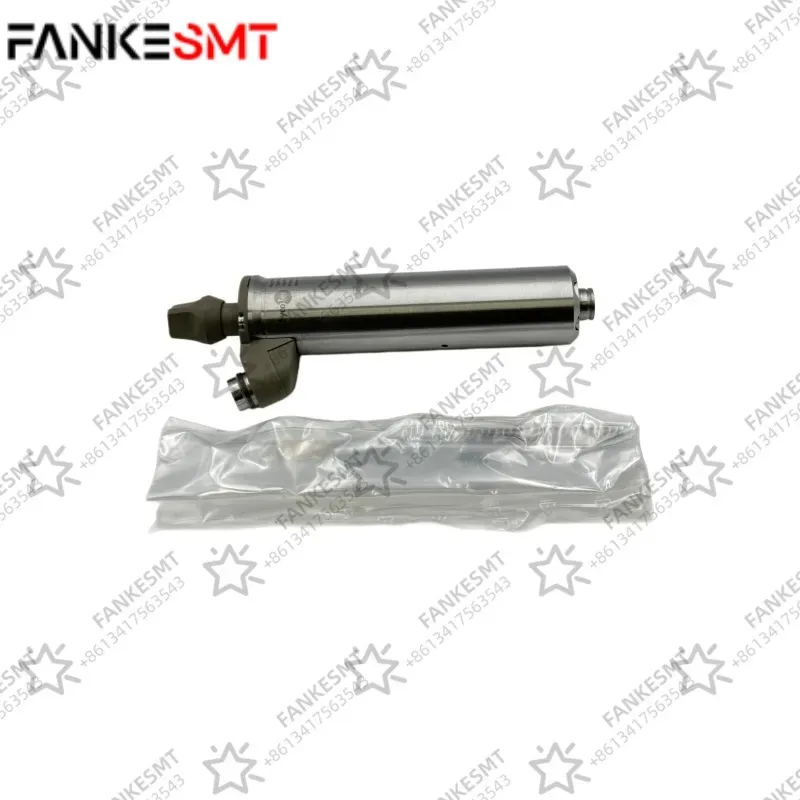

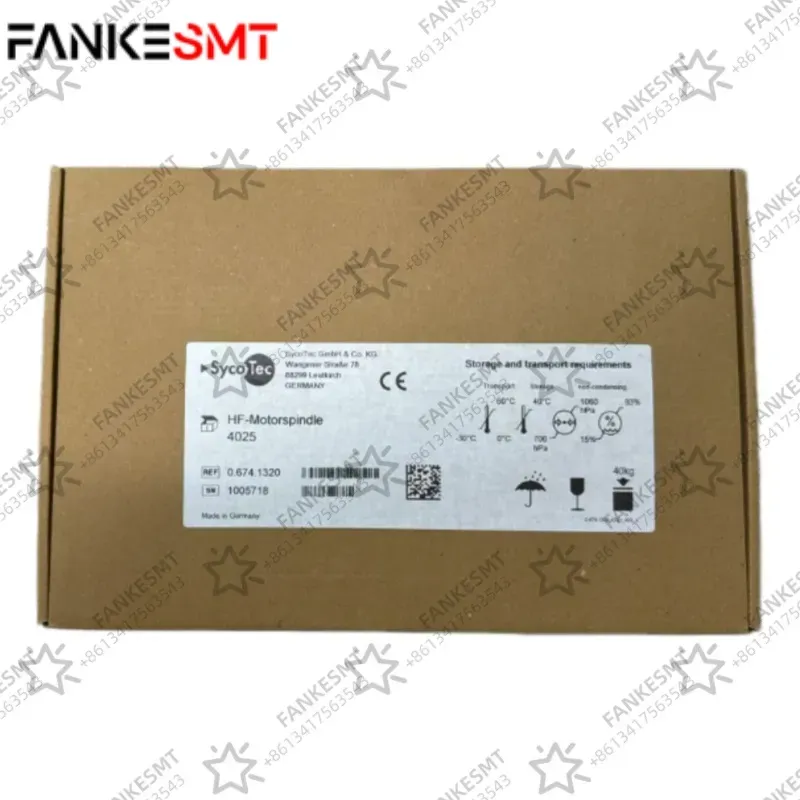

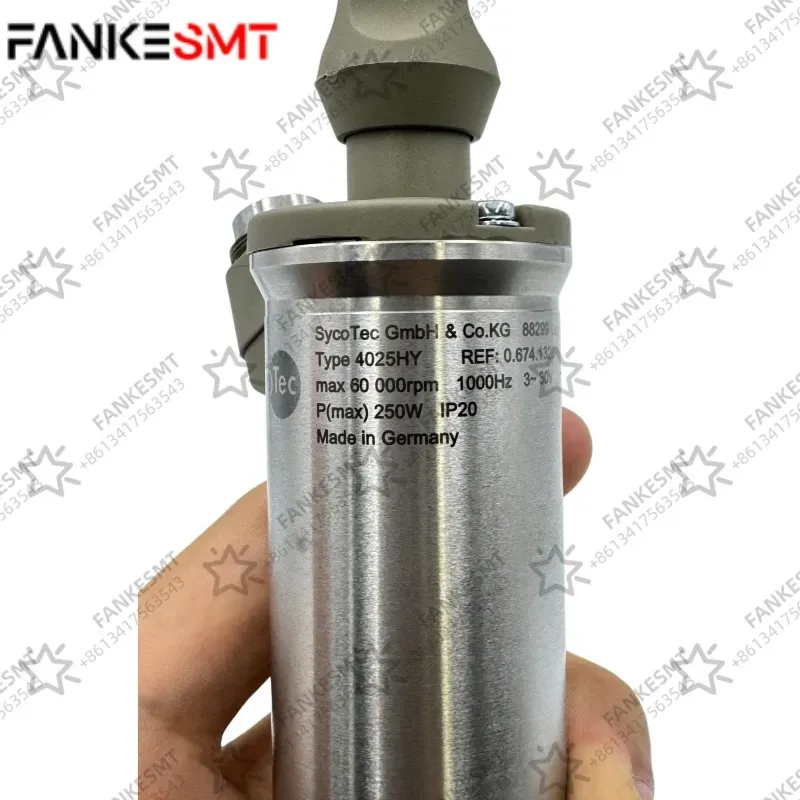

Sycotec Spindle 4025HY
Specification Data
| Brand | Sycotec |
| Part Number | 0.674.1320 |
| Description | Motorspindle |
| For | Router Machines |
Assured Quality
- Cost-Saving, Competitive Price
- Minimum Order Quantity: No Limit
- Fast Delivery: 5-7 Days
- Safety Delivery: Well protected package
- Services: 7/24 Guaranteed After-sales Service Service, Products Are Only The Beginning Of A Service, Not The End, Committed To Customer Satisfaction
- All Product Will Be Checked Carefully Before Shipment
- Providing Professional SMT One-stop Solutions
| Parameter | Specification |
|---|---|
| Applications | Drilling, Milling, Grinding, Engraving |
| Speed range | 5,000–60,000 rpm |
| Output power | S1: 250 W, max. 250 W |
| Housing diameter | 33 mm |
| Motor system | 3 Phase asynchronous motor |
| Frequency | 83–1,000 Hz |
| Voltage | 30 V |
| Current | max. 8 A |
| Torque | S1: 4.5 Ncm, max. 4.5 Ncm |
| Motor protection | - |
| Weight | 0.6 kg |
| Bearing system | 2 × Hybrid, 1 × Steel, lifetime lubricat. |
| Run-out (taper) | ≤ 1.5 µm |
| Chuck clamping range | Ø 0.3–4.0 mm (incl. 1/8") |
| Chuck type | C2 |
| Tool change | Manual (clamping knob) |
| Cooling system | Self-ventilation fan*, Cooling via clamping bracket |
| Protection category | IP 20 |
| Protected against dirt and cooling lubricant | No |
| Housing material | Stainless steel |
| Cable/plug type | 3PM |
| Inverter recommendation | e@syDrive® 4310(IP00), 4320(IP00), TV4504, 4624 |
